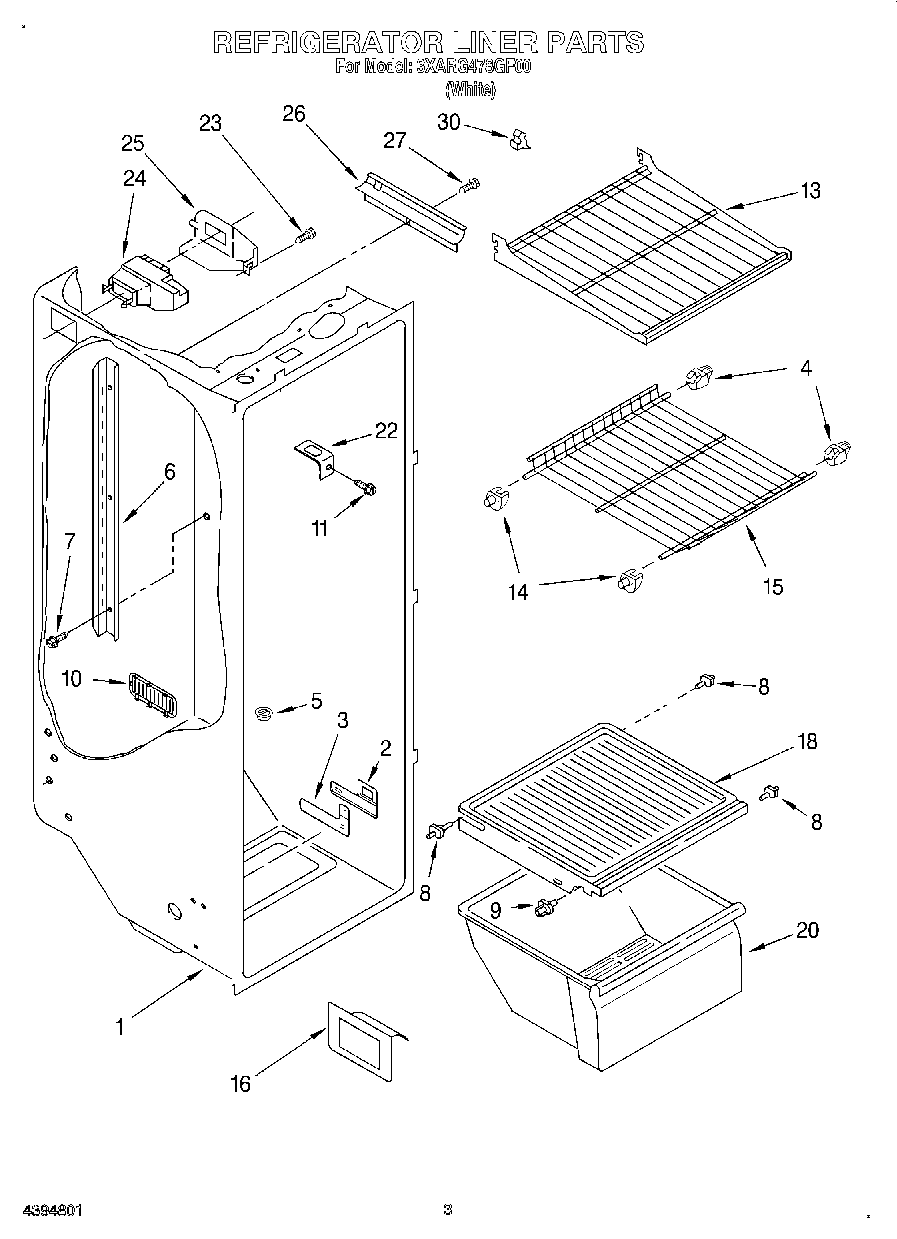

3XARG478GF00 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Saddle Stud (Right Side)
5	2171846 Whirlpool Refrigerator Release Valve
6	Ladder, Shelf
7	WP488729 Whirlpool Refrigerator Door Screw
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	4388539 Whirlpool Refrigerator Shelf Stud
10	Louver
11	WP488488 Whirlpool Refrigerator Screw
13	Shelf, Cantilever
14	Saddle Stud (Left Side)
15	Shelf, Wire
16	2179350 Whirlpool Refrigerator Deflector
18	W10508993 Whirlpool Refrigerator Cover Pan
20	Meat Pan
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP489478 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	Cover, Conduit
27	W10759522 Whirlpool Screw
30	2215823 Whirlpool Refrigerator Clip
