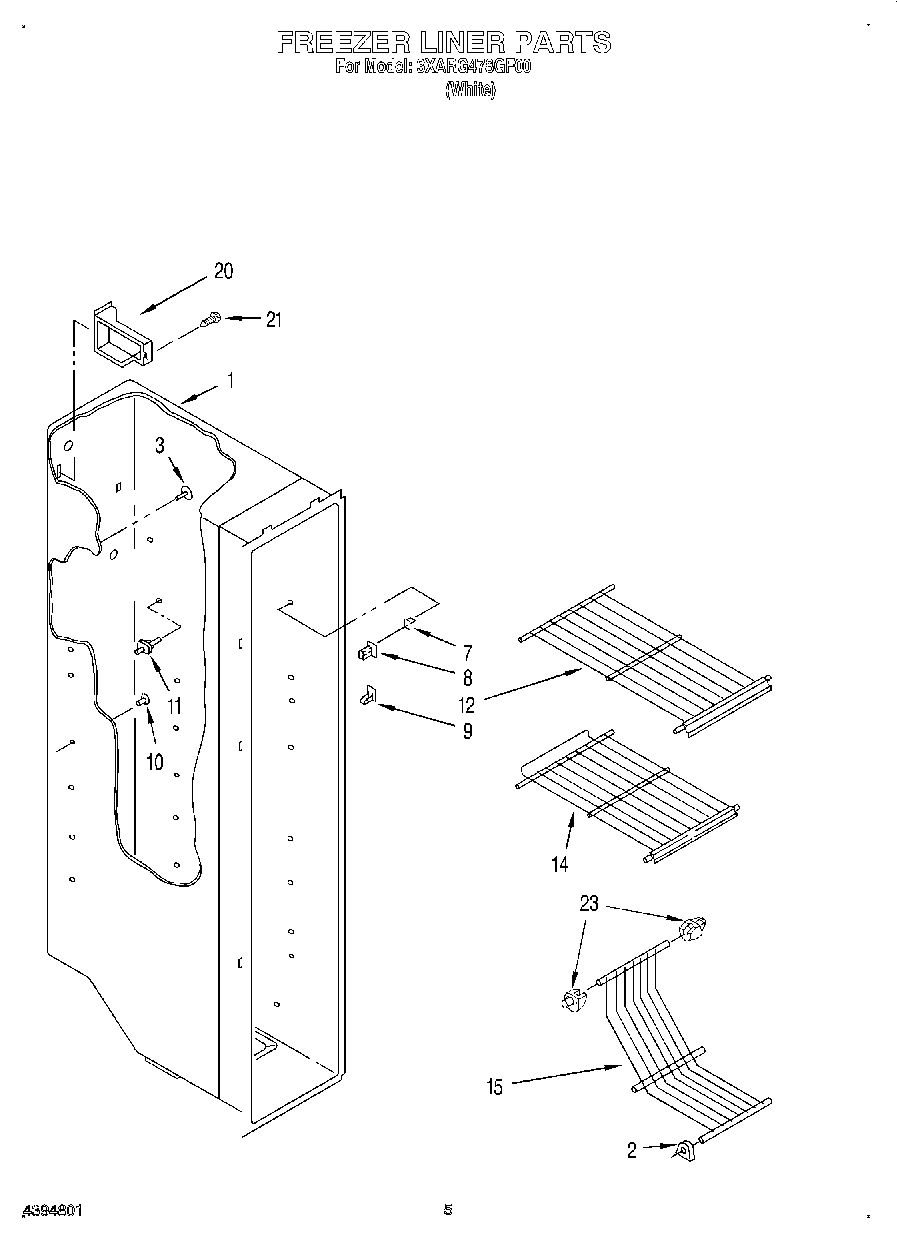

3XARG478GF00 03 – FREEZER LINER

Written by

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet, Trivet (4)
3	WP941839 Whirlpool Refrigerator Button Plug
7	Stud, Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Grommet
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf
14	Shelf (1)
14	Shelf (2)
15	Trivet
20	Cover, Wiring
21	SCREW
23	819091 Whirlpool Refrigerator Shelf Stud
