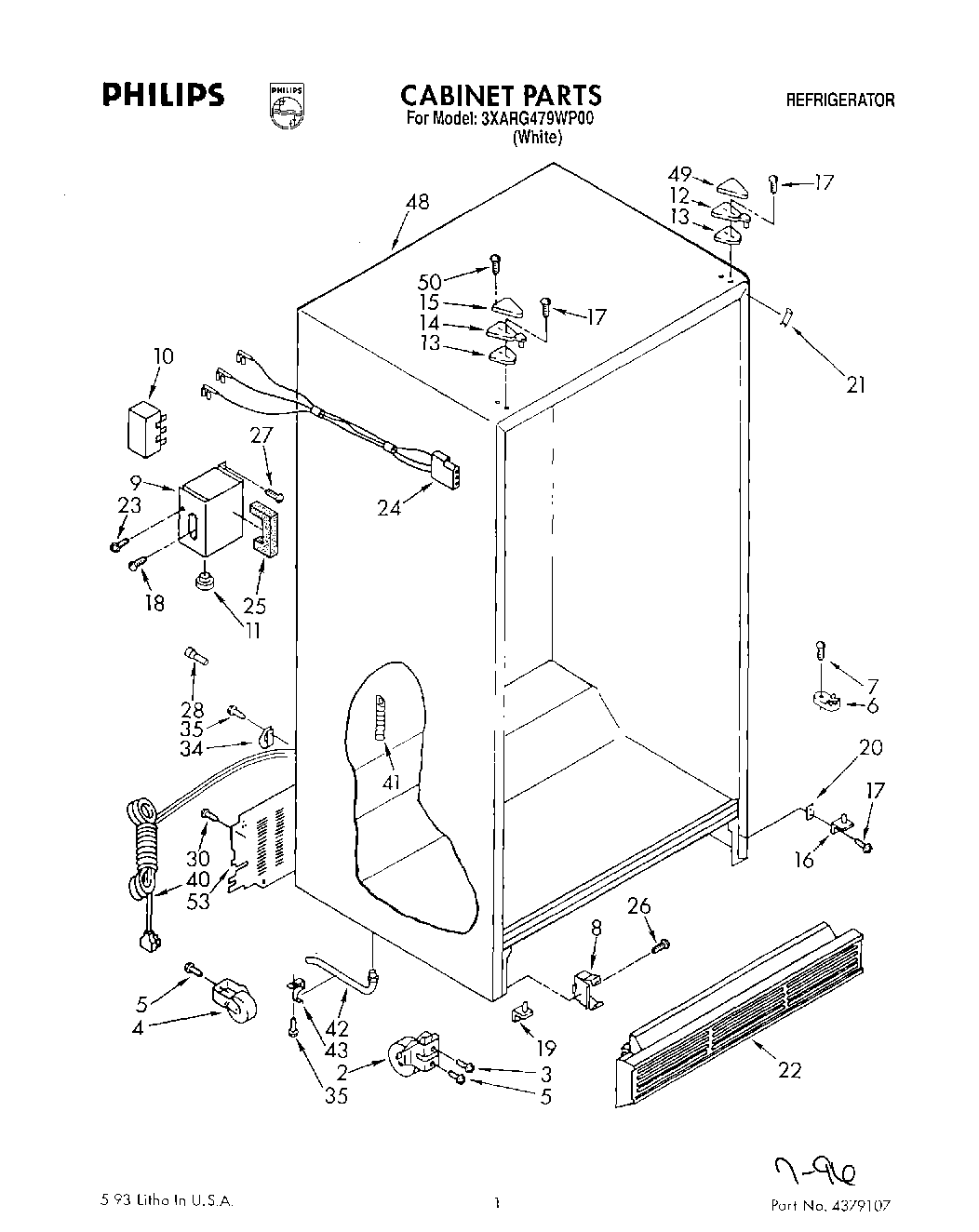

3XARG479WP00 01 – CABINET

Products

Position	Product
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	WPW10329686 Whirlpool Door Cam Black
7	WP489399 Whirlpool Refrigerator Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	Enclosure, Term.
10	Terminal Block
11	Bushing
12	Hinge, Top
13	Shim, Hinge Top
14	Hinge, Top (L.H.)
15	WP1129262 Whirlpool Refrigerator Cover
16	Hinge Bottom (R.H)
17	WP999367 Whirlpool Refrigerator Screw
18	WPW10272364 Whirlpool Refrigerator Screw
19	Hinge Bottom (L.H)
20	Shim, Bottom Hinge
21	Filler, Wrapper (White)
22	Grille (White)
23	Screw
24	Wiring Assembly, Terminal Block
25	Gasket
26	WP489478 Whirlpool Refrigerator Screw
27	WP250830 Whirlpool Refrigerator Screw
28	Tube, Water Inlet
34	489348 Whirlpool Refrigerator Tube Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
50	Screw
53	Cover, Unit
