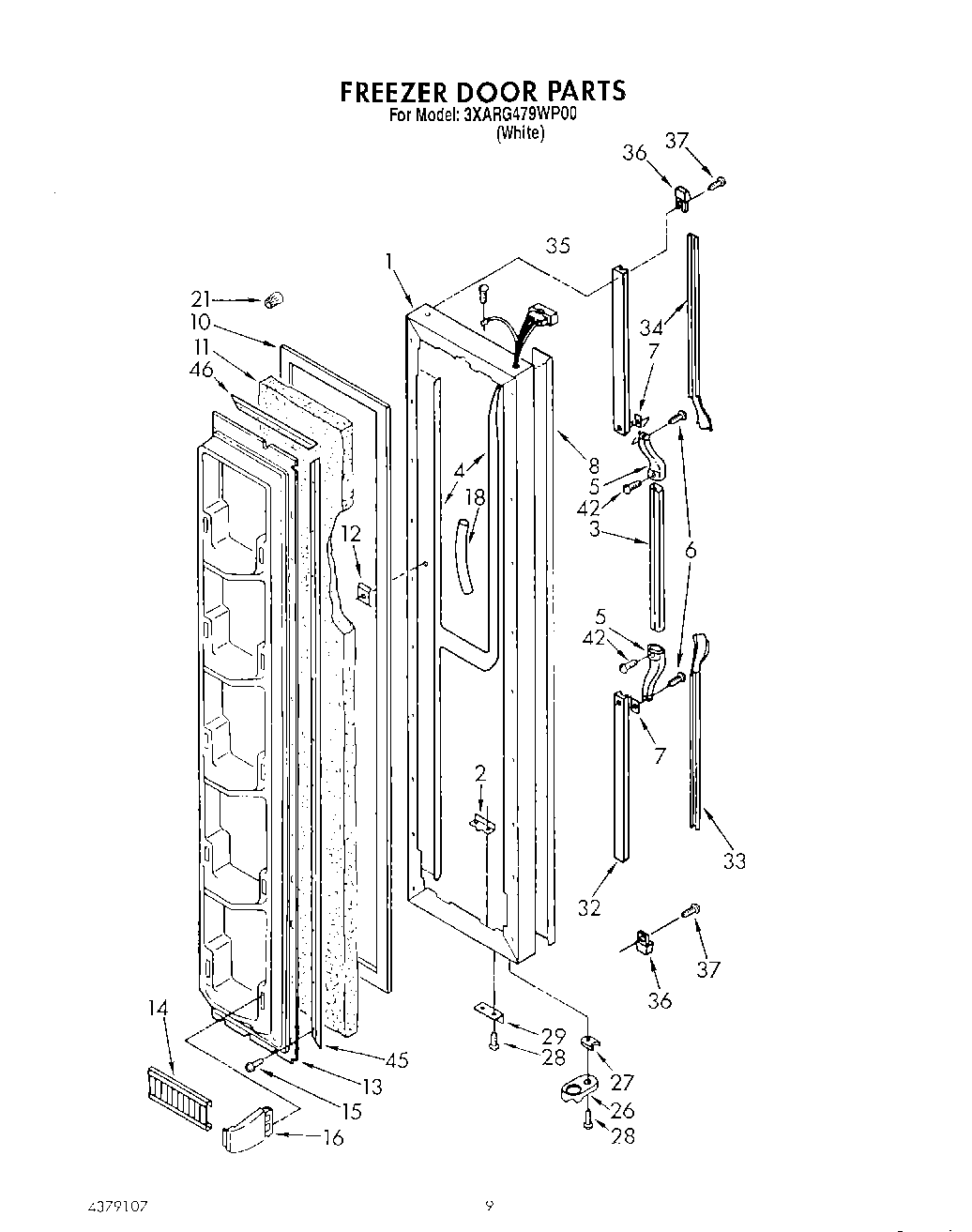

3XARG479WP00 05 – FREEZER DOORadmin2025-04-26T12:25:01+00:003XARG479WP00 05 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Also Order Item 11) |
| 2 | Tap Plate |
| 3 | Handle, Center (White) |
| 4 | Heater, Door |
| 5 | End Cap, Center Handle |
| 7 | Shim |
| 8 | Trim, Door |
| 10 | 2188405A Whirlpool Refrigerator Door Gasket |
| 11 | WPL 876029 |
| 12 | Screw Anchor (2) |
| 13 | Panel, Interior Door |
| 14 | Trim, Door Shelf |
| 16 | WP2196100 Whirlpool Shelf Retainer Bar Support |
| 18 | Tube, Door Wiring |
| 21 | Wire Connector |
| 26 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 27 | WP1104787 Whirlpool Refrigerator Shim |
| 28 | WP489069 Whirlpool Compactor Screw |
| 29 | Bracket, Door Stop |
| 32 | Retainer, Insert (Bottom) |
| 33 | Insert, Handle (White) |
| 34 | Insert, Handle |
| 35 | Retainer, Insert |
| 36 | End Cap (2) |
| 37 | Screw |
| 38 | Housing Plug |
| 42 | Screw |
| 43 | WP488234 Whirlpool Air Conditioner Screw |
| 45 | Retainer, Gasket |
| 46 | Retainer, Gasket |
