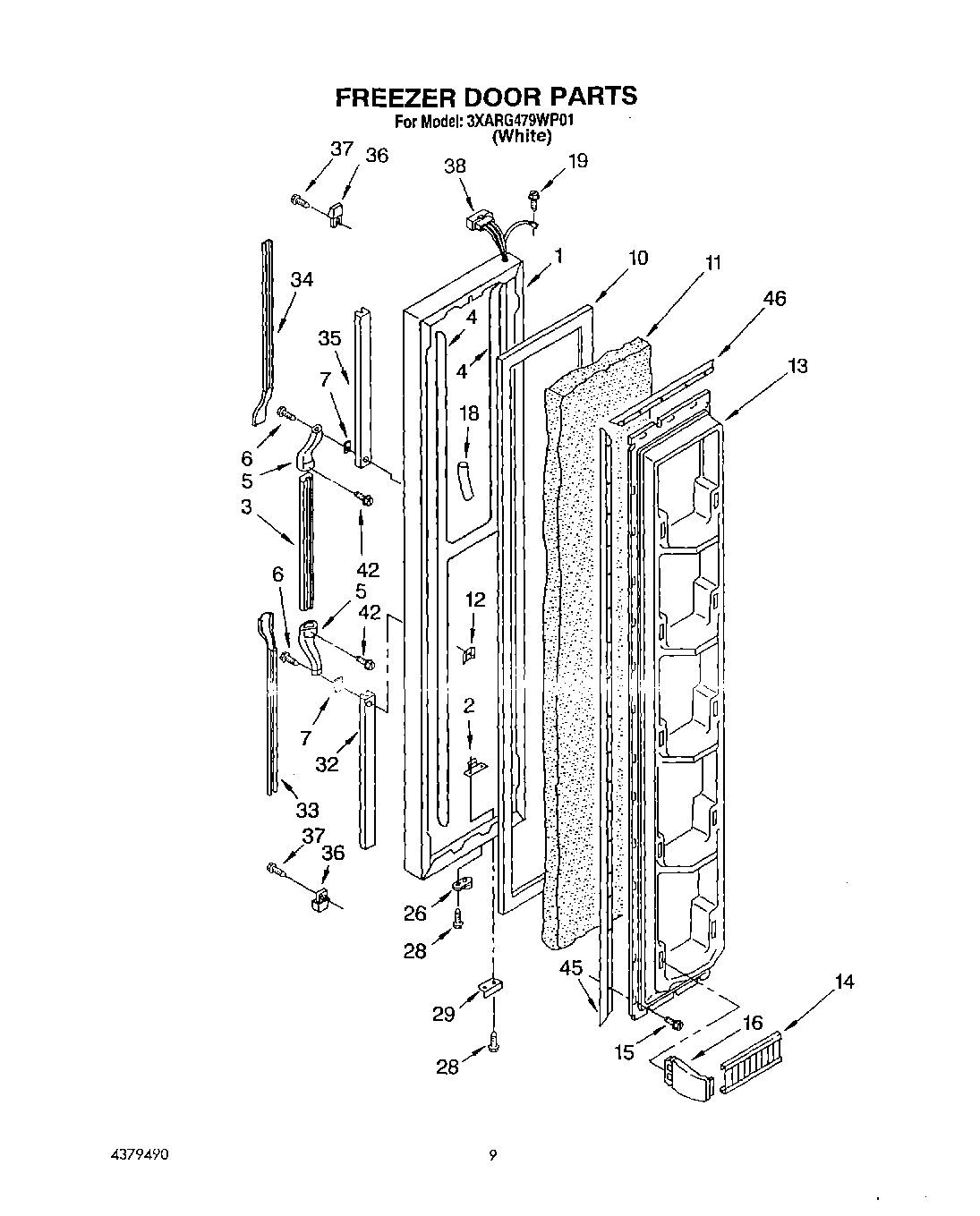

3XARG479WP01 05 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (White)
2	Tap, Plate
3	Handle, Center (White)
4	Heater, Door
5	End Cap, Center Handle
7	Shim
8	Trim, Door
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Trim, Door Shelf
15	WP489069 Whirlpool Compactor Screw
16	WP2196100 Whirlpool Shelf Retainer Bar Support
18	Tube, Door Wiring
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
28	WP999367 Whirlpool Refrigerator Screw
29	Bracket, Door Stop
32	Retainer, Insert (Bottom)
33	Insert, Handle (White)
34	Insert, Handle
35	Retainer, Insert
36	End Cap (2)
37	Screw
38	Housing Plug
42	Screw
43	WP488234 Whirlpool Air Conditioner Screw
45	Retainer, Gasket
46	Retainer, Gasket
