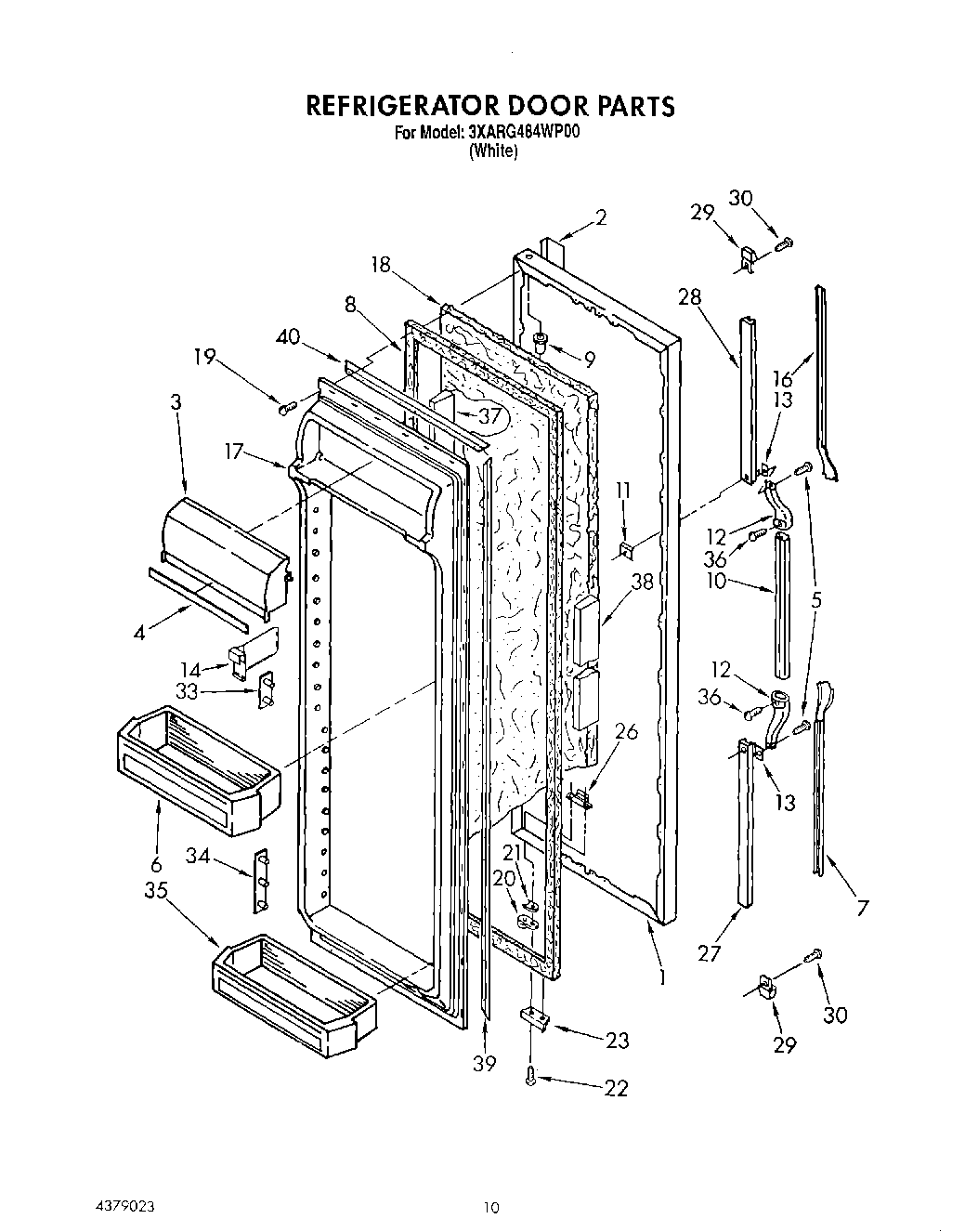

3XARG484WP00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 18)
2	Trim, Door
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (2)
7	Insert, Handle (White)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle, Center (White)
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
14	Divider (3)
16	Insert, Handle
17	Panel, Interior Door
18	WPL 876029
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
33	Pin Plate (6)
34	Pin Plate (8)
35	Shelf Bin (2)
36	Screw
37	Door Dike, Hinge Side
38	Door Dike, Handle Side
39	Retainer, Gasket
40	Gasket Retainer, Top & Bottom
