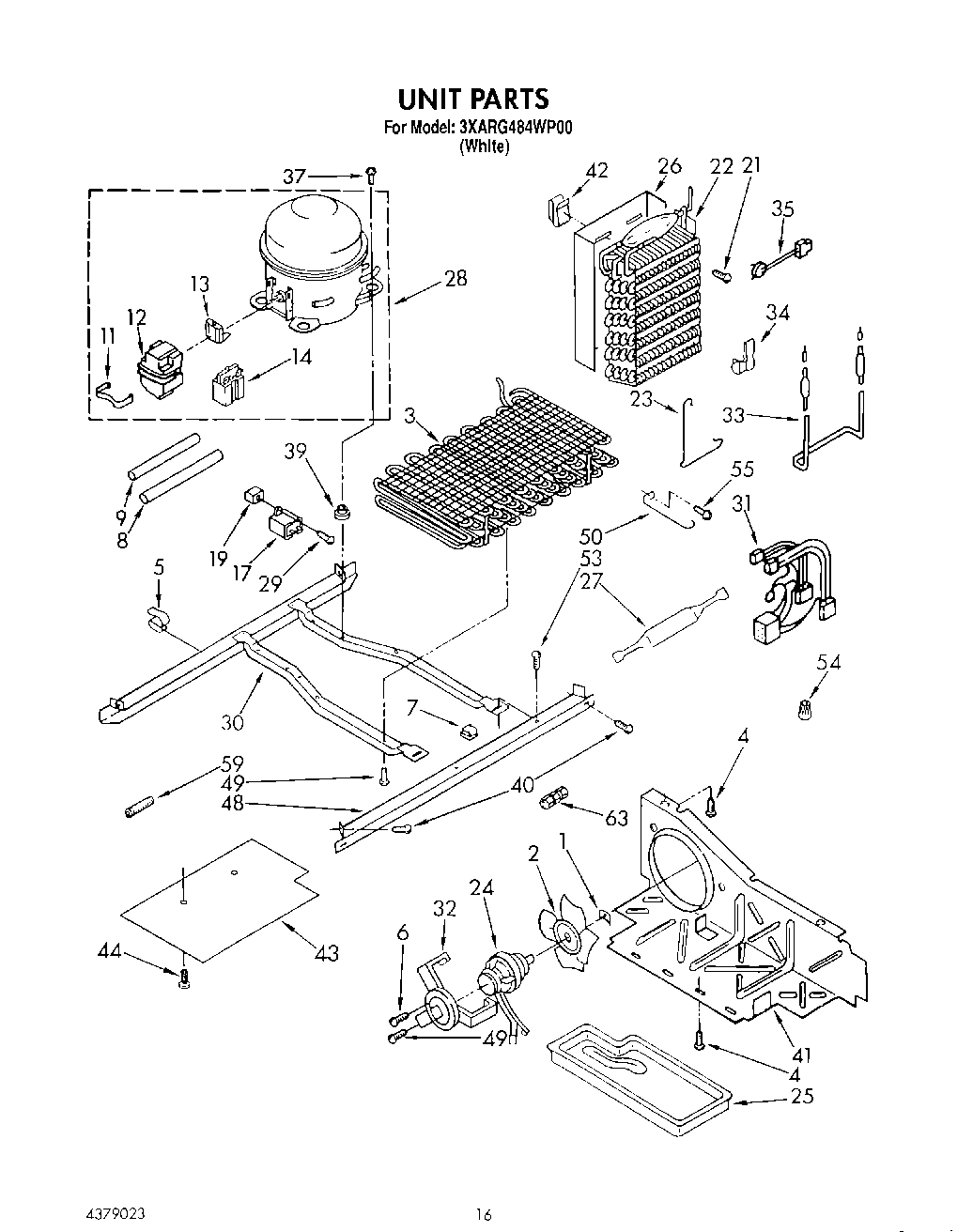

3XARG484WP00 10 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire
6681390 Whirlpool Refrigerator Screw
7Clip, Tube (3)
8SLEEVE
9WP2158826 Whirlpool Refrigerator Dampener
11Strap
12Cover
13Overload
14Relay (See Overload)
17Capacitor
19Screw Grommet
21WP489478 Whirlpool Refrigerator Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clamp
248201703 Whirlpool Refrigerator Condenser Motor
25Tray, Evaporator
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 11, (Also Order)
28876765 Whirlpool Primary Mounting Kit Refrigerator
29W11693756 Whirlpool Screw Assembly
302304903 Whirlpool Refrigerator Frame
31Unit, Harness
32Fan, Motor Bracket
33Heater, Defrost
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37Screw
39Grommet (Production)
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Cover-Unit Btm.
44489396 Whirlpool Refrigerator Clip
48Unit Mounting Rail
49Screw, 8 x 3/8
501105612 Whirlpool Fan Guard
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55WPW10141625 Whirlpool Refrigerator Screw Assembly
59Spring-Tube
63WP4211117 Whirlpool Refrigerator Connector
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63978026 Whirlpool Refrigerator Primary Valve
63876764 Whirlpool Refrigerator Primary Valve
63VALVE, ACCESS (5/8“)
63VALVE, ACCESS (1/2“)
63WP978025 Whirlpool Refrigerator Valve
