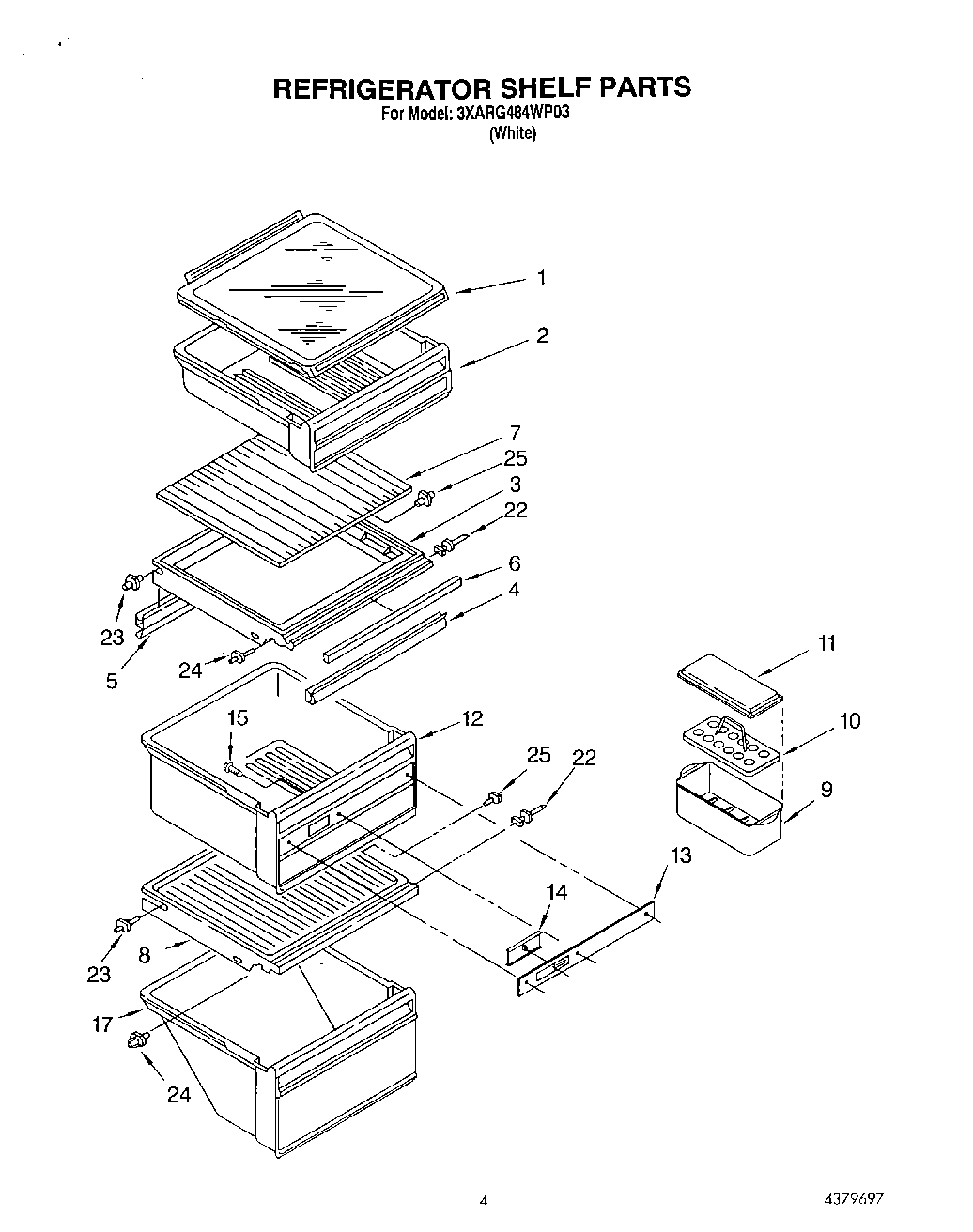

3XARG484WP03 03 – REFRIGERATOR SHELF

3XARG484WP03 03 – REFRIGERATOR SHELF

Written by

in

3XARG484WP03 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Glass Sliding (3)
2Snack Bin
3WP1126289 Whirlpool Refrigerator Cover
4Gasket, Crisper (Front)
5Gasket, Crisper (Rear)
6Trim, Crisper Cover
7Glass, Crisper Cover
8WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
9W10136387A Whirlpool Refrigerator Egg Container
10WP2177817 Whirlpool Refrigerator Egg Container
11Cover
12Pan, Crisper
13Front, Crisper Pan
14Slide, Crisper
15Screw (3)
17Meat Pan
23Stud (2)
24WP2149540 Whirlpool Shelf Support
254388538 Whirlpool Refrigerator Stud Shelf Kit (White)
