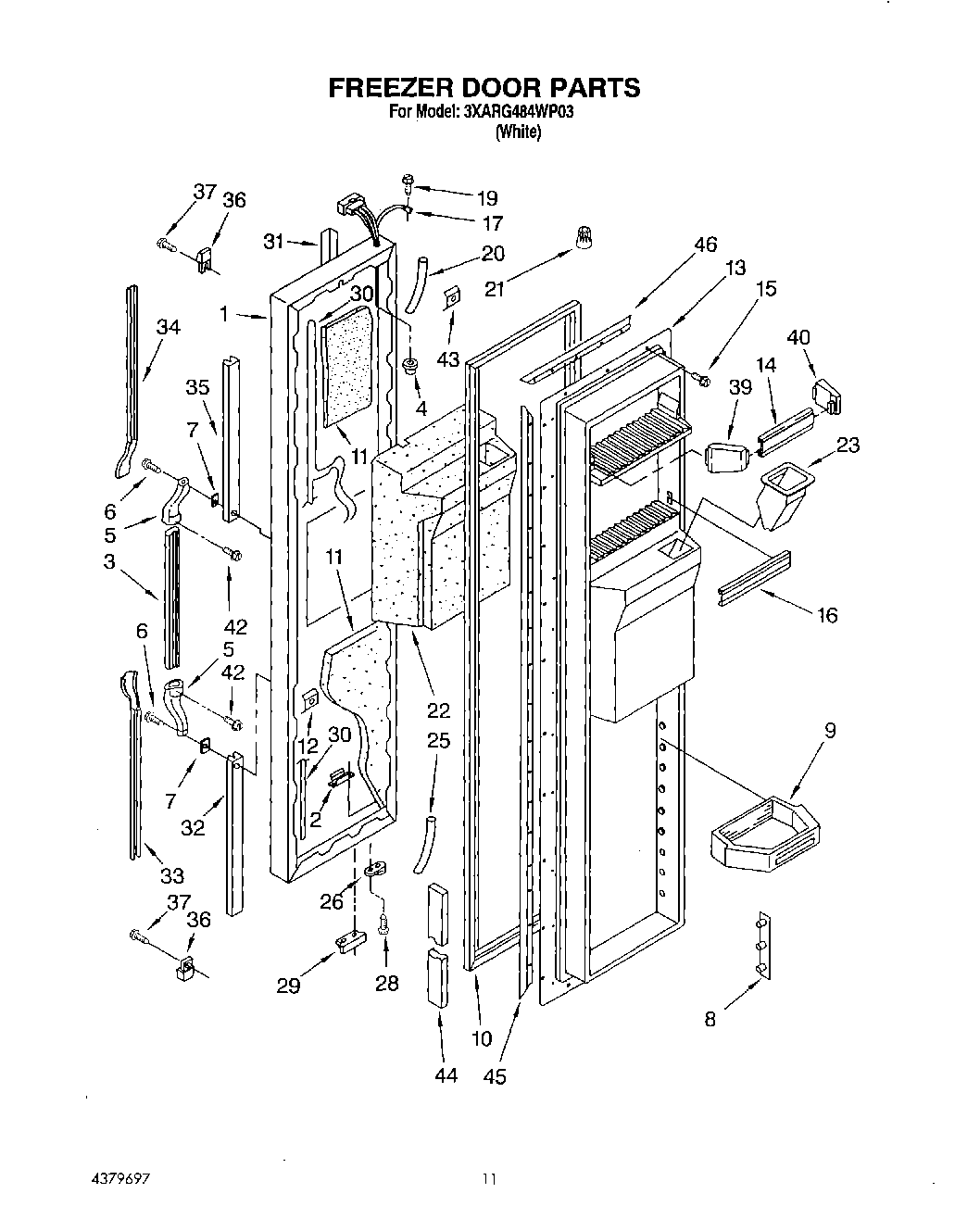

3XARG484WP03 08 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Also Order Item 11)
2	Tap, Plate
3	Handle, Center (White)
4	Seal, Hinge Pin
5	End Cap, Center Handle
7	Shim
8	Pin Plate (8)
9	Shelf Bin (3)
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Trim, Door Shelf
15	WP489069 Whirlpool Compactor Screw
16	Trim, Door Shelf
17	Harness, Door
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
21	Wire Connector
22	Insulation, Dispenser
23	Chute, Ice
25	Tube, Door Wiring
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
28	WP999367 Whirlpool Refrigerator Screw
29	Bracket, Door Stop
30	Heater, Door
31	Trim, Door
32	Retainer, Insert (Bottom)
33	Insert, Handle (White)
34	Insert, Handle
35	Retainer, Insert
36	End Cap (2)
37	Screw
39	End Cap, Trim (4)
40	End Cap, Trim (4)
42	Screw
43	WP939101 Whirlpool Refrigerator Plate
44	Door Dike (2)
45	Retainer, Gasket
46	Retainer, Gasket
