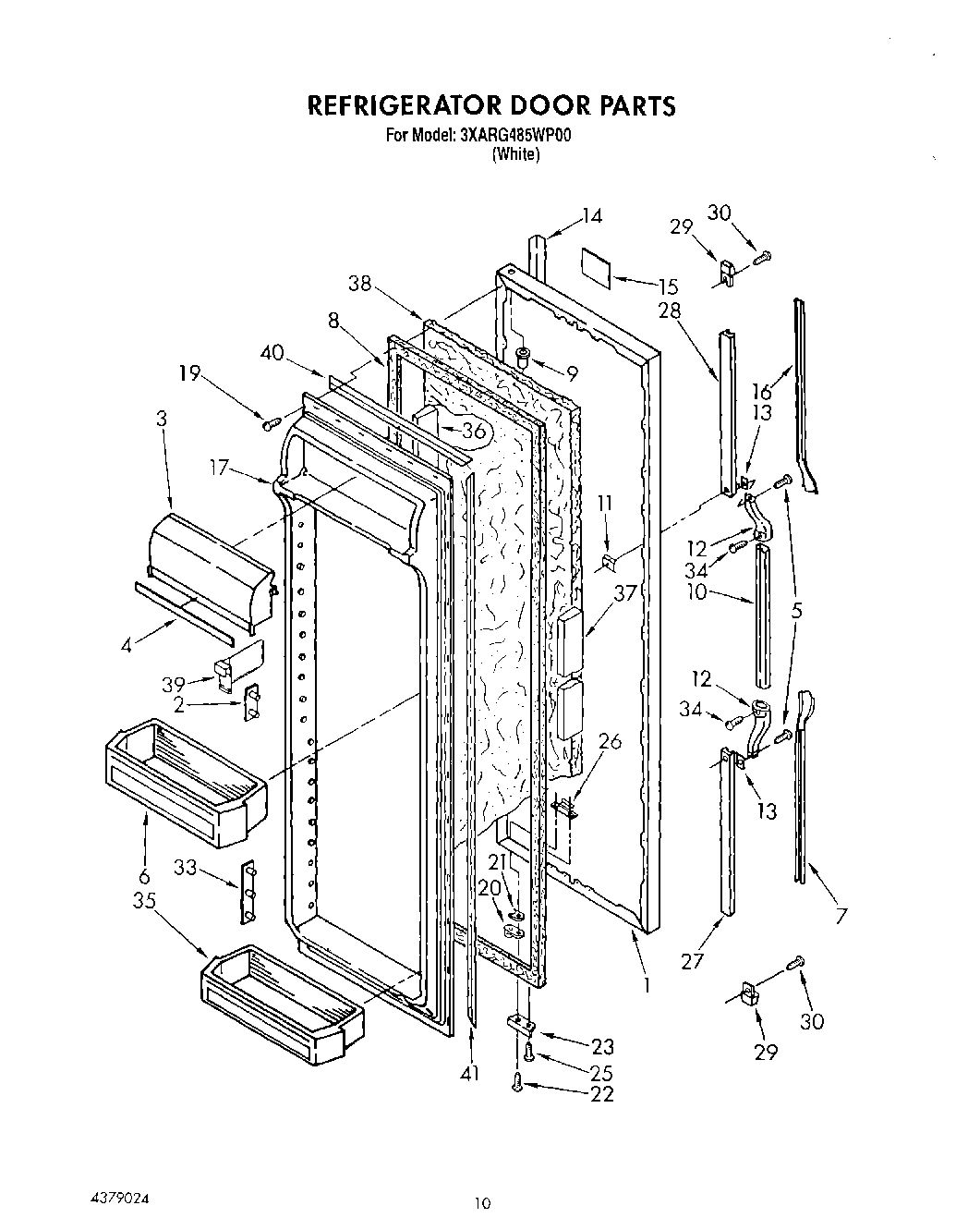

3XARG485WP00 06 – REFRIGERATOR DOOR

3XARG485WP00 06 – REFRIGERATOR DOOR

Written by

in

3XARG485WP00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (White)
2Pin Plate (6)
3Door, Compartment
4Trim, Compartment Door
6Shelf Bin (2)
7Insert, Handle (White)
8Door Gasket, Magnetic
9Cap, Hinge Sleeve (2)
10Handle, Center (White)
11Screw Anchor (2)
12End Cap, Center Handle
13Shim
14Trim, Door
15Nameplate
16Insert, Handle (White)
17Panel, Interior Door
204318165 Whirlpool Refrigerator Door Closure Cam Kit
21WP1104787 Whirlpool Refrigerator Shim
23Bracket, Door Stop
25WP489069 Whirlpool Compactor Screw
26Tap Plate
27Retainer, Insert (Bottom)
28Retainer, Insert
29End Cap (2)
30Screw
33Pin Plate (8)
34Screw
35Shelf Bin (2)
36Door Dike, Hinge Side
37Door Dike, Handle Side
38WPL 876029
39Divider (3)
40Gasket Retainer, Top & Bottom
41Trim Kit
41Trimless Black Decor Panel
41Black Handle Insert
41Gasket Retainer, Side (2)
41Woodgrain Handle Insert
