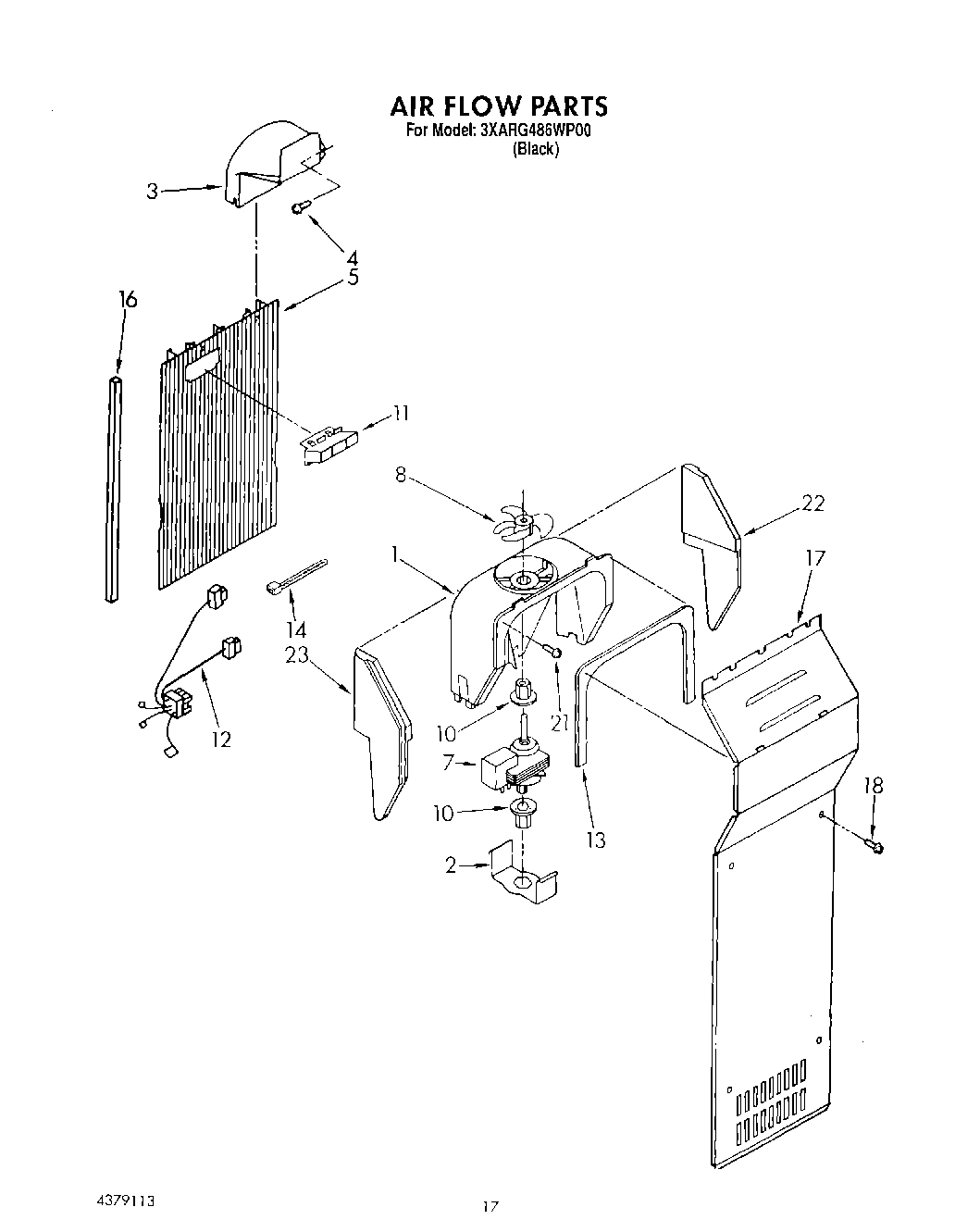

3XARG486WP00 10 – AIRFLOW

3XARG486WP00 10 – AIRFLOW

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
4WP488729 Whirlpool Refrigerator Door Screw
5Air Duct Freezer
7Fan, Motor
8WP2169142 Whirlpool Fan Blade
10Grommet, Fan (2)
112182146 Whirlpool Refrigerator Duct
12Harness, Fan Evaporator, And Heater, Bi-Metal
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
16WP2304241 Whirlpool Refrigerator Gasket
17Cover, Evaporator
18SCREW
21WP489478 Whirlpool Refrigerator Screw
224388358 Whirlpool Refrigerator Support Bracket
