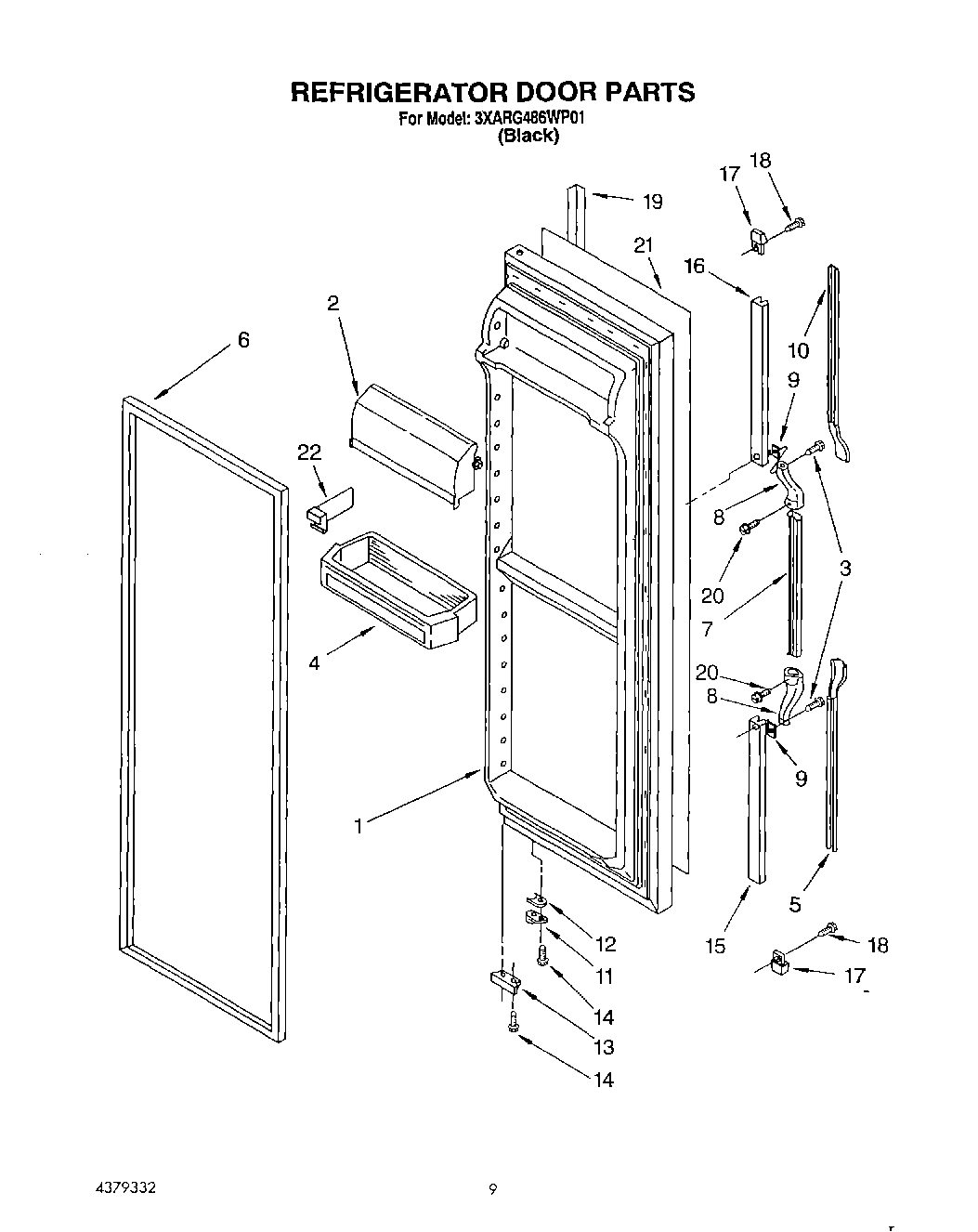

3XARG486WP01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Black)
2	WP2256101 Whirlpool Dairy Door
4	Shelf Bin (2)
5	Insert, Handle (Black)
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center
8	End Cap, Center Handle
9	Shim
10	Insert, Handle (Black)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP1104787 Whirlpool Refrigerator Shim
13	Bracket, Door Stop (Black)
14	WP489069 Whirlpool Compactor Screw
15	Retainer, Insert (Bottom)
16	Retainer, Insert
17	End Cap (2)
18	Screw
19	Trim, Door
20	Screw
21	Panel, Black Glass
22	Divider (3)
