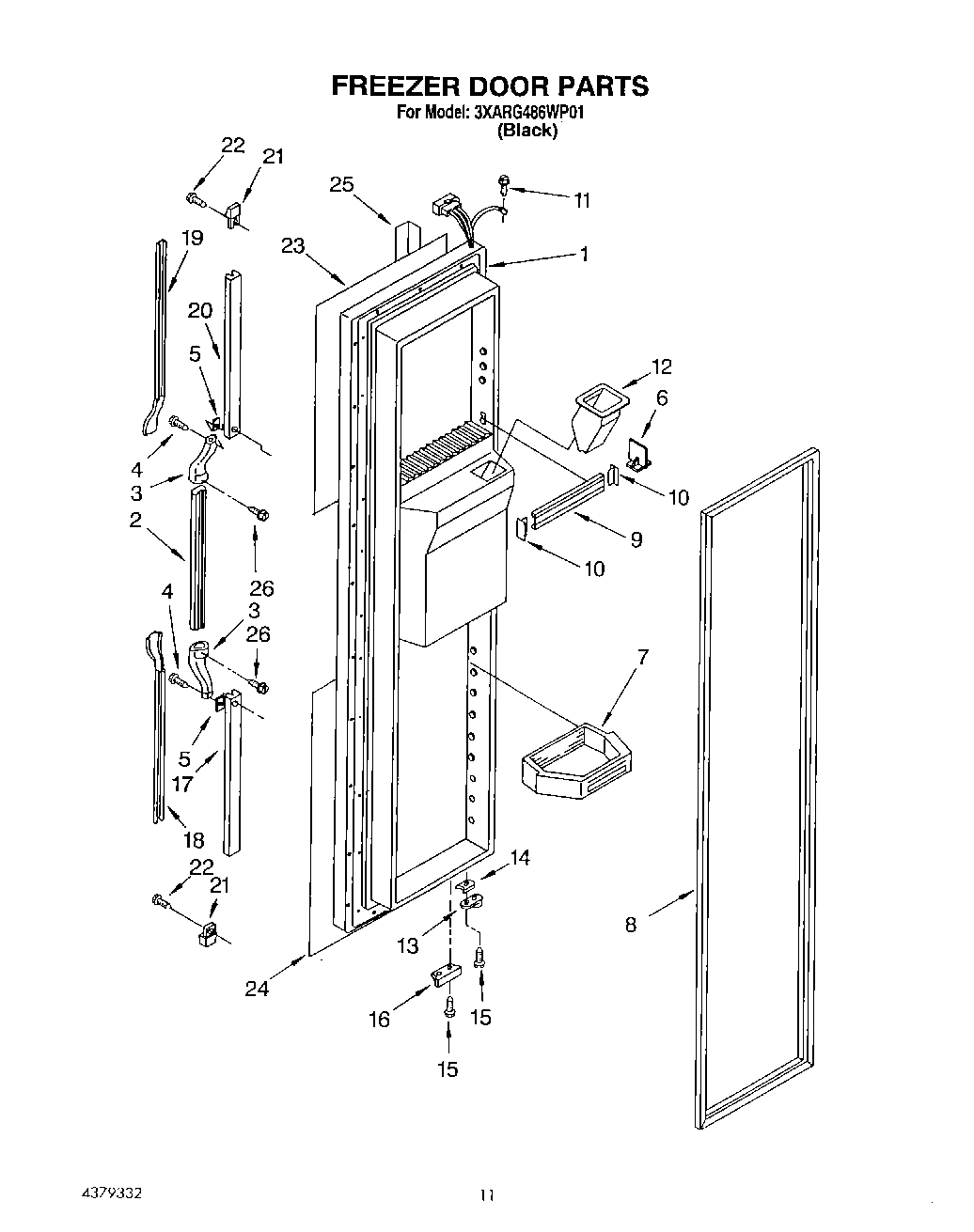

3XARG486WP01 07 – FREEZER DOOR

3XARG486WP01 07 – FREEZER DOOR

Written by

in

3XARG486WP01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle, Center
3End Cap, Center Handle
5Shim
6Divider-Door
7Shelf Bin (4)
82159074 Whirlpool Door Gasket Seal
9Trim, Door Shelf
10WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
11WP488234 Whirlpool Air Conditioner Screw
12Chute, Ice
134318165 Whirlpool Refrigerator Door Closure Cam Kit
14WP1104787 Whirlpool Refrigerator Shim
15WP489069 Whirlpool Compactor Screw
16Bracket, Door Stop (Black)
17Retainer, Insert (Bottom)
18Insert, Handle (Black)
19Insert, Handle (Black)
20Retainer, Insert
21End Cap (2)
22Screw
23Panel, Black Glass (Upper)
24Panel, Black Glass (Lower)
25Trim, Door
26Screw
