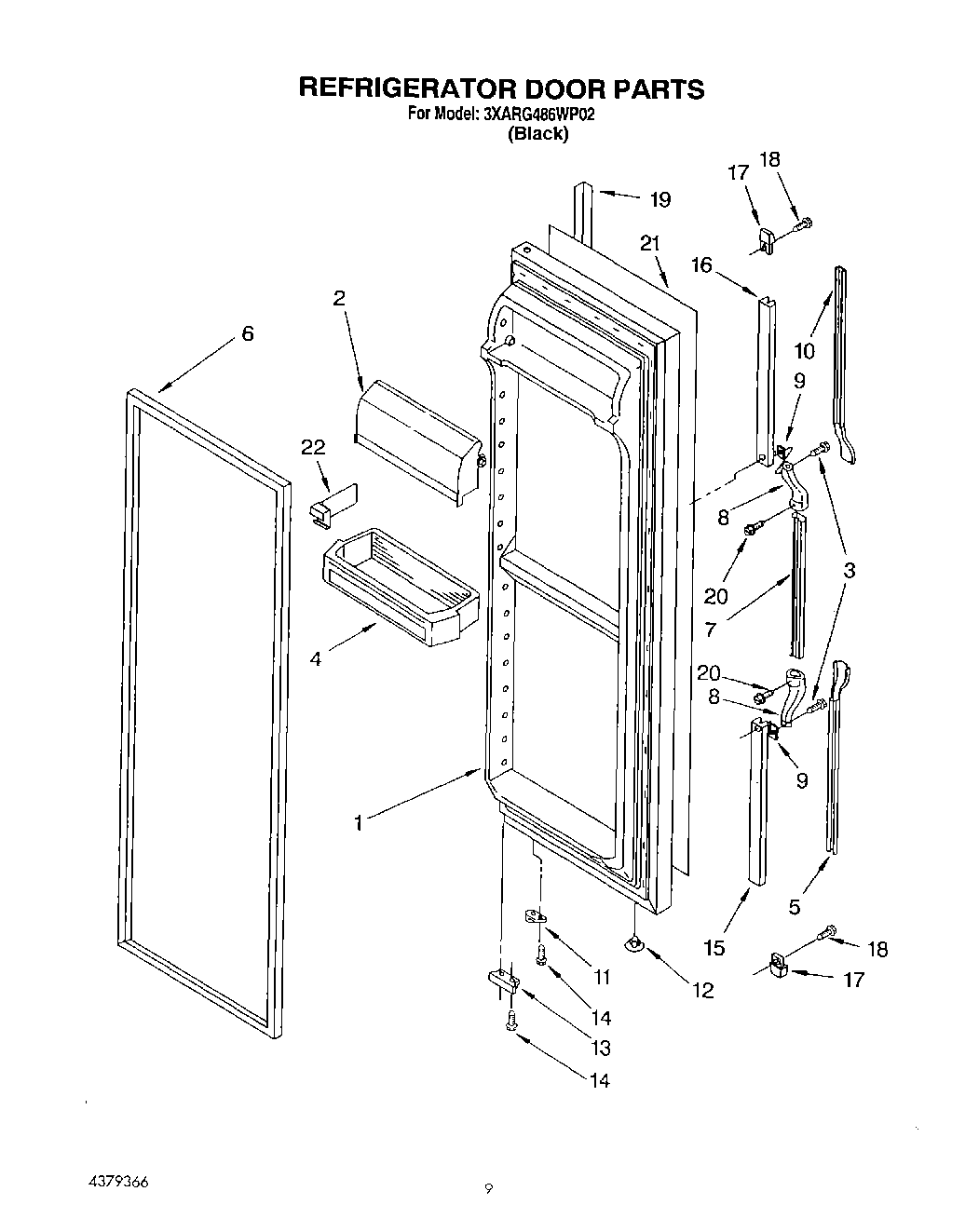

3XARG486WP02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Black)
2	WP2256101 Whirlpool Dairy Door
3	WP488163 Whirlpool Refrigerator Screw
4	Shelf Bin (2)
5	Insert, Handle (Black)
6	2159083 Whirlpool Gasket Door
7	Handle, Center
8	End Cap, Center Handle
9	Shim
10	Insert, Handle (Black)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	Hole Plug (6) (Almond)
13	Bracket, Door Stop (Black)
14	WP999367 Whirlpool Refrigerator Screw
15	Retainer, Insert (Bottom)
16	Retainer, Insert
17	End Cap (2)
18	Screw
19	Trim, Door
20	Screw
21	Panel, Black Glass
22	Divider (3)
