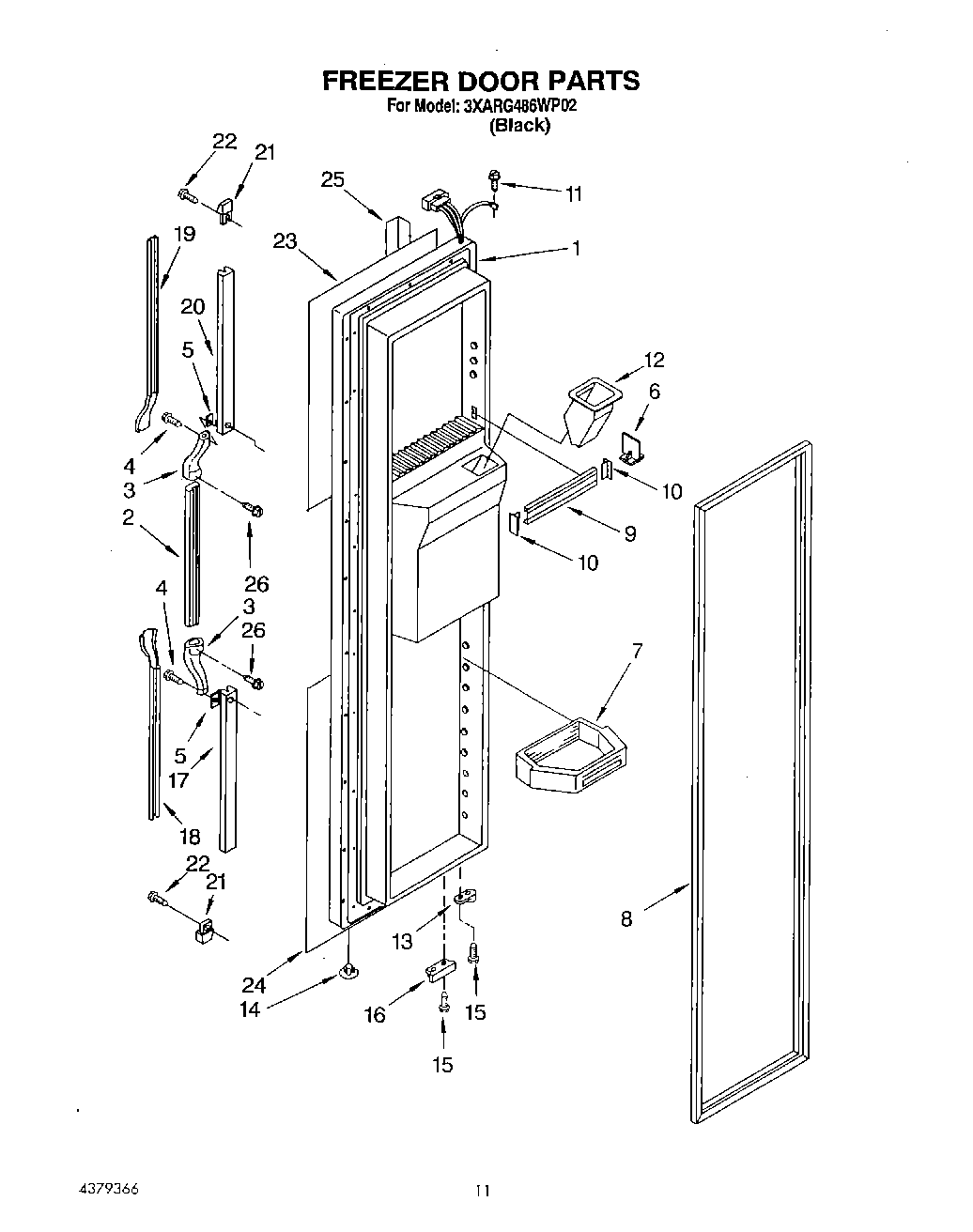

3XARG486WP02 07 – FREEZER DOOR

3XARG486WP02 07 – FREEZER DOOR

Written by

in

3XARG486WP02 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle, Center
3End Cap, Center Handle
4WP488163 Whirlpool Refrigerator Screw
5Shim
6Divider-Door
7Shelf Bin (4)
82159082 Whirlpool Freezer Door Gasket Black
9Trim, Door Shelf
10WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
11WP488234 Whirlpool Air Conditioner Screw
12Chute, Ice
134318165 Whirlpool Refrigerator Door Closure Cam Kit
14Hole Plug (6) (Almond)
15WP999367 Whirlpool Refrigerator Screw
16Bracket, Door Stop (Black)
17Retainer, Insert (Bottom)
18Insert, Handle (Black)
19Insert, Handle (Black)
20Retainer, Insert
21End Cap (2)
22Screw
23Panel, Black Glass (Upper)
24Panel, Black Glass (Lower)
25Trim, Door
26Screw
