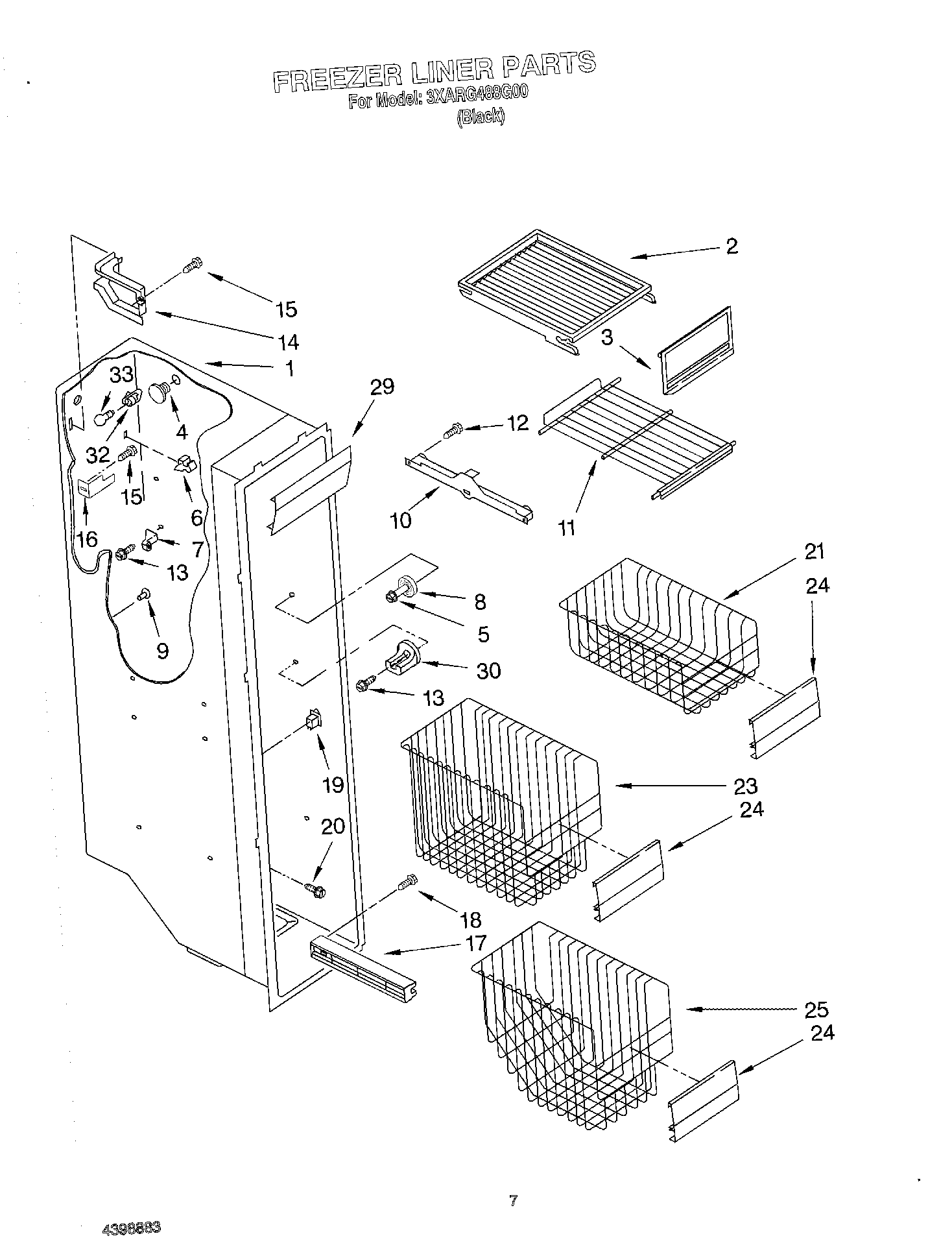

3XARG488G00 05 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Shelf, Top Compartment
3	WP2171713 Whirlpool Refrigerator Ice Door
4	940014 Whirlpool Refrigerator Primary Button Plug
5	WP3400806 Whirlpool Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	Grommet
10	W10845585 Whirlpool Refrigerator Track
10	W10845583 Whirlpool Refrigerator Track
11	WP2174267 Whirlpool Refrigerator Wire Shelf
12	718257 Whirlpool Dishwasher Screw
13	W10142289 Whirlpool Air Conditioner Screw
14	Cover, Wiring
15	SCREW
16	Bracket, Fill Tube
17	Slide, Basket (Left Side (2))
17	Slide, Basket (Right Side (2))
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	WP489478 Whirlpool Refrigerator Screw
21	Basket
23	Basket, Tall
24	Trim, Basket
25	Basket, Slope
29	2171705 Whirlpool Refrigerator Light Lens
30	Stud, Rear
32	4387478 Whirlpool Refrigerator Light Socket
33	WP67002552 Whirlpool Refrigerator Light Bulb
