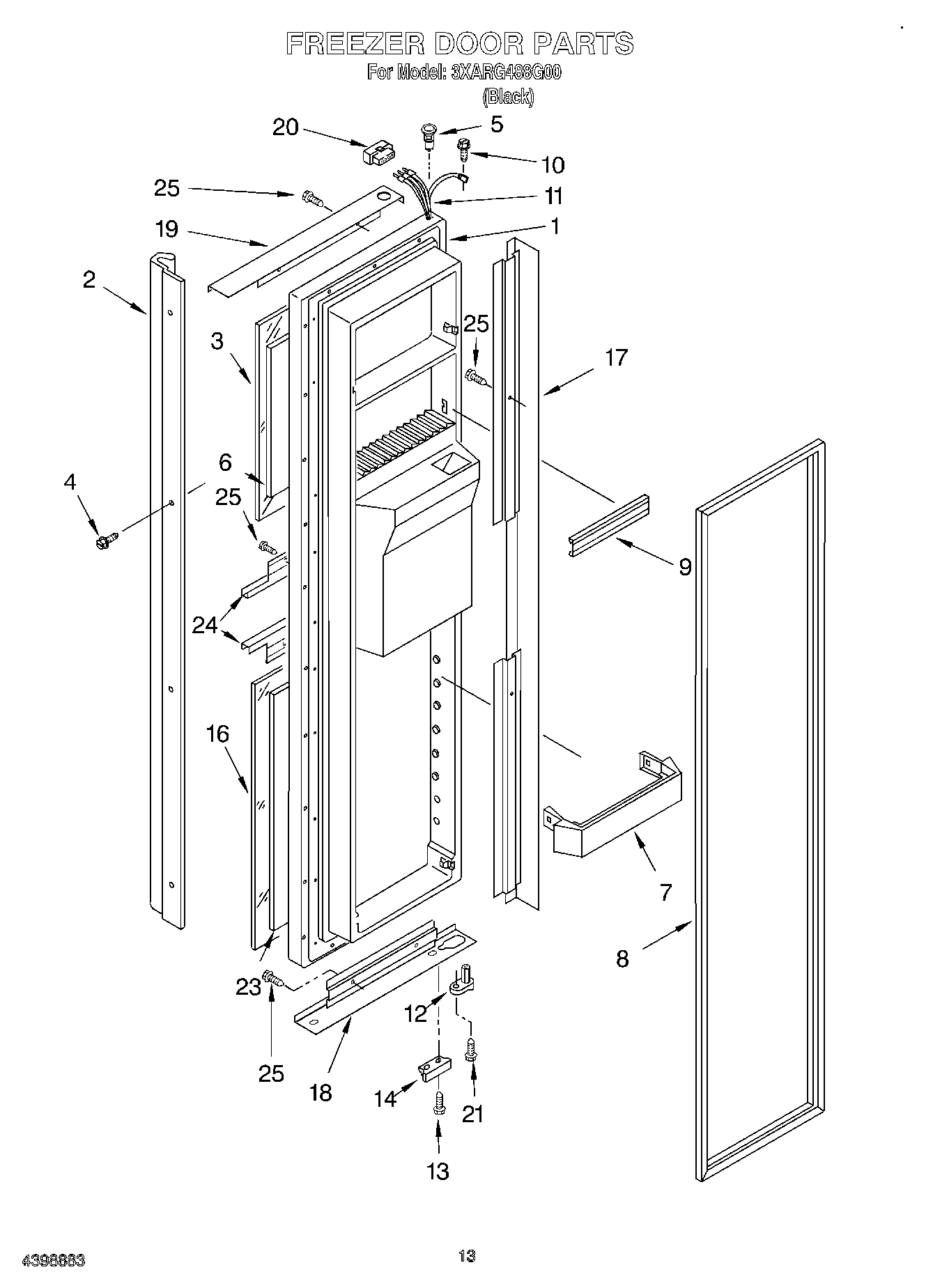

3XARG488G00 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2	Handle (Stainless)
3	WPL 2203284B
4	Screw
5	WP2182181 Whirlpool Refrigerator Thimble
6	Filler, Panel (Upper)
7	WP2171157 Whirlpool Shelf Trim
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
16	WPL 2203286B
17	Trim, Door (Hinge Side) (Stainless)
18	WPL 2203369S
19	Trim, Door (Top) (Stainless)
20	Connector
21	WP3400012 Whirlpool Refrigerator Screw
23	Filler, Panel (Lower)
24	Trim, Door (Dispenser, Top & Bottom)
25	WP3196557 Whirlpool Screw
