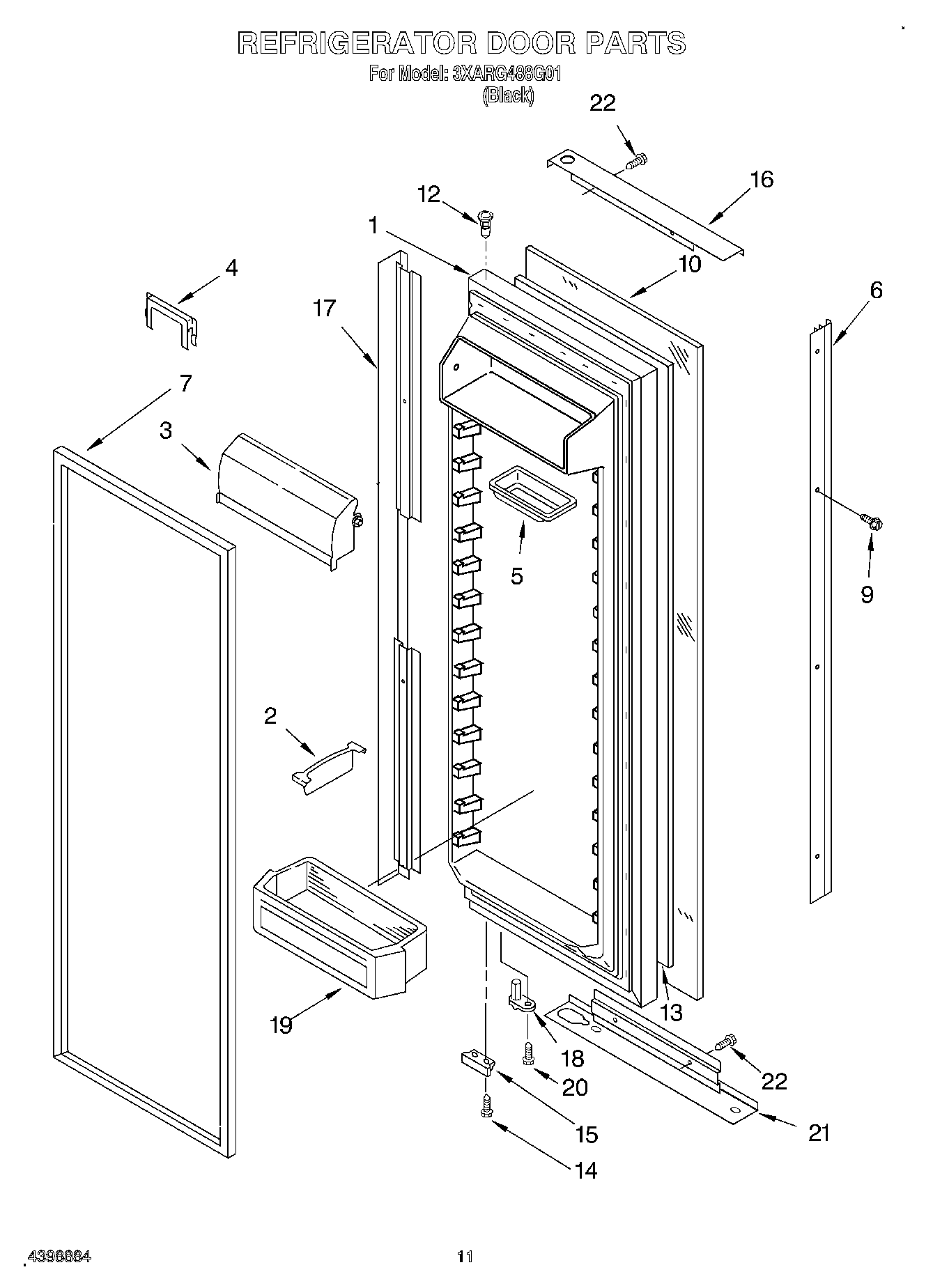

3XARG488G01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.7)
2	Divider, Bin
3	WP2256101 Whirlpool Dairy Door
4	Retainer, Bottle
5	Butter Tray
6	Handle (Stainless)
7	2159083 Whirlpool Gasket Door
9	Screw
10	Panel (Black)
12	WP2182181 Whirlpool Refrigerator Thimble
13	Filler, Panel
14	WP489483 Whirlpool Screw
15	Bracket, Door Stop (Chrome)
16	Trim, Door (Top) (Stainless)
17	Trim, Door (Hinge Side) (Stainless)
18	WP2182179 Whirlpool Cam Closer
19	WP2203872 Whirlpool Refrigerator Cantilever Bin
20	WP3400012 Whirlpool Refrigerator Screw
21	Trim, Door (Bottom) (Stainless)
22	WP3196557 Whirlpool Screw
