3XARG488G01 08 – FREEZER DOOR

3XARG488G01 08 – FREEZER DOOR

Written by

in

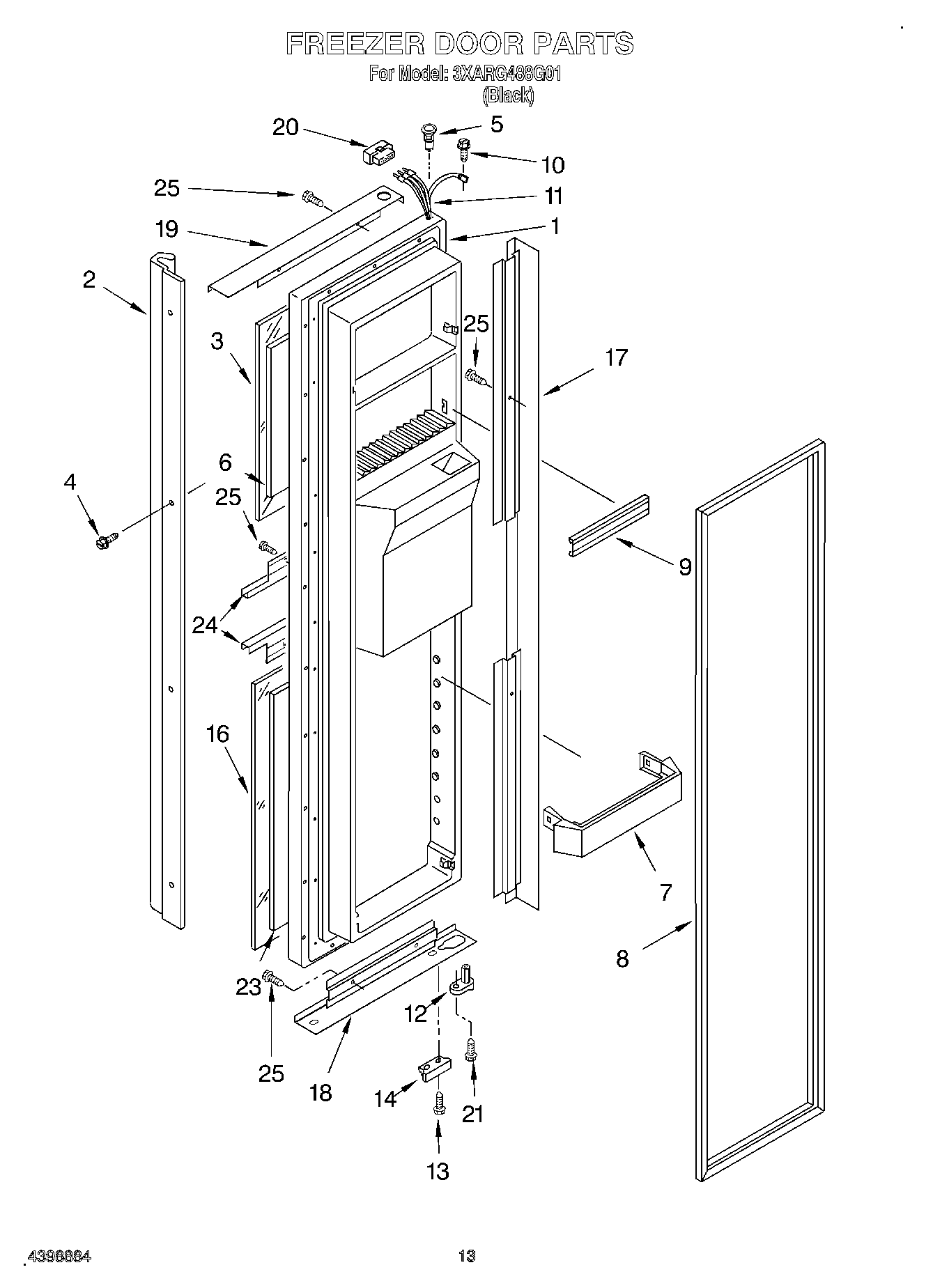

3XARG488G01 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2Handle (Stainless)
3WPL 2203284B
4Screw
5WP2182181 Whirlpool Refrigerator Thimble
6Filler, Panel (Upper)
7WP2171157 Whirlpool Shelf Trim
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11Wiring Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
16WPL 2203286B
17Trim, Door (Hinge Side) (Stainless)
18WPL 2203369S
19Trim, Door (Top) (Stainless)
20Connector
21WP3400012 Whirlpool Refrigerator Screw
23Filler, Panel (Lower)
24Trim, Door (Dispenser, Top & Bottom)
25WP3196557 Whirlpool Screw
