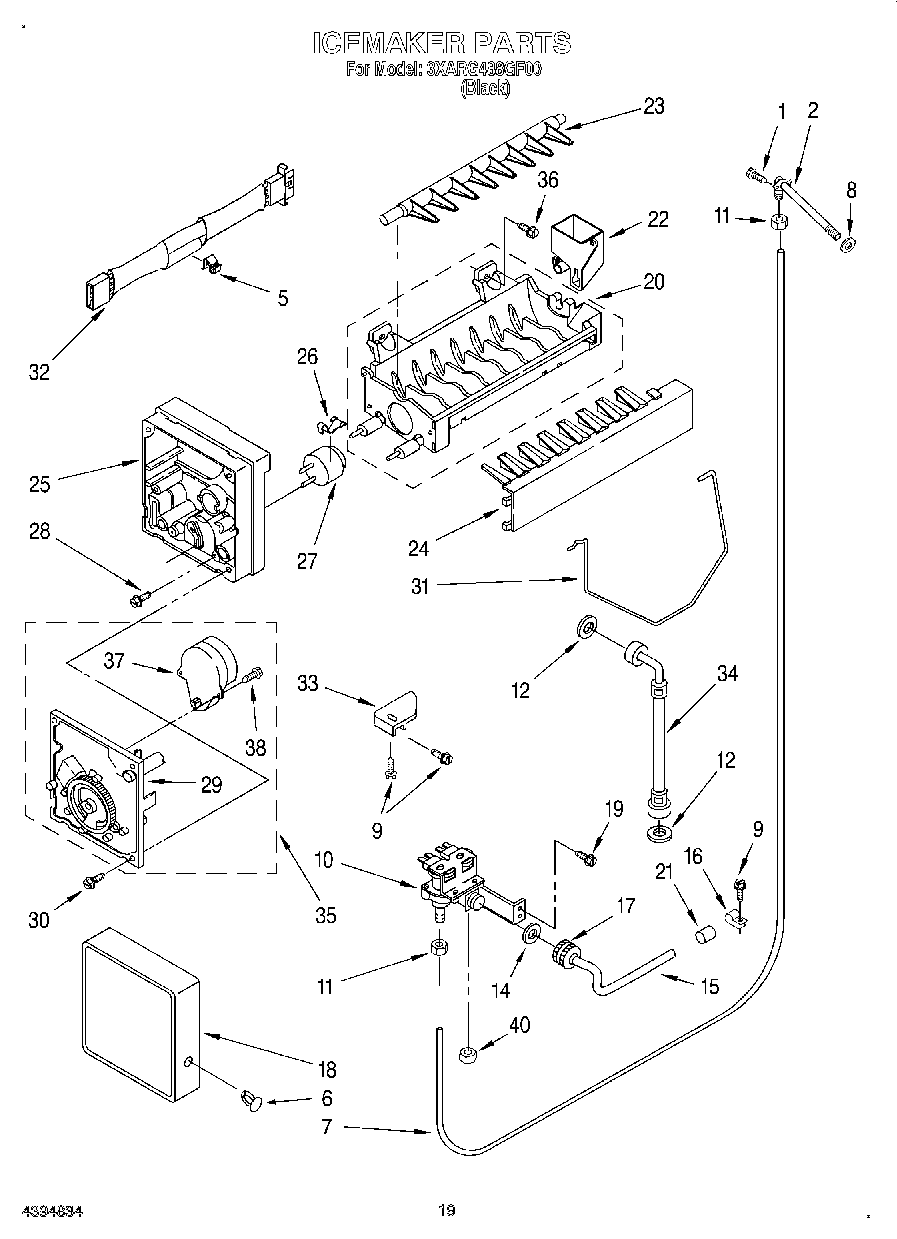

3XARG488GF00 11 – ICEMAKERadmin2025-04-26T12:27:08+00:003XARG488GF00 11 – ICEMAKER ProductsPositionProduct2WP2196157 Whirlpool Fill Tube5WP628379 Whirlpool Refrigerator Clip6WP489115 Whirlpool Refrigerator Rivet7W10823511 Whirlpool Refrigerator Water Tube8WP1106508 Whirlpool Refrigerator Gasket9WP489478 Whirlpool Refrigerator Screw10Valve, Solenoid11WP627018 Whirlpool Refrigerator Nut12Washer14Washer15Tube, Inlet Valve16Clamp Tube17Nut, Valve18WPW10289690 Whirlpool Ice Maker Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WP542638 Whirlpool Refrigerator Grease20WPW10122523 Whirlpool Refrigerator Ice Mold21WP2158826 Whirlpool Refrigerator Dampener22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat27Cement Alumilastic)288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm32WP2187464 Whirlpool Refrigerator Wire Harness33W11500948 Whirlpool Refrigerator Bracket34Tube, Inlet Valve36WP488163 Whirlpool Refrigerator Screw37W10190933 Whirlpool Refrigerator Motor Assembly38489136 Whirlpool Refrigerator Screw40Nut, Compression
