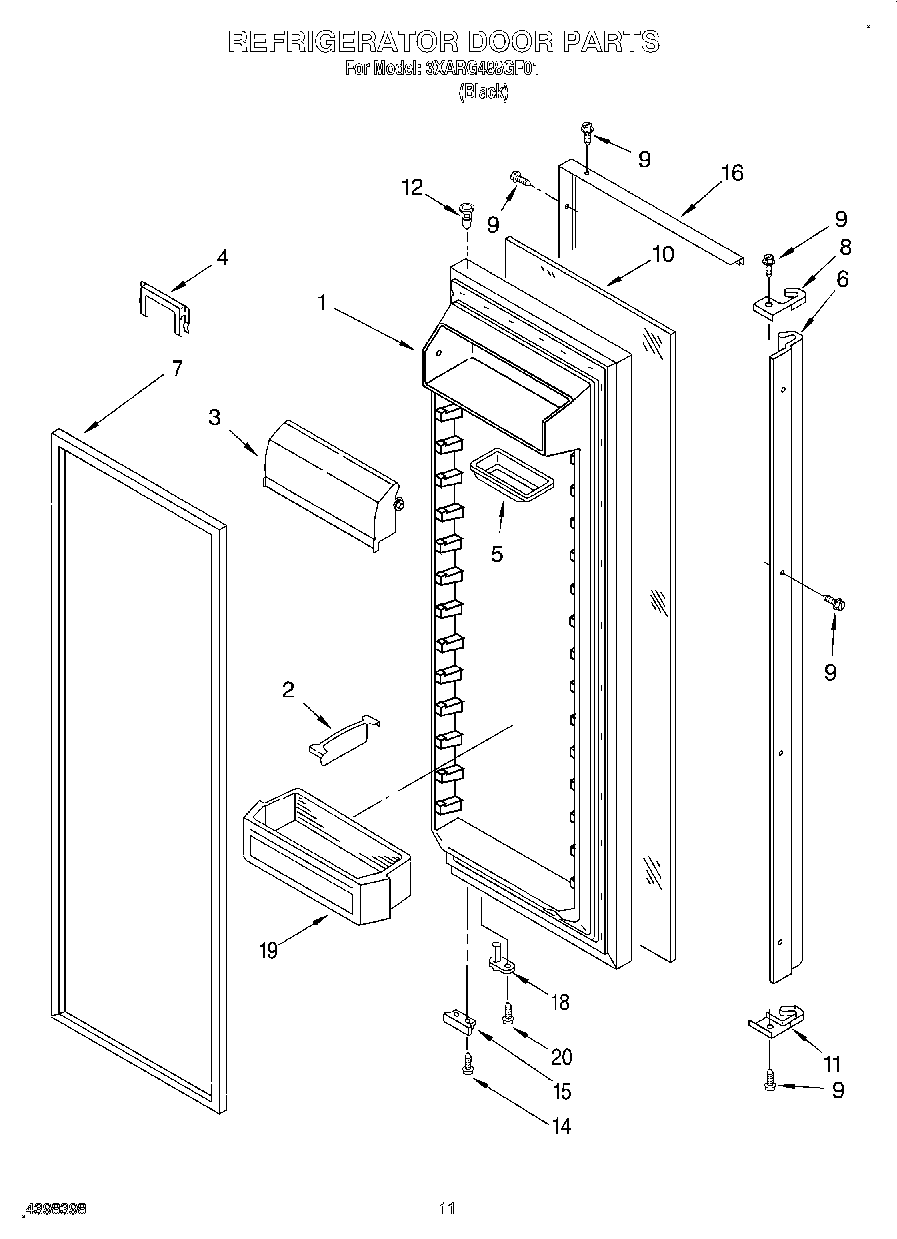

3XARG488GF01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.7)
2	Divider, Bin
3	WP2256101 Whirlpool Dairy Door
4	Retainer, Bottle
5	Butter Tray
6	Handle
7	2159083 Whirlpool Gasket Door
8	End Cap
9	Screw
10	Black Glass
11	End Cap
12	WP2182181 Whirlpool Refrigerator Thimble
14	WP489483 Whirlpool Screw
15	Bracket, Door Stop (Chrome)
16	Trim, Door
18	WP2182179 Whirlpool Cam Closer
19	WP2203872 Whirlpool Refrigerator Cantilever Bin
20	WP3400012 Whirlpool Refrigerator Screw
