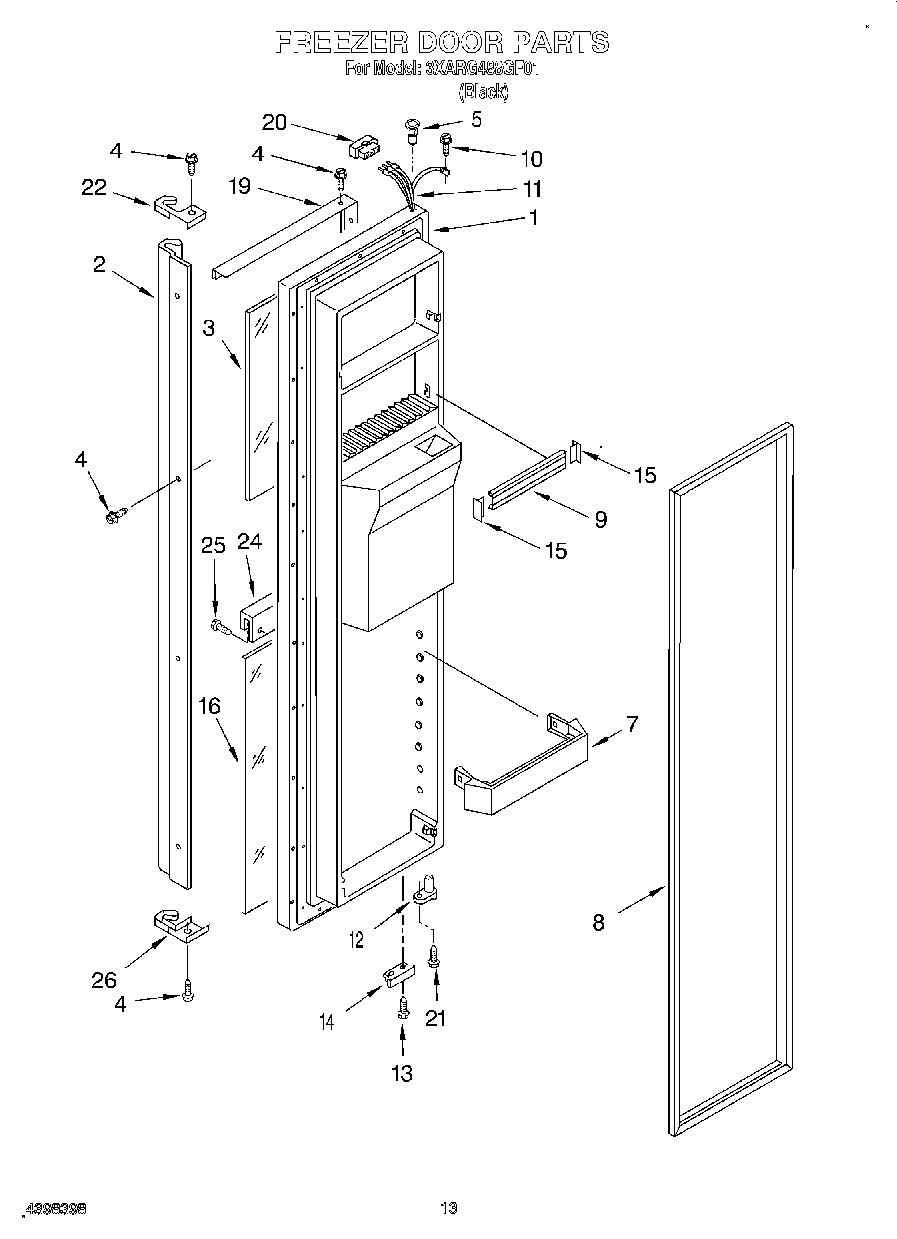

3XARG488GF01 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2	Handle
3	Black Glass, Upper
4	Screw
5	WP2182181 Whirlpool Refrigerator Thimble
7	WP2171157 Whirlpool Shelf Trim
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16	Black Glass, Lower
19	Trim, Door
20	Connector
21	WP3400012 Whirlpool Refrigerator Screw
22	End Cap
24	Trim, Dispenser
25	Screw
26	End Cap
