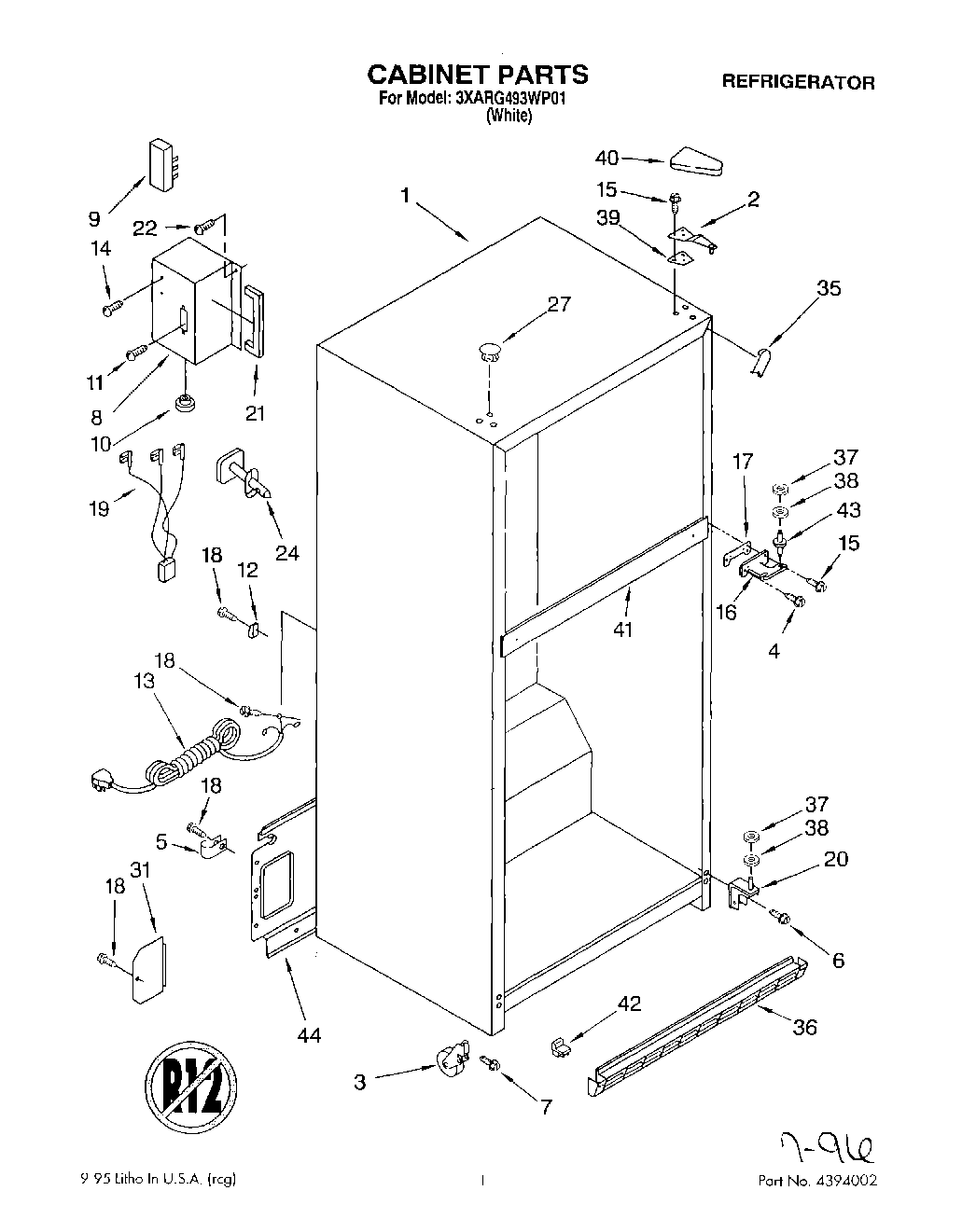

3XARG493WP01 01 – CABINETadmin2025-04-26T12:27:09+00:003XARG493WP01 01 – CABINET ProductsPositionProduct1Cabinet (Not A Serviceable Part)2Hinge (Top)3WP2166108 Whirlpool Refrigerator Cabinet Roller4Screw5WP488366 Whirlpool Refrigerator Clamp6Screw7Screw8Enclosure, Term.9Terminal Block10Bushing11WPW10272364 Whirlpool Refrigerator Screw12489348 Whirlpool Refrigerator Tube Clamp13Service Cord14Screw15WP999367 Whirlpool Refrigerator Screw16Hinge, Center17Shim, Hinge Center18WP489463 Whirlpool Refrigerator Screw19Wire Assembly, Terminal Box20Hinge Butt21Gasket22WP250830 Whirlpool Refrigerator Screw24Fitting, Water Tube (Not Serviced)27WP2151652 Whirlpool Refrigerator Button Plug31Cover, Water Valve35WPW10283959 Whirlpool Refrigerator Filler36Grille37WP489467 Whirlpool Hinge Shim38WP487576 Whirlpool Washer39Shim40Cover-Hinge (White)41Rail Center (Not Serviced)42Corner Filler, Grille (White)43WP2254618 Whirlpool Center Door Hinge44Cover, Unit
