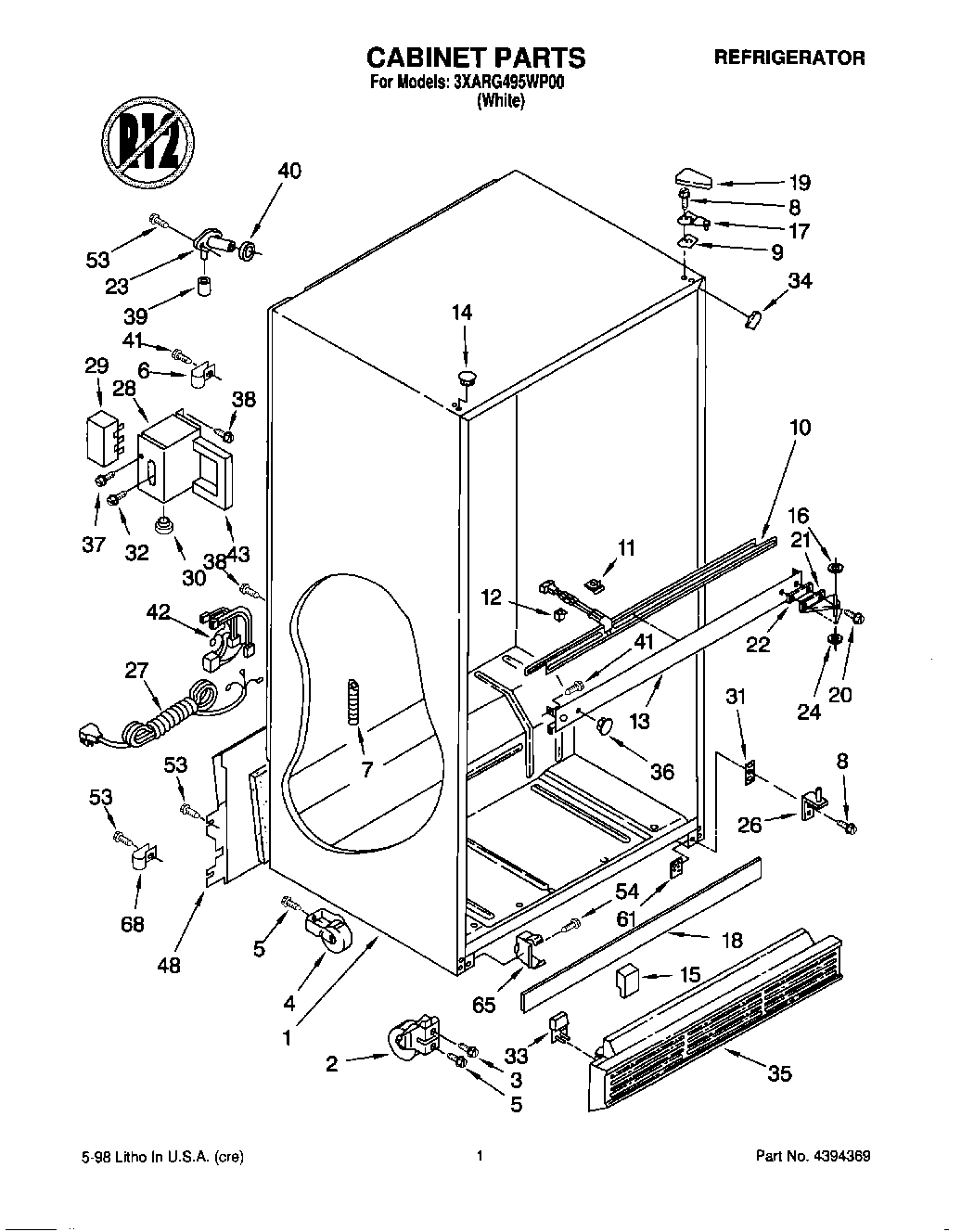

3XARG495WP00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP488366 Whirlpool Refrigerator Clamp
7	W11566763 Whirlpool Fitting
9	Shim, Hinge Top
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail
14	WP2151652 Whirlpool Refrigerator Button Plug
15	Insert, Air Baffle
16	WP487802 Whirlpool Refrigerator Washer
17	WP2189412 Whirlpool Refrigerator Door Hinge
18	Deck Rail Cover
19	WP2213360 Whirlpool Refrigerator Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
26	WP2254473 Whirlpool Refrigerator Door Hinge
27	Service Cord
28	Enclosure, Term.
29	Terminal Block
30	Bushing
31	Spacer
32	WPW10272364 Whirlpool Refrigerator Screw
33	Corner Filler, Grille (White)
34	Filler, Wrapper Corner (2) (White)
35	Grille (White)
36	Hole Plug (4) (White)
37	Screw
38	WP250830 Whirlpool Refrigerator Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
42	Wiring Assembly, Terminal Block
43	Gasket
48	Cover And Air Scoop Assembly
54	WP489478 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
65	WP2155013 Whirlpool Refrigerator Clip
68	489348 Whirlpool Refrigerator Tube Clamp
