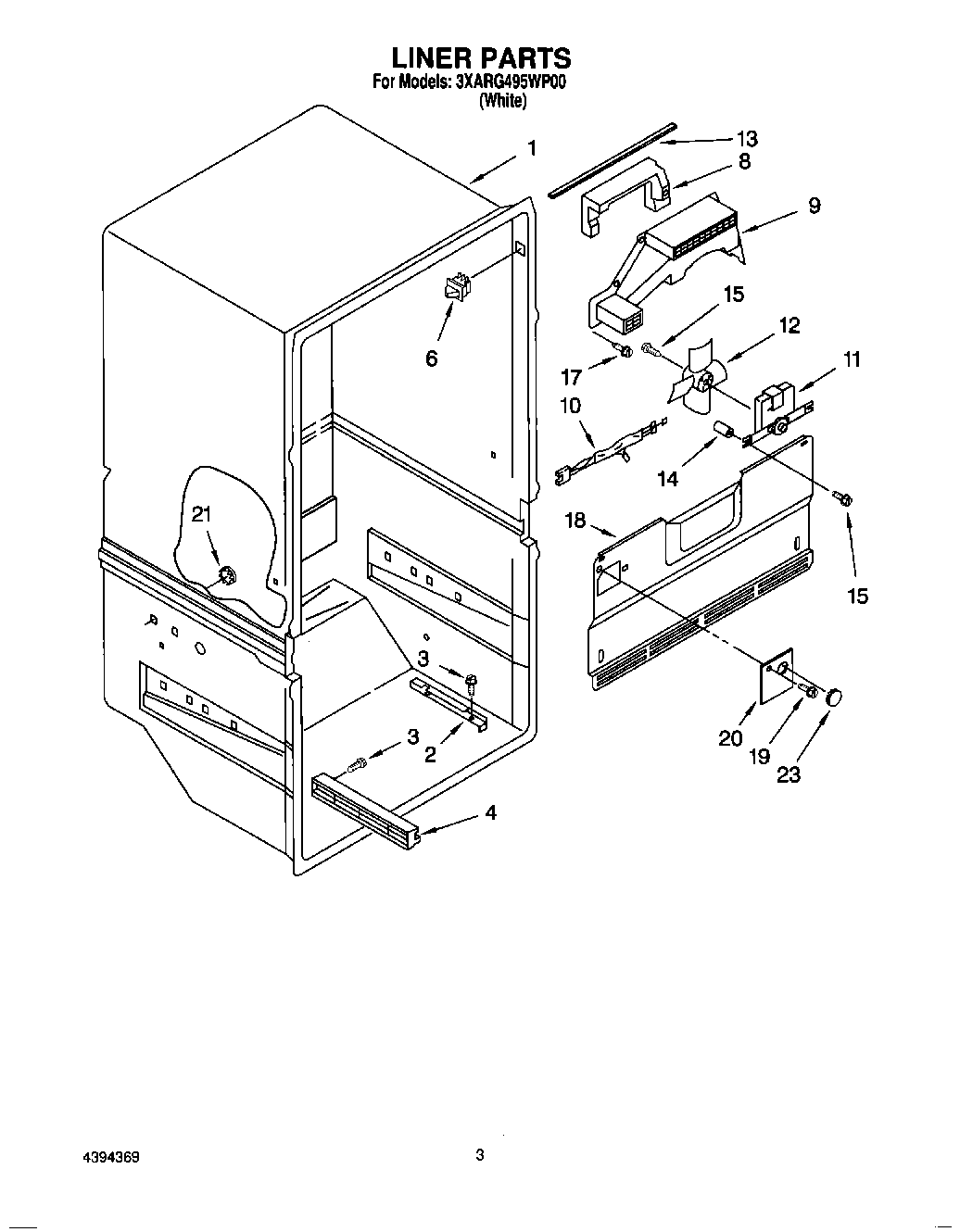

3XARG495WP00 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Basket (Left Side)
2Slide, Basket (R.S)
3W11693756 Whirlpool Screw Assembly
4Shelf Track, (Right Side)
4Shelf Track, (Left Side)
6W11384469 Whirlpool Door Switch
8Insert, Scroll
9Scroll, Fan
10Wiring Assembly, Fan Motor
11Fan Motor
12Fan Blade
13Gasket, Fan Scroll
14Grommet
15Screw (2)
17WP489478 Whirlpool Refrigerator Screw
18Cover, Evaporator
19WP488729 Whirlpool Refrigerator Door Screw
20Hole Cover, Evaporator
21WP941839 Whirlpool Refrigerator Button Plug
23Hole Plug
