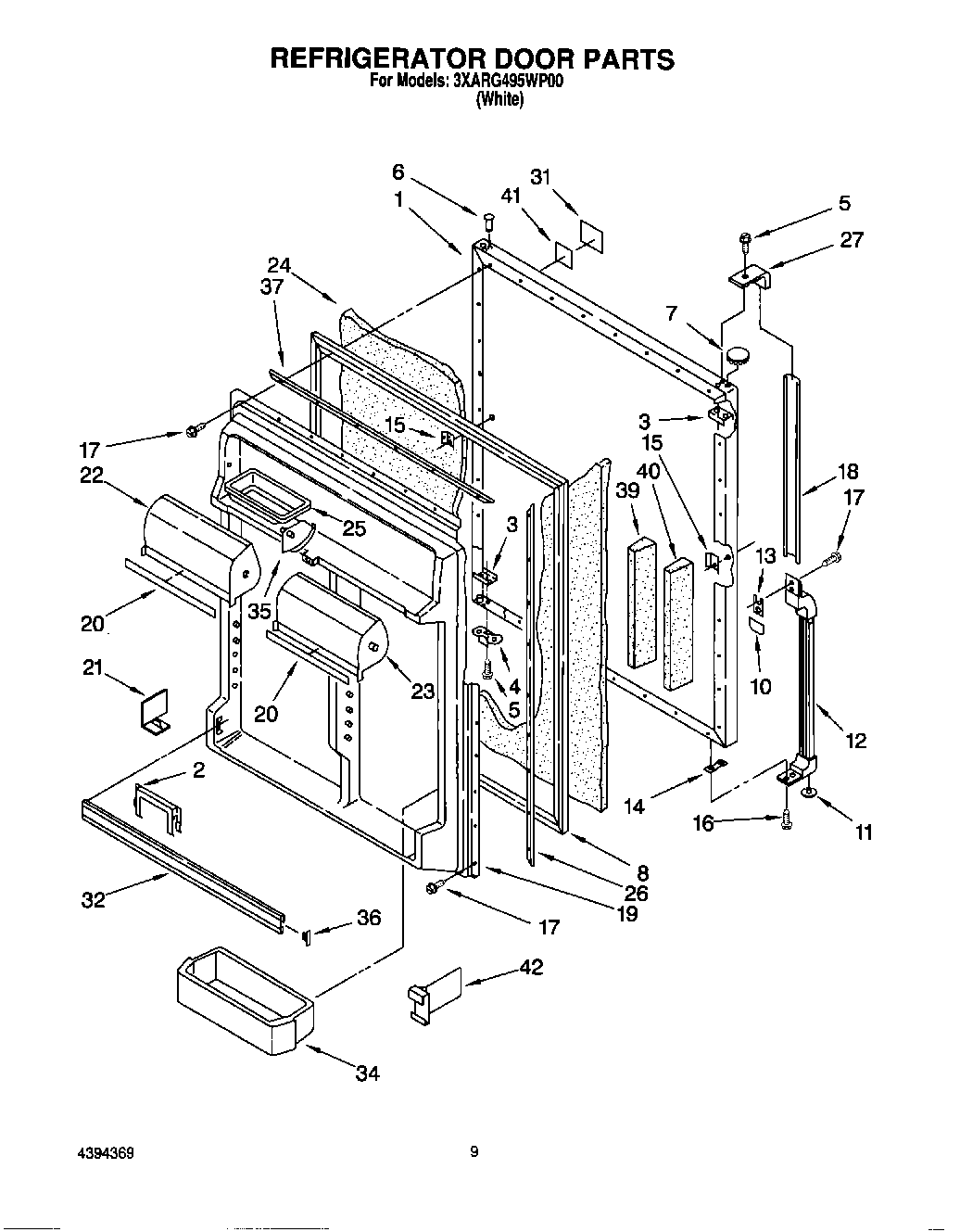

3XARG495WP00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 24) (White)
2Retainer, Bottle
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic (Mist Beige)
10Shim
11Hole Plug (White)
12Handle, Center (White)
13Shim, Handle
14Shim, Bottom
15Screw Anchor (2)
16WP488920 Whirlpool Refrigerator Screw
17WP489442 Whirlpool Refrigerator Screw
18Extension (White)
19Interior Door Panel
20Trim, Door Compartment
21Divider-Door
22Compartment Door
23Compartment Door
24WPL 876029
25Butter, Tray
26Retainer Gasket, Side (2)
27End Cap, Extension (White)
31Nameplate
32Trim, Door Shelf
34Bin, Door Shelf
35WP1118001 Whirlpool Hinge Pin
36Plug, Trim (2)
37Gasket Retainer, Top & Bottom
39WPL 2174751
40WPL 1122709
41Tape Strip
42WPL 2171284
