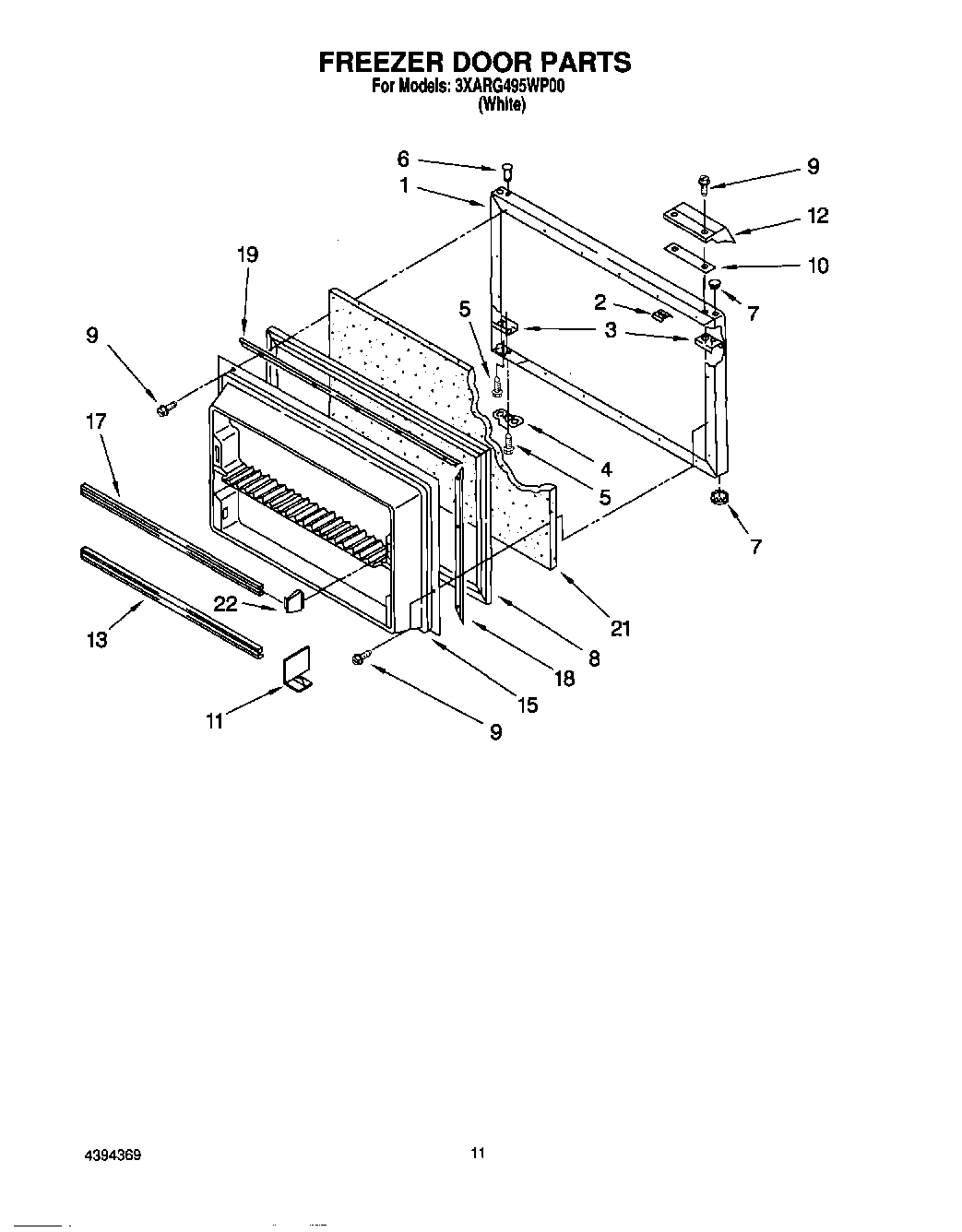

3XARG495WP00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Also Order Item 21) (White)
2	Screw Anchor
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket (Mist Beige)
9	WP489442 Whirlpool Refrigerator Screw
10	Shim
11	Divider-Door
12	Handle (White)
13	Trim, Door Shelf
15	Interior Door Panel
17	Trim, Door
18	WPL 986015
19	Gasket Retainer, Top & Bottom
21	WPL 876029
22	4386917 Whirlpool Endcap Kit
