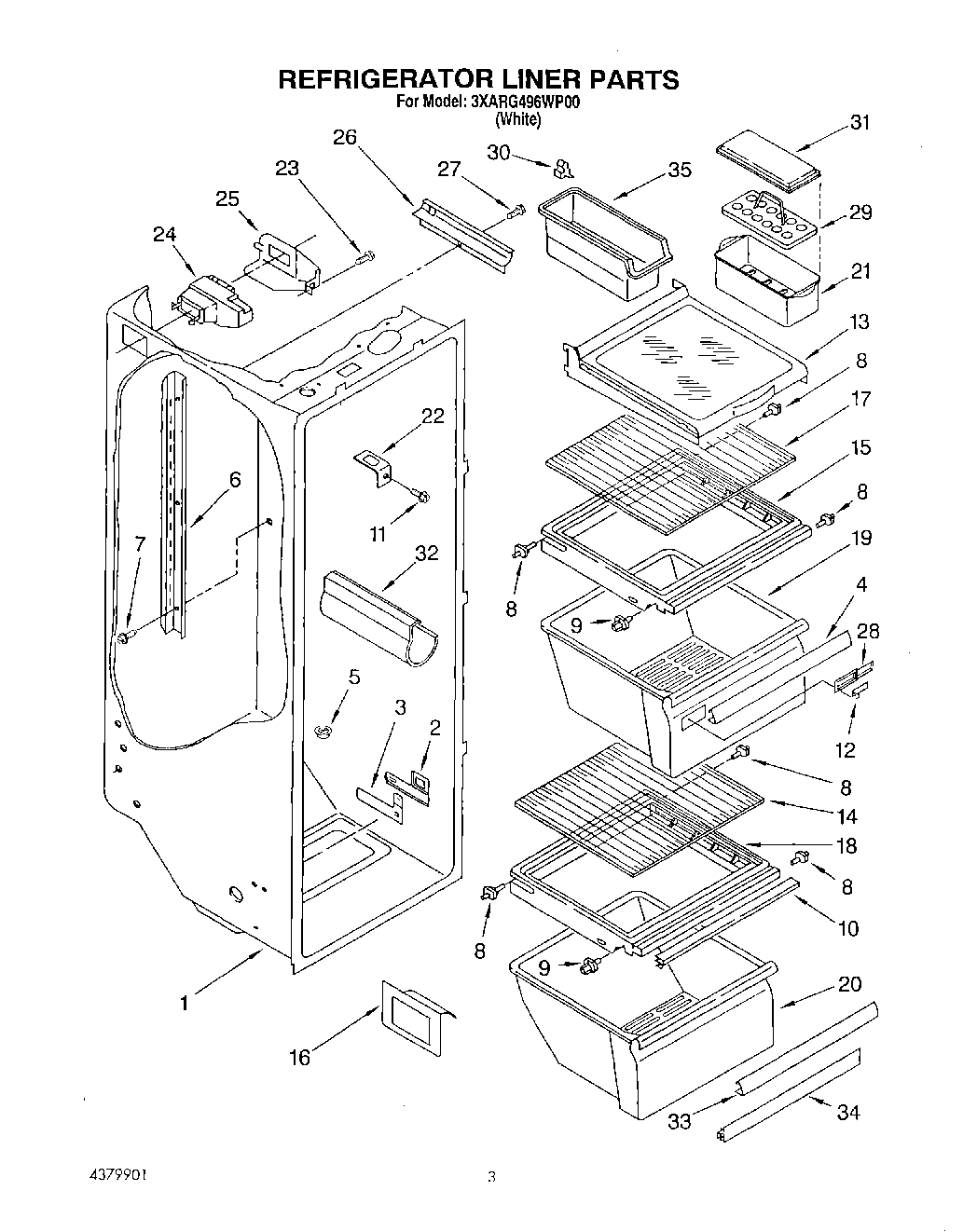

3XARG496WP00 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
5	2171846 Whirlpool Refrigerator Release Valve
6	Shelf Ladder
7	WP488729 Whirlpool Refrigerator Door Screw
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	4388539 Whirlpool Refrigerator Shelf Stud
10	Gasket, Front
11	WP488488 Whirlpool Refrigerator Screw
12	WP2179342 Whirlpool Refrigerator Slide
13	Shelf, Glass (3)
15	W10508993 Whirlpool Refrigerator Cover Pan
16	2179350 Whirlpool Refrigerator Deflector
17	W10864399 Whirlpool Glass Shelf
19	PAN-CRISPR
20	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
21	W10136387A Whirlpool Refrigerator Egg Container
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP489478 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	Cover, Conduit
27	W10759522 Whirlpool Screw
28	WP2179343 Whirlpool Refrigerator Control Body
29	WP2177817 Whirlpool Refrigerator Egg Container
30	2215823 Whirlpool Refrigerator Clip
31	Cover
32	W10777924 Whirlpool Refrigerator Wine Rack
33	WP2179234 Whirlpool Refrigerator Pan Trim
34	Extension, Cover
35	WP982704 Whirlpool Refrigerator Container
