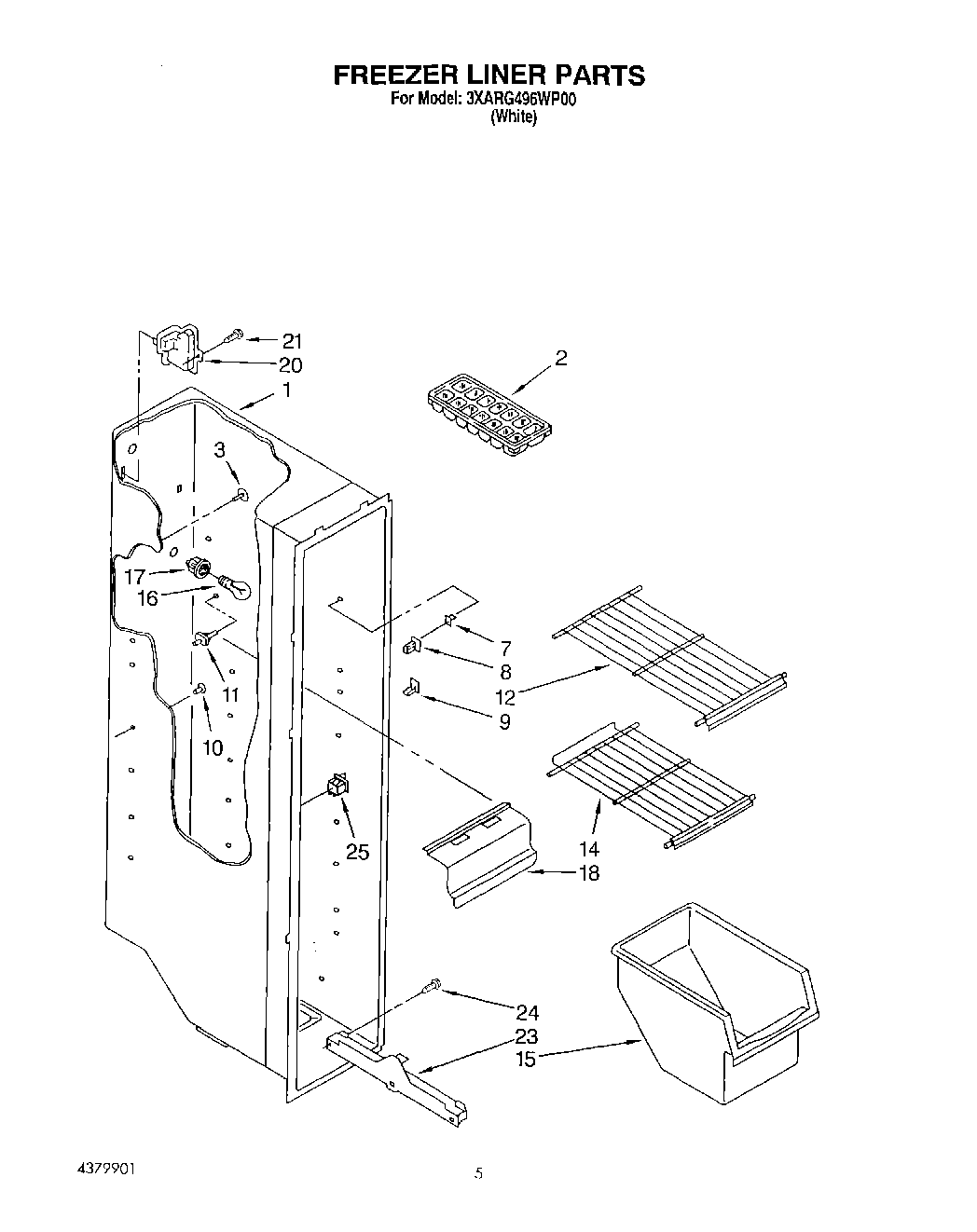

3XARG496WP00 03 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP841180A Whirlpool Microwave Glass Turntable Tray
3WP941839 Whirlpool Refrigerator Button Plug
7Stud, Support
8Stud, Front R.S.
9Stud, Rear R.S.
10Grommet
114388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12Shelf
14Shelf (2)
14Shelf (1)
15Bin, Freezer
16WP67002552 Whirlpool Refrigerator Light Bulb
17SOCKET
18WP2155595 Whirlpool Refrigerator Light Lens
20Cover, Wiring
21WP488729 Whirlpool Refrigerator Door Screw
23Slide, Basket (Left Side)
23W10845583 Whirlpool Refrigerator Track
24718257 Whirlpool Dishwasher Screw
25W11457217 Whirlpool Refrigerator Rocker Switch Combination
