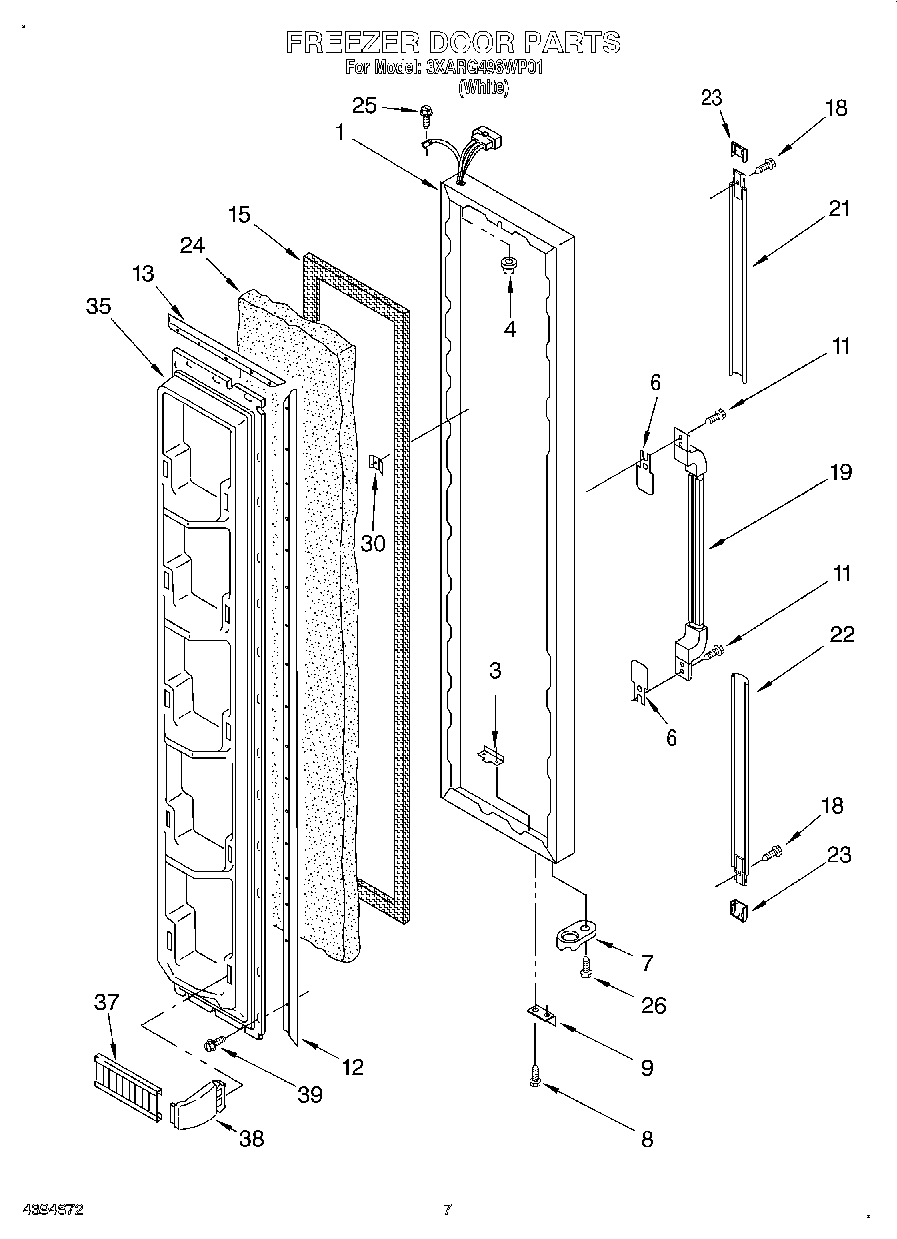

3XARG496WP01 05 – FREEZER DOOR

3XARG496WP01 05 – FREEZER DOOR

Written by

in

3XARG496WP01 05 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (White)
3Tap, Plate
4Cap, Hinge Sleeve (2)
6Shim
74318165 Whirlpool Refrigerator Door Closure Cam Kit
8WP999367 Whirlpool Refrigerator Screw
9Bracket, Door Stop (Chrome)
12Retainer, Gasket
13Retainer, Gasket
152188405A Whirlpool Refrigerator Door Gasket
19Handle, Center (White)
21Extension, Top (White)
22Extension, Bottom (White)
23Cover, Endcap (White)
24WPL 876029
25WP488234 Whirlpool Air Conditioner Screw
26WP3400012 Whirlpool Refrigerator Screw
30Screw Anchor (2)
35Panel, Interior Door
37Trim, Door Shelf
38WP2196100 Whirlpool Shelf Retainer Bar Support
39WP489069 Whirlpool Compactor Screw
