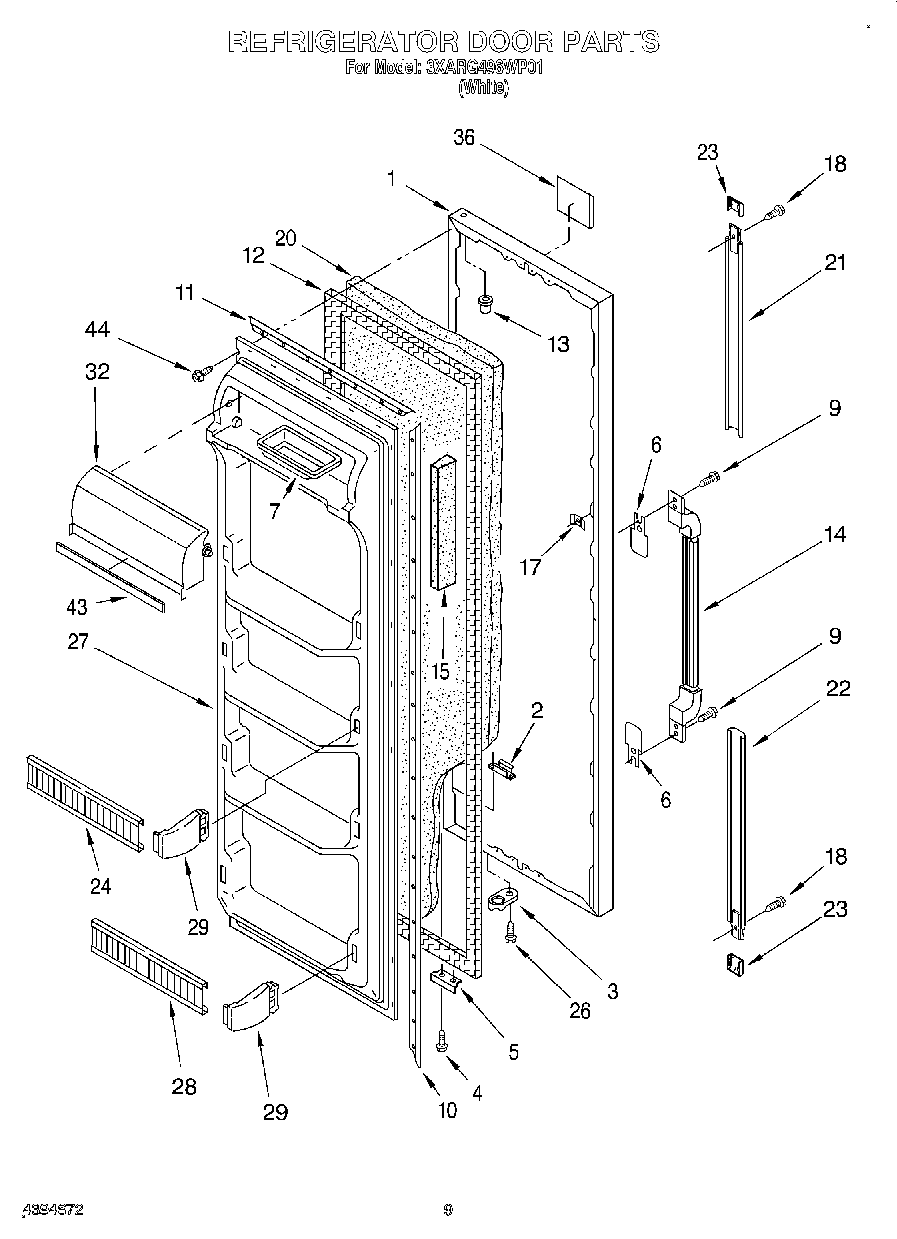

3XARG496WP01 06 – REFRIGERATOR DOORadmin2025-04-26T12:26:06+00:003XARG496WP01 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (White) |
| 2 | Tap, Plate |
| 3 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 4 | WP999367 Whirlpool Refrigerator Screw |
| 5 | Bracket, Door Stop (Chrome) |
| 6 | Shim |
| 7 | Butter Tray |
| 10 | Retainer, Gasket |
| 11 | Gasket Retainer, Top & Bottom |
| 12 | 2188404A Whirlpool Refrigerator Door Gasket |
| 13 | Cap, Hinge Sleeve (2) |
| 14 | Handle, Center (White) |
| 15 | Reinforcement, Shelf |
| 17 | Screw Anchor (2) |
| 20 | WPL 876029 |
| 21 | Extension, Top (White) |
| 22 | Extension, Bottom (White) |
| 23 | Cover, Endcap (White) |
| 24 | WP2182189 Whirlpool Door Shelf Bar |
| 26 | WP3400012 Whirlpool Refrigerator Screw |
| 27 | Panel, Interior Door |
| 28 | WP2256010 Whirlpool Door Shelf Trim |
| 29 | WP2196190 Whirlpool Shelf Retainer Bar Support |
| 29 | WP2196189 Whirlpool Shelf Retainer Bar |
| 32 | Door, Compartment |
| 36 | Nameplate |
| 43 | Trim, Compartment Door |
| 44 | WP489069 Whirlpool Compactor Screw |
