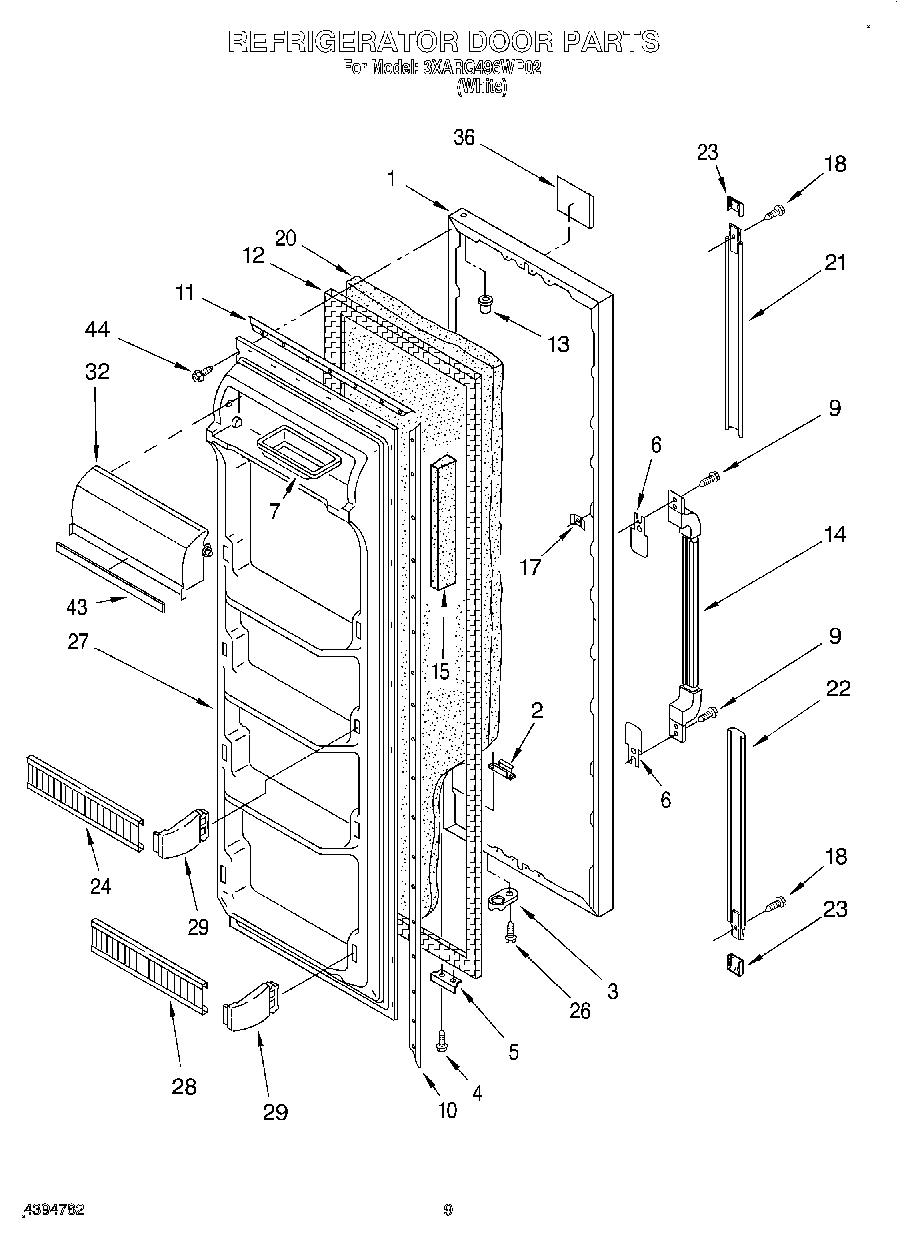

3XARG496WP02 06 – REFRIGERATOR DOOR

3XARG496WP02 06 – REFRIGERATOR DOOR

Written by

in

3XARG496WP02 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (White)
2Tap, Plate
34318165 Whirlpool Refrigerator Door Closure Cam Kit
4WP999367 Whirlpool Refrigerator Screw
5Bracket, Door Stop (Chrome)
6Shim
7Butter Tray
10Retainer, Gasket
11Gasket Retainer, Top & Bottom
122188404A Whirlpool Refrigerator Door Gasket
13Cap, Hinge Sleeve (2)
14Handle, Center (White)
15Reinforcement, Shelf
17Screw Anchor (2)
20WPL 876029
21Extension, Top (White)
22Extension, Bottom (White)
23Cover, Endcap (White)
24WP2182189 Whirlpool Door Shelf Bar
26WP3400012 Whirlpool Refrigerator Screw
27Panel, Interior Door
28WP2256010 Whirlpool Door Shelf Trim
29WP2196190 Whirlpool Shelf Retainer Bar Support
29WP2196189 Whirlpool Shelf Retainer Bar
32Door, Compartment
36Nameplate
43Trim, Compartment Door
44WP489069 Whirlpool Compactor Screw
