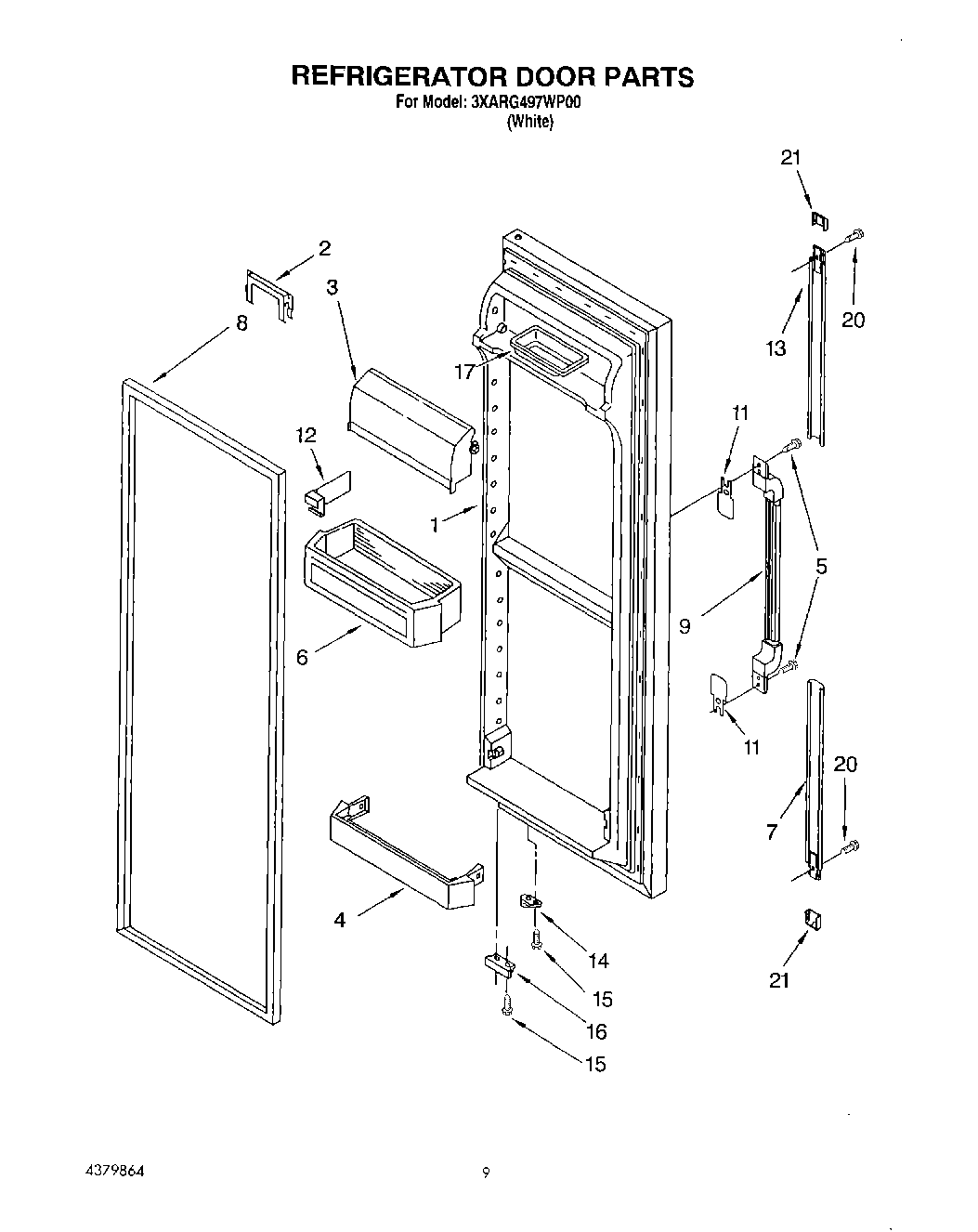

3XARG497WP00 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.6)
2Retainer, Bottle
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489463 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7Extension, Bottom
82159073 Whirlpool Refrigerator Door Gasket
9Handle, Center (White)
11Shim
12WPL 2171284
13Extension, Top
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop
17Butter, Tray
21Cover, Endcap (White)
