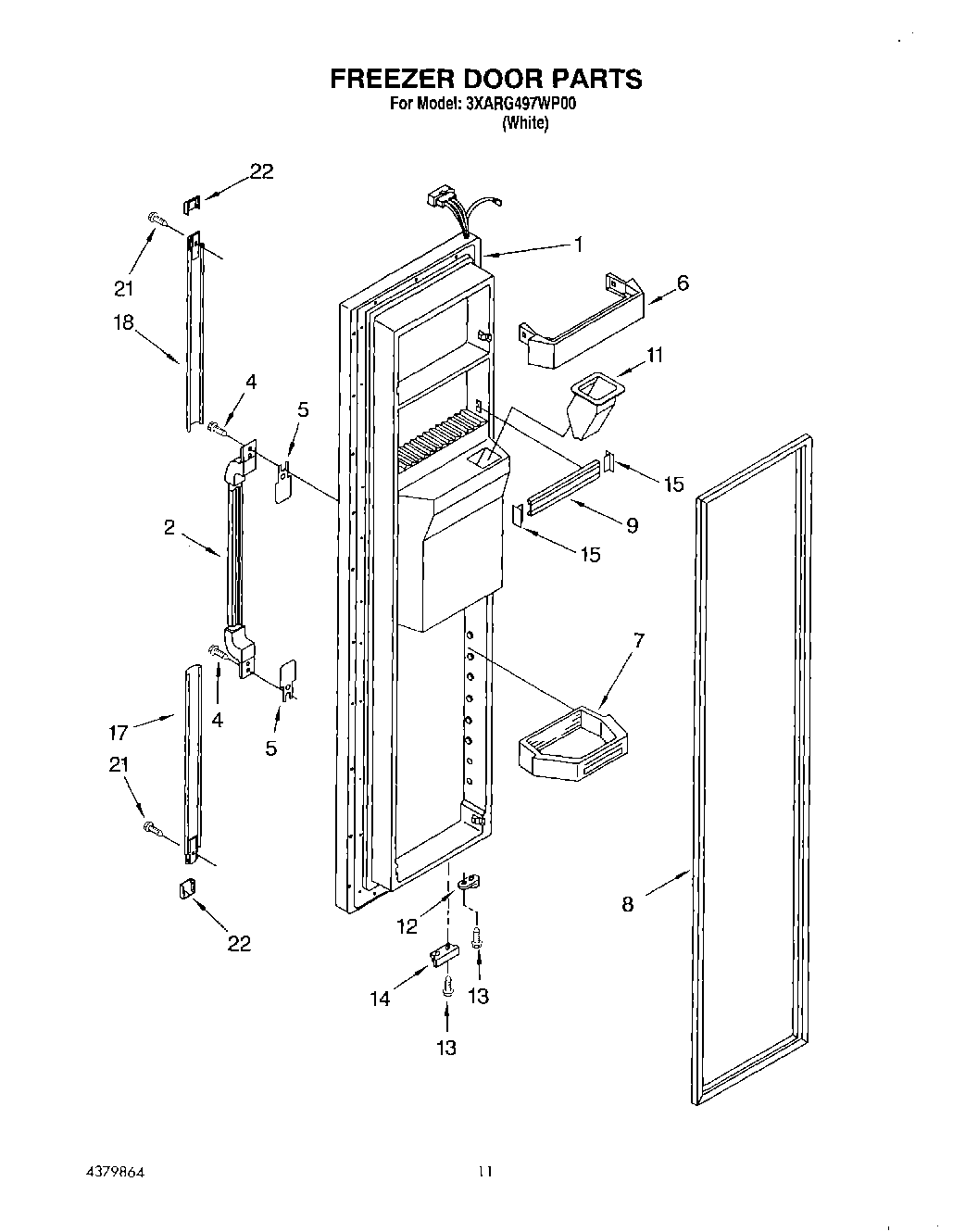

3XARG497WP00 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
2Handle, Center (White)
4WP489463 Whirlpool Refrigerator Screw
5Shim
6WP2156021 Whirlpool Refrigerator Door Trim
7Shelf Bin (2)
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
11Chute, Ice
124318165 Whirlpool Refrigerator Door Closure Cam Kit
13WP489483 Whirlpool Screw
14Bracket, Door Stop
15WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17Extension, Bottom
18Extension, Top
22Cover, Endcap (White)
