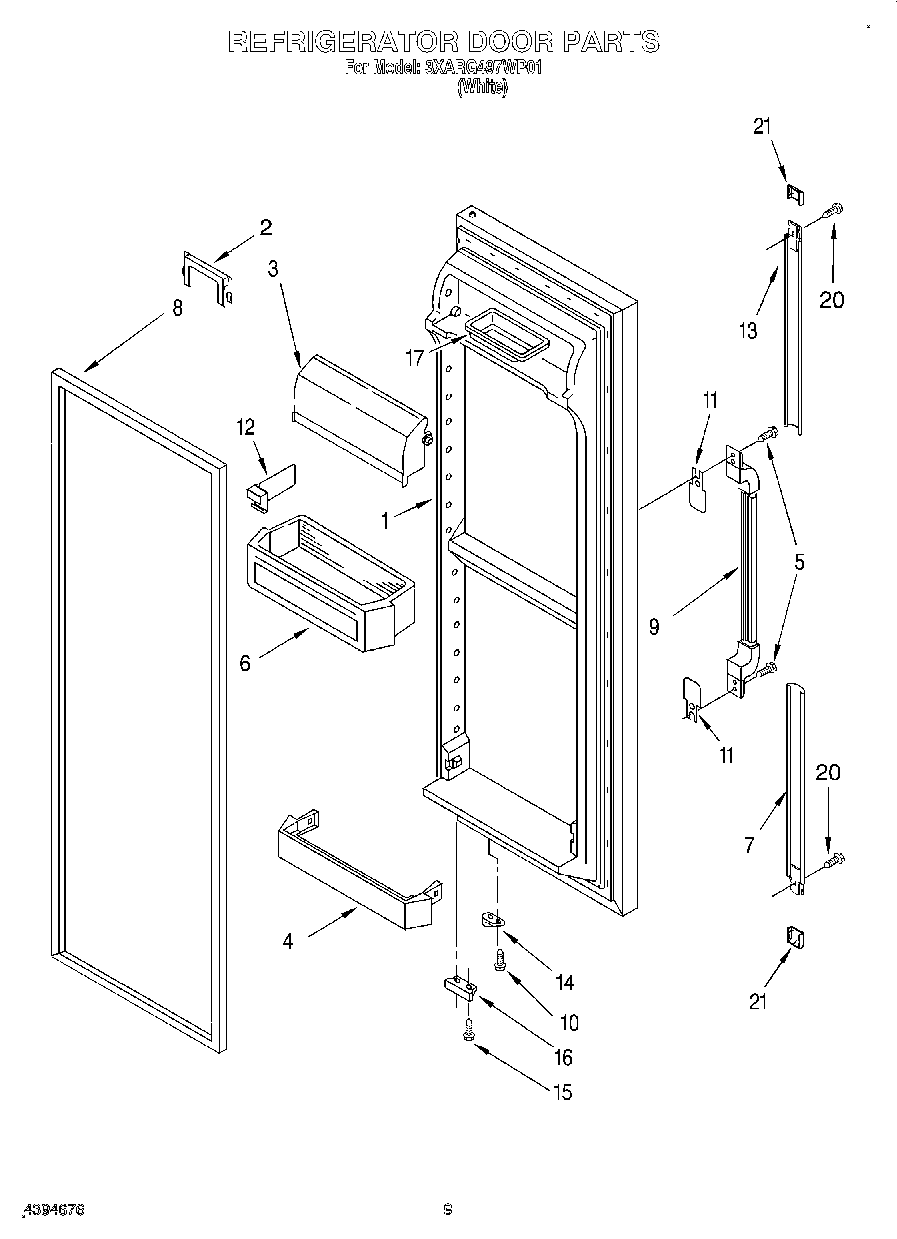

3XARG497WP01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489463 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Extension, Bottom (White)
8	2159073 Whirlpool Refrigerator Door Gasket
9	Handle, Center (White)
10	WP3400012 Whirlpool Refrigerator Screw
11	Shim
12	Divider, Bin
13	Extension, Top (White)
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
17	Butter Tray
21	Cover, Endcap (White)
