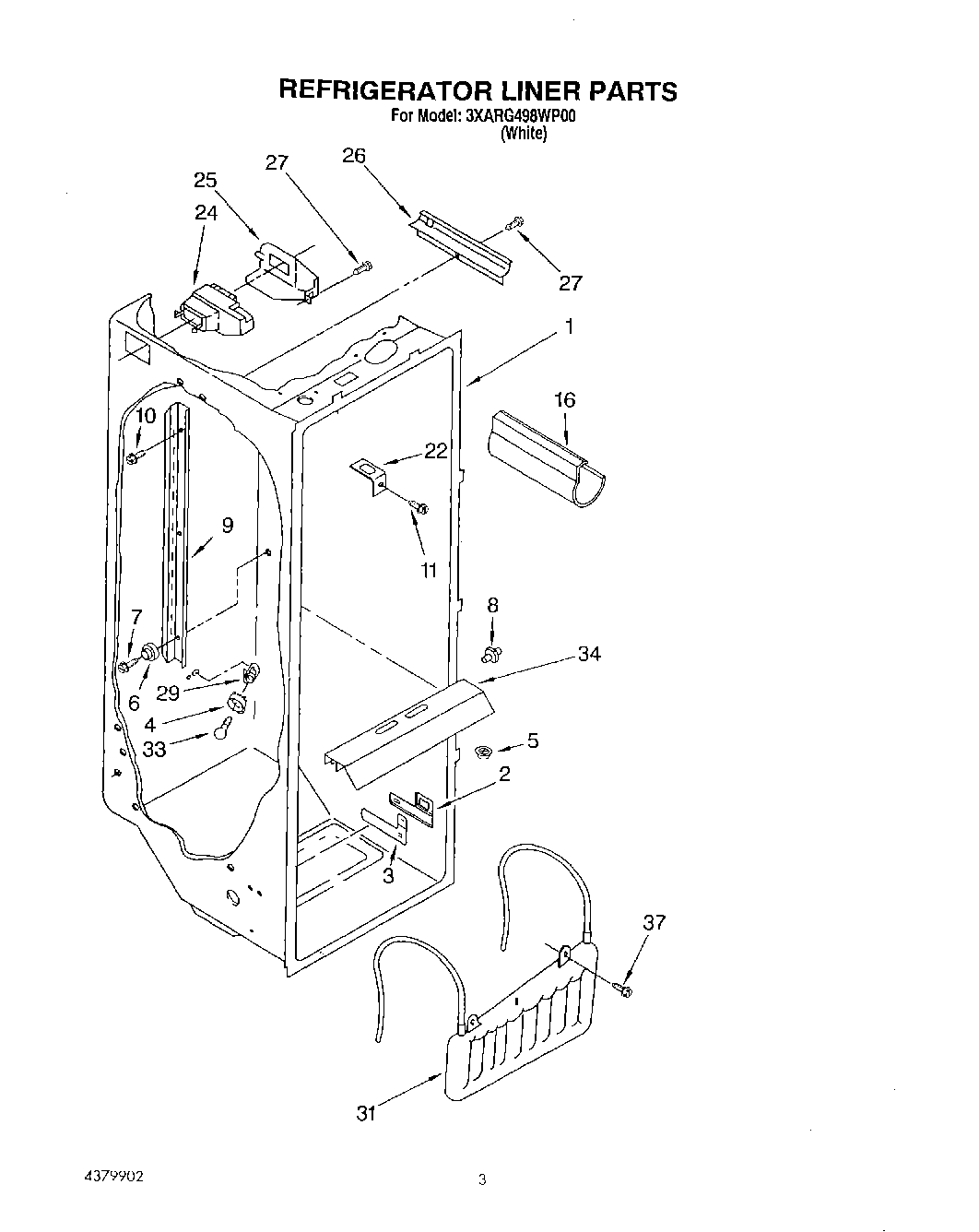

3XARG498WP00 02 – REFRIGERATOR LINER

3XARG498WP00 02 – REFRIGERATOR LINER

Written by

in

3XARG498WP00 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4WP2175210 Whirlpool Refrigerator Shroud
52171846 Whirlpool Refrigerator Release Valve
6Stud
7Screw
84388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9Ladder, Shelf
10WP488729 Whirlpool Refrigerator Door Screw
11WP488488 Whirlpool Refrigerator Screw
16W10777924 Whirlpool Refrigerator Wine Rack
22WP2256085 Whirlpool Refrigerator Retainer
24WPW10129864 Whirlpool Refrigerator Diffuser
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33WP67002552 Whirlpool Refrigerator Light Bulb
34Light Lens
37Screw (2)
