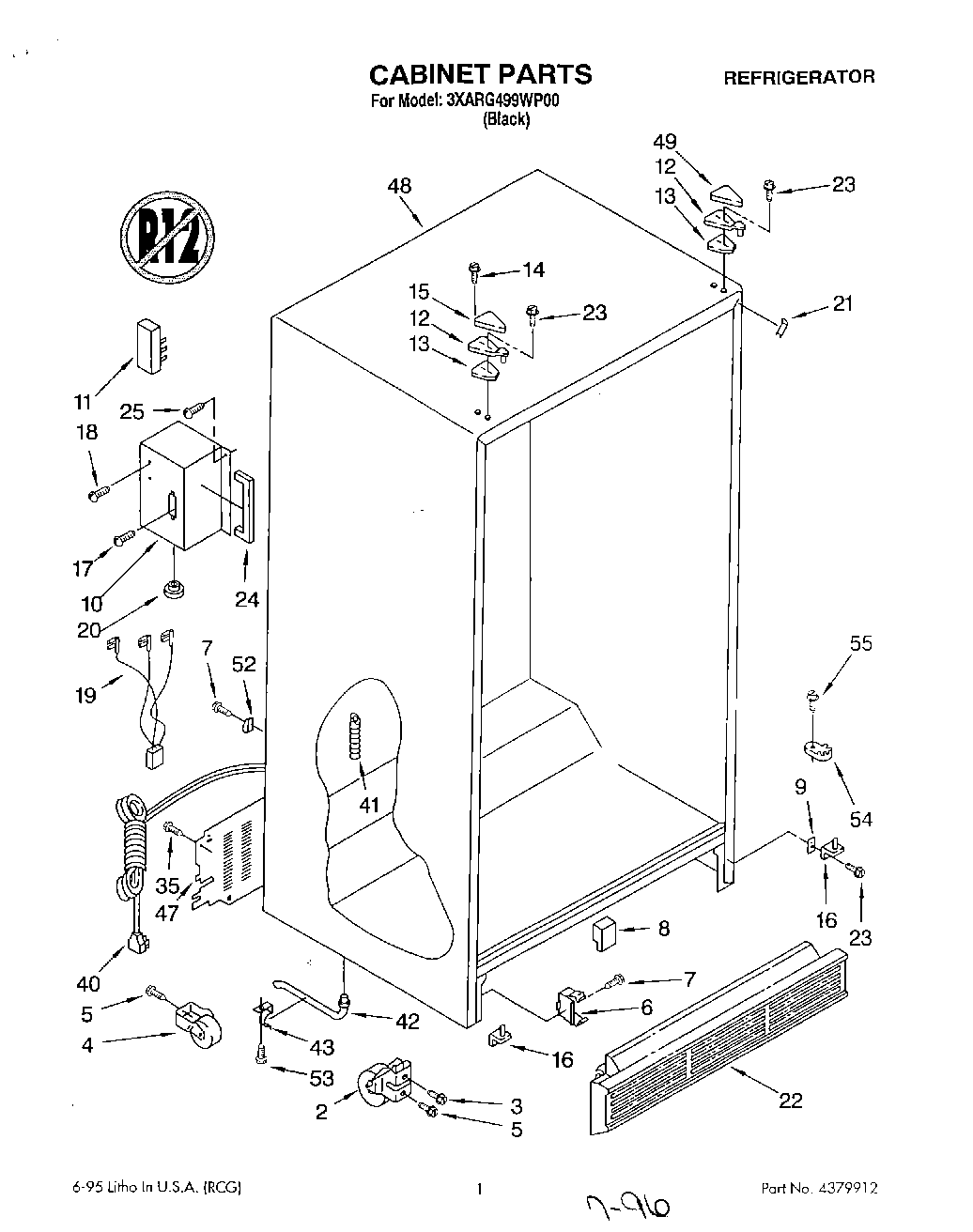

3XARG499WP00 01 – CABINETadmin2025-04-26T12:27:07+00:003XARG499WP00 01 – CABINET ProductsPositionProduct2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WP2155013 Whirlpool Refrigerator Clip7WP489478 Whirlpool Refrigerator Screw8Insert, Air Baffle9WP2181911 Whirlpool Refrigerator Shim10Enclosure, Term.11Terminal Block12WP2196046 Whirlpool Refrigerator Door Hinge13Shim, Hinge Top14Screw15WP1129262 Whirlpool Refrigerator Cover168201707 Whirlpool Door Hinge17WPW10272364 Whirlpool Refrigerator Screw18Screw19Wiring Assembly, Terminal Block20Bushing21Filler, Wrapper (Black)22Grille (Black)23WP999367 Whirlpool Refrigerator Screw24Gasket25WP489463 Whirlpool Refrigerator Screw35WP489464 Whirlpool Refrigerator Screw40Service Cord41W11566763 Whirlpool Fitting42WP1108438 Whirlpool Refrigerator Extension43WP1108439 Whirlpool Refrigerator Clip47Cover, Unit48Cabinet (Not A Serviceable Part)49Hinge Cover (Black)52489348 Whirlpool Refrigerator Tube Clamp54WPW10329686 Whirlpool Door Cam Black55WP489483 Whirlpool Screw
