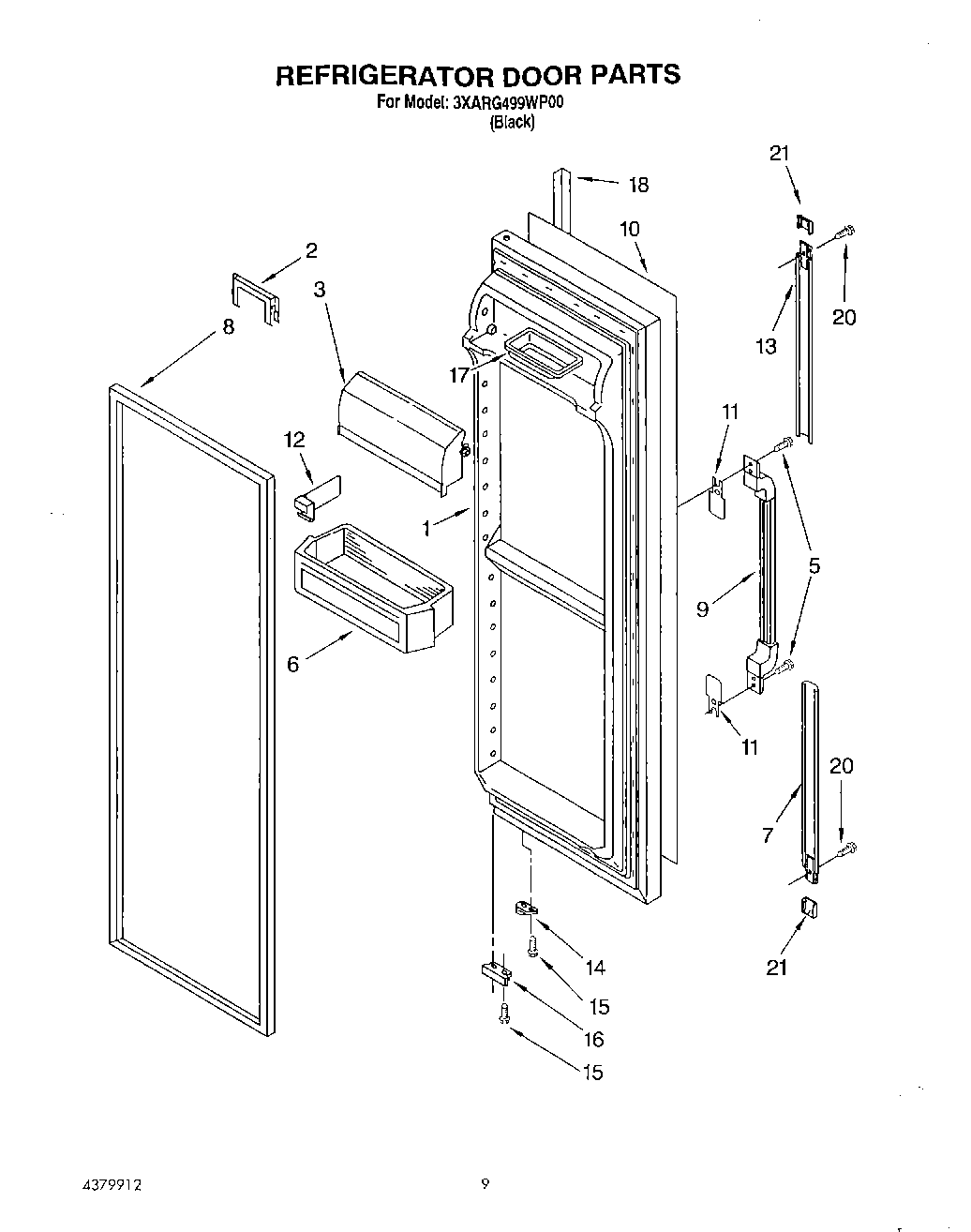

3XARG499WP00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Black)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
5	WP489463 Whirlpool Refrigerator Screw
6	WP2203872 Whirlpool Refrigerator Cantilever Bin
7	Extension, Bottom (Black)
8	2159083 Whirlpool Gasket Door
9	Handle, Center (Black)
10	Panel, Black Glass
11	Shim
12	WPL 2171284
13	Extension, Top (Black)
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
17	Butter, Tray
18	Trim, Door
21	Cover, Endcap (Black)
