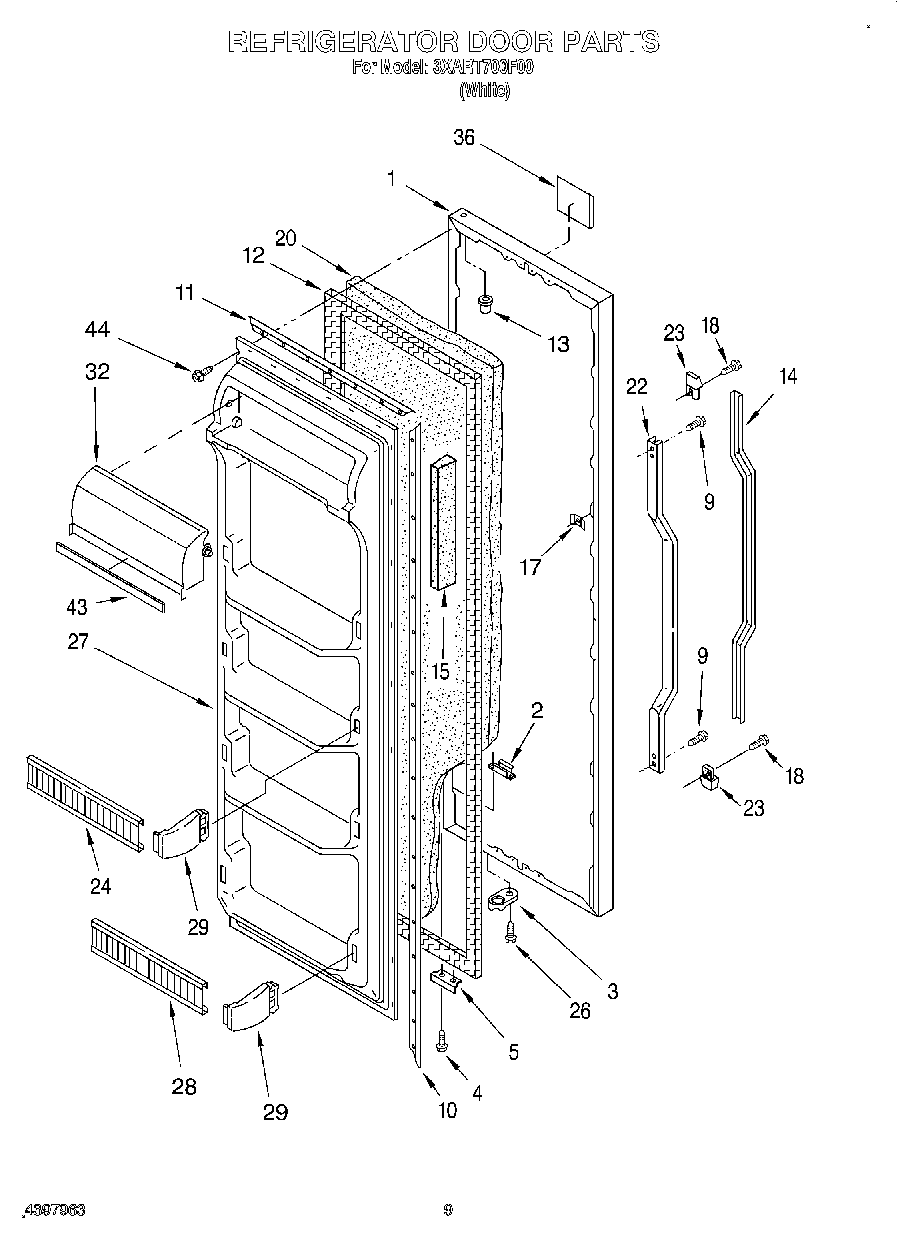

3XART700F00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 20) (White)
2	Tap, Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP999367 Whirlpool Refrigerator Screw
5	Bracket, Door Stop (Chrome)
9	WP489463 Whirlpool Refrigerator Screw
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Insert, Handle
15	Reinforcement, Shelf
17	Screw Anchor (2)
18	WP3400852 Whirlpool Refrigerator Screw
20	WPL 876029
22	Retainer, Insert
23	End Cap, Handle
24	WP2182189 Whirlpool Door Shelf Bar
26	WP3400012 Whirlpool Refrigerator Screw
27	Panel, Interior Door
28	WP2256010 Whirlpool Door Shelf Trim
29	WP2196189 Whirlpool Shelf Retainer Bar
29	WP2196190 Whirlpool Shelf Retainer Bar Support
32	Door, Compartment
36	Nameplate
43	Trim, Door Compartment
44	WP489069 Whirlpool Compactor Screw
