3XART700F02 05 – FREEZER DOOR

3XART700F02 05 – FREEZER DOOR

Written by

in

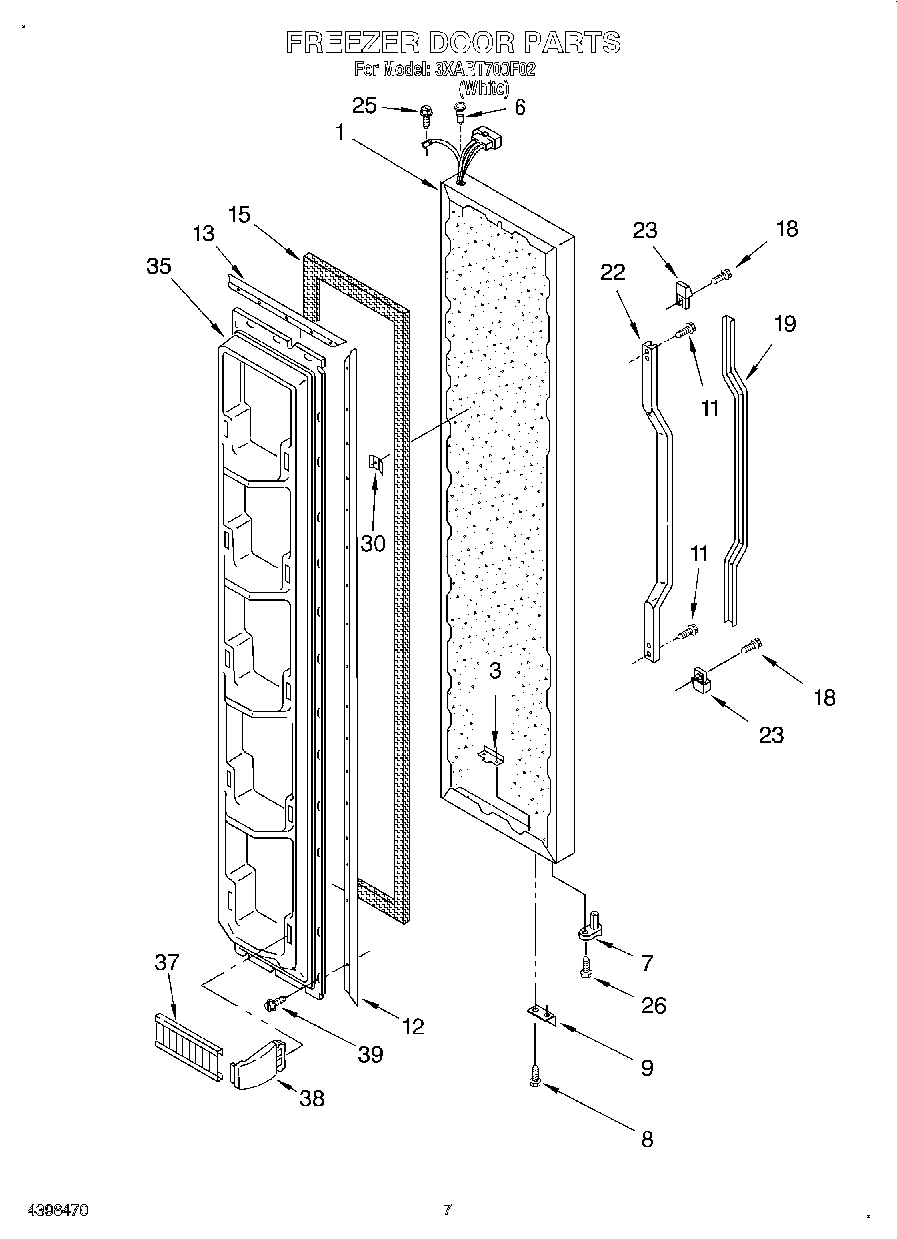

3XART700F02 05 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel
3SCREW PLATE
6WP2182181 Whirlpool Refrigerator Thimble
7WP2182179 Whirlpool Cam Closer
8WP999367 Whirlpool Refrigerator Screw
9Bracket, Door Stop (Chrome)
11WP489463 Whirlpool Refrigerator Screw
12Retainer, Gasket
13Retainer, Gasket
152188405A Whirlpool Refrigerator Door Gasket
18WP3400852 Whirlpool Refrigerator Screw
19Insert, Handle
22Retainer, Insert
23End Cap, Handle
25WP488234 Whirlpool Air Conditioner Screw
26WP3400012 Whirlpool Refrigerator Screw
30Screw Anchor (2)
35Interior, Door Panel
37Trim, Door Shelf
38WP2196100 Whirlpool Shelf Retainer Bar Support
39WP489069 Whirlpool Compactor Screw
