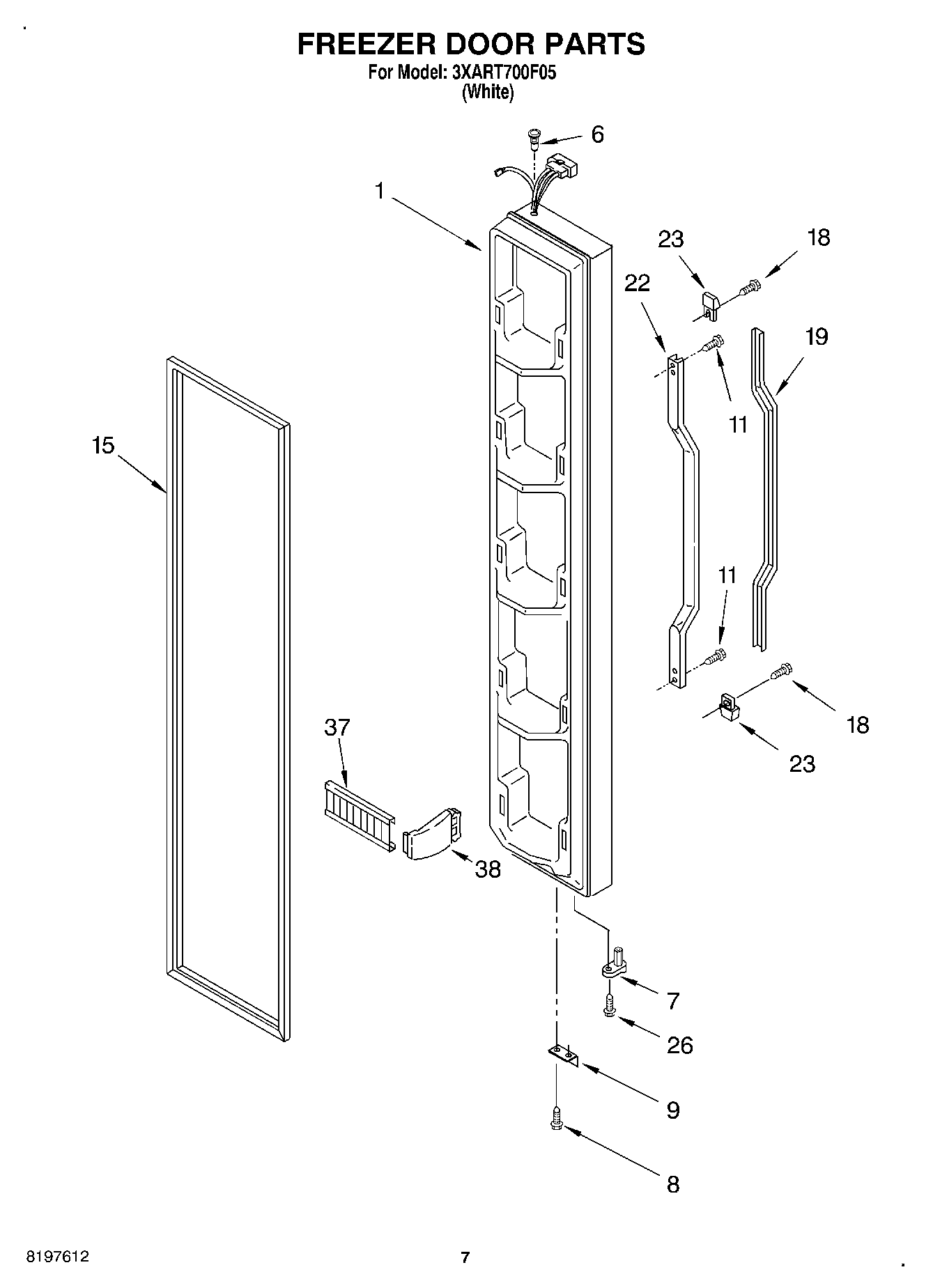

3XART700F05 05 – FREEZER DOOR

3XART700F05 05 – FREEZER DOOR

Written by

in

3XART700F05 05 – FREEZER DOOR

Products

PositionProduct
1Freezer Door
6WP2182181 Whirlpool Refrigerator Thimble
7WP2182179 Whirlpool Cam Closer
8WP489483 Whirlpool Screw
9Bracket, Door Stop (Chrome)
11WP489463 Whirlpool Refrigerator Screw
152159072 Whirlpool Refrigerator FIP Gasket
18WP3400852 Whirlpool Refrigerator Screw
19Insert, Handle
22Retainer, Insert
23End Cap, Handle
26WP3400012 Whirlpool Refrigerator Screw
37Trim, Door Shelf
38WP2195917K Whirlpool Refrigerator Endcap
38ENDCAP
