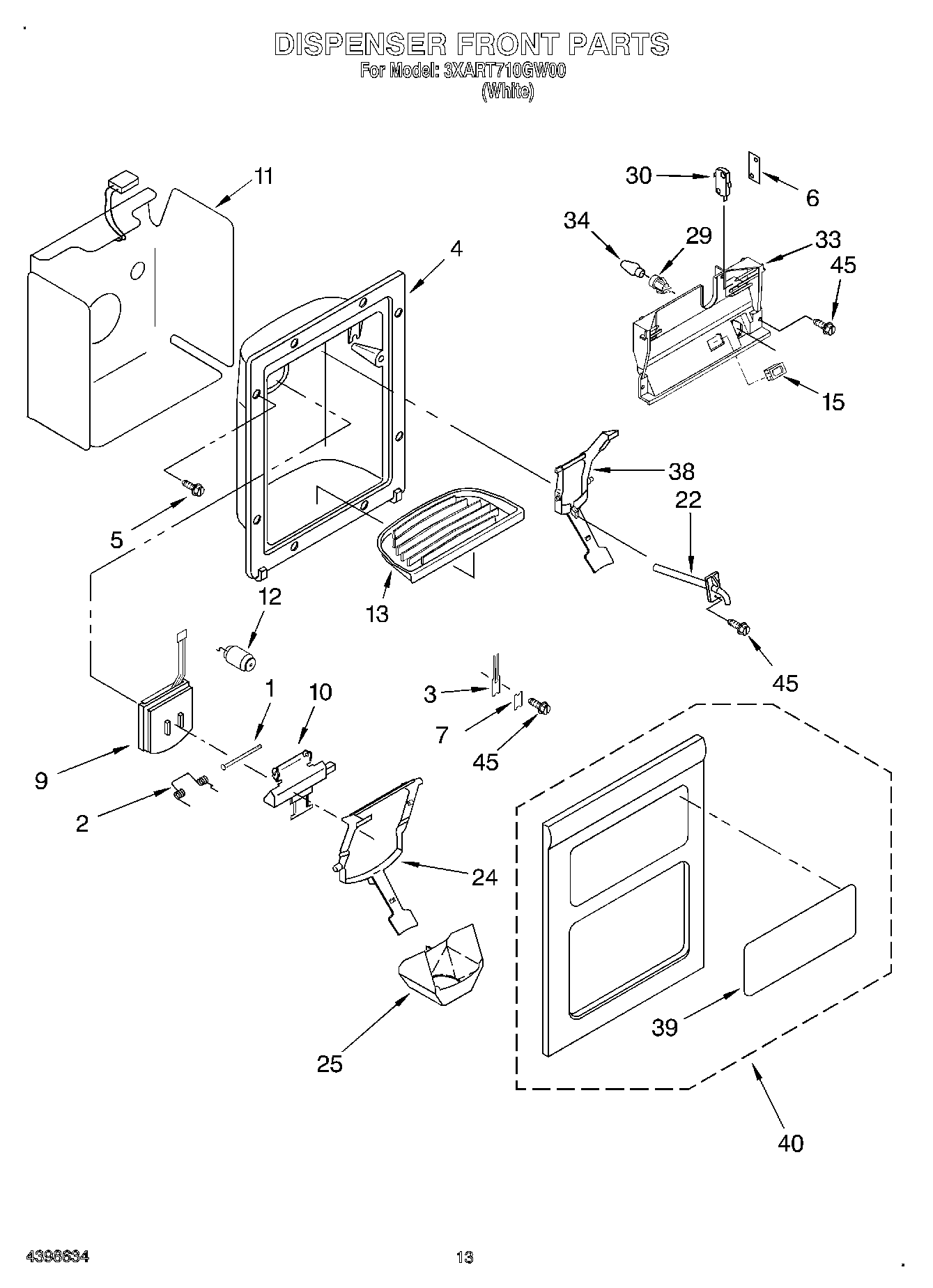

3XART710GW00 07 – DISPENSER FRONT

Products

Position	Product
1	WP2196195 Whirlpool Refrigerator Door Pin
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2194719 Whirlpool Refrigerator Clip
4	Housing, Dispenser
5	WP489069 Whirlpool Compactor Screw
6	Spacer, Switch (2)
7	WP2195051 Whirlpool Refrigerator Clip
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
11	Dispenser Heater
12	Delay Mechanism
13	Grille, Overflow (Black)
15	Switch
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser (Black)
25	WP2180224 Whirlpool Dispenser Funnel Guide
29	2180200 Whirlpool Refrigerator Socket
30	WP2162361 Whirlpool Switch
33	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34	Bulb, Light
38	WPW10152858 Whirlpool Refrigerator Dispenser Arm
39	Overlay, Front Cover
40	Front Cover Assembly (Includes Item 39)
45	WP3400906 Whirlpool Refrigerator Screw
