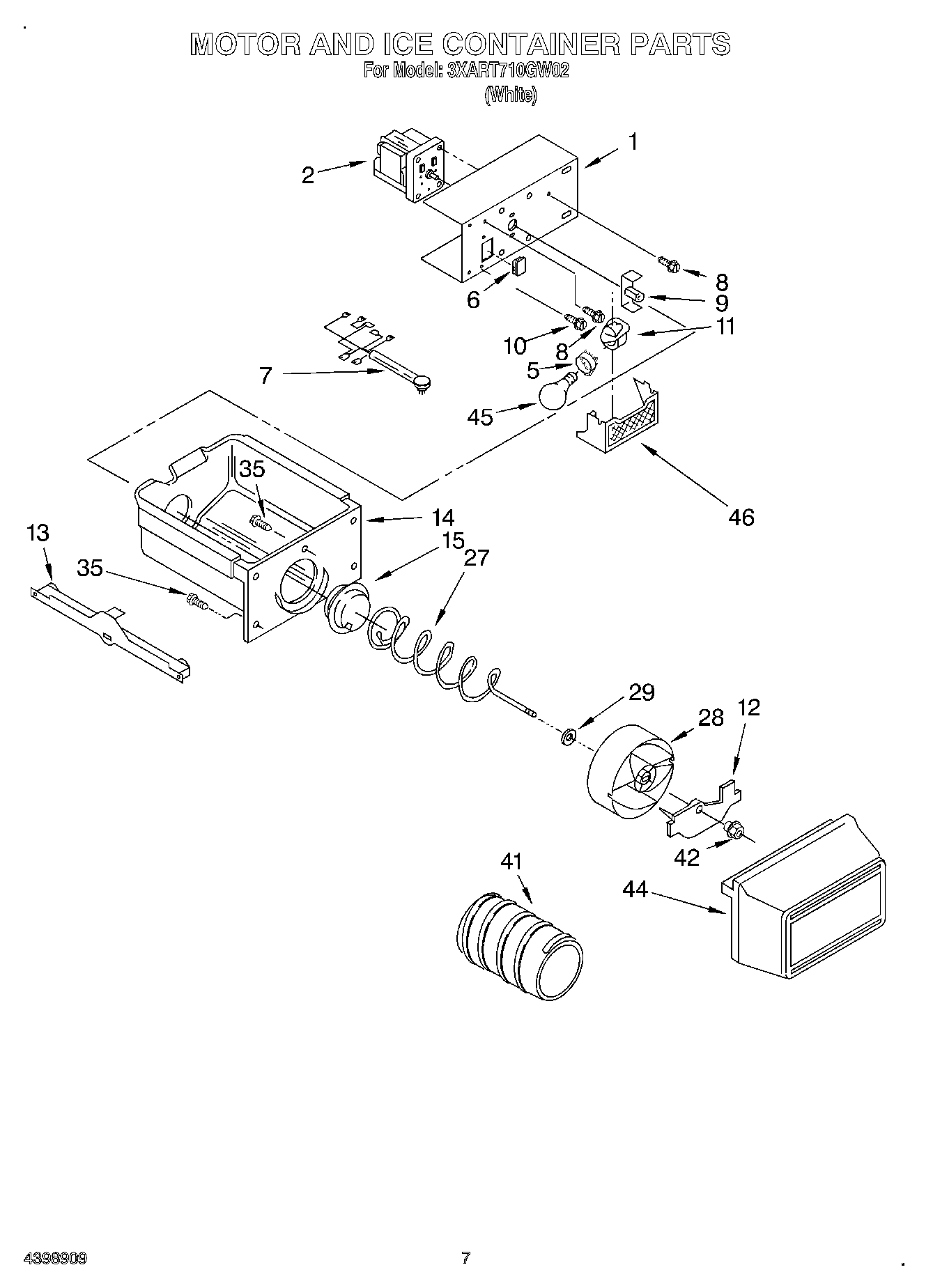

3XART710GW02 04 – MOTOR AND ICE CONTAINER

3XART710GW02 04 – MOTOR AND ICE CONTAINER

Written by

in

3XART710GW02 04 – MOTOR AND ICE CONTAINER

Products

PositionProduct
1Bracket, Motor
2Motor, Dispenser
5WP2175210 Whirlpool Refrigerator Shroud
6Plug, Bracket
7Wiring Assembly, Ice Dispenser
8WP489399 Whirlpool Refrigerator Screw
9COUPLING AUGER MOTOR
10WP489478 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12Floating Baffle
13W10845583 Whirlpool Refrigerator Track
13W10845585 Whirlpool Refrigerator Track
14WP2196090 Whirlpool Refrigerator Container
15W10749708 Whirlpool Refrigerator Coupling
27Conveyor
284388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
29WP3400912 Whirlpool Refrigerator Washer
35WP488787 Whirlpool Refrigerator Screw
414317870 Whirlpool Refrigerator Auger Sleeve
42Nut, Bearing
44Front Cover Ice Container
45WP67002552 Whirlpool Refrigerator Light Bulb
46WP2171706 Whirlpool Refrigerator Light Lens
