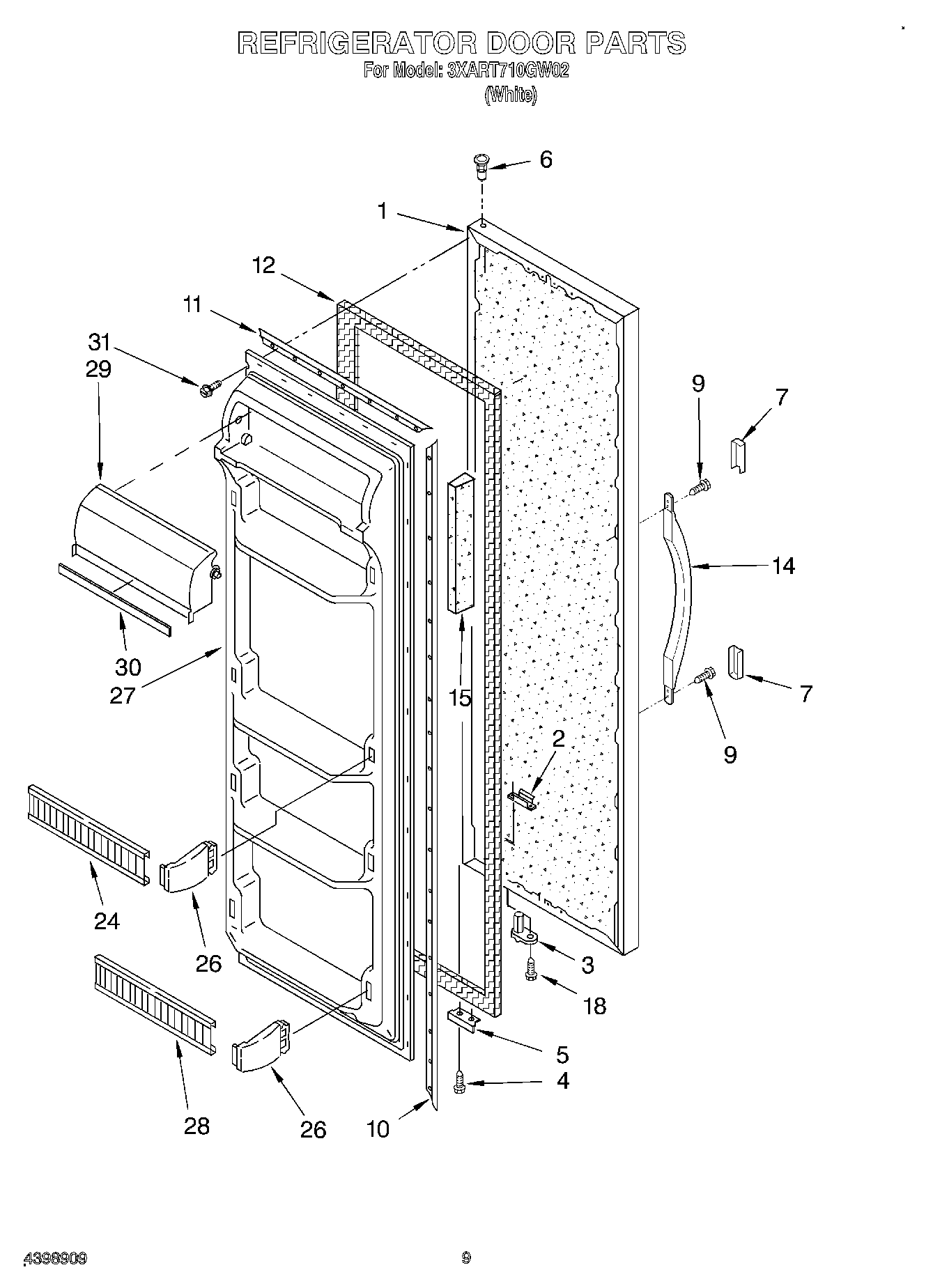

3XART710GW02 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel
2	SCREW PLATE
3	WP2182179 Whirlpool Cam Closer
4	WP489483 Whirlpool Screw
5	Bracket, Door Stop (Chrome)
6	WP2182181 Whirlpool Refrigerator Thimble
7	WP2193353W Whirlpool Refrigerator Trim Handle
9	WP489491 Whirlpool Refrigerator Screw
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
14	Handle, Center (White)
15	Reinforcement, Shelf
18	WP3400012 Whirlpool Refrigerator Screw
24	WP2182189 Whirlpool Door Shelf Bar
26	WP2196190 Whirlpool Shelf Retainer Bar Support
26	WP2196189 Whirlpool Shelf Retainer Bar
27	Interior Door Panel (Also Order Item No.15)
28	WP2256010 Whirlpool Door Shelf Trim
29	Door, Compartment
30	Trim, Door Compartment
31	WP489069 Whirlpool Compactor Screw
