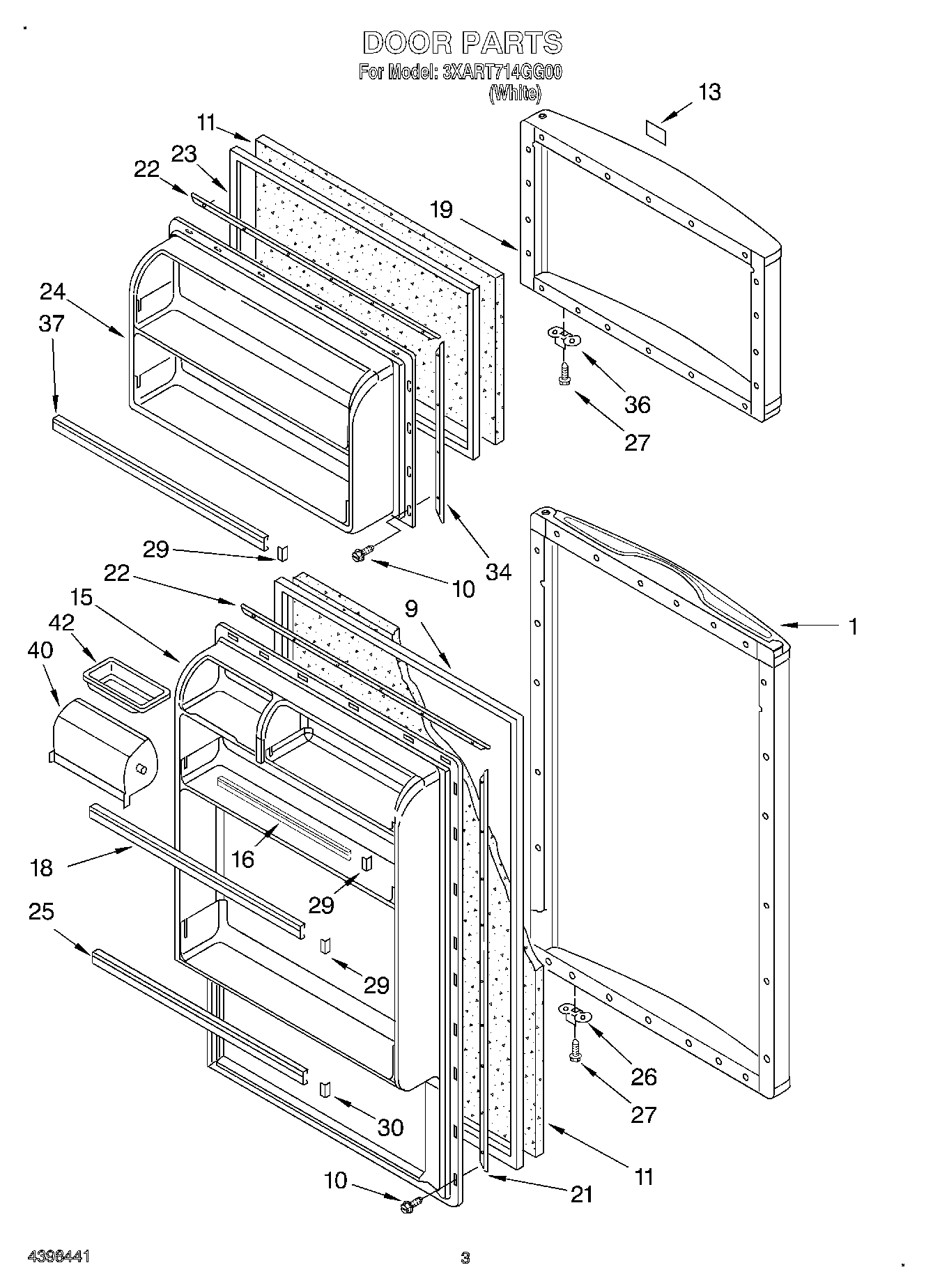

3XART714GG00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 11)
9	2188448A Whirlpool Refrigerator Door Gasket Seal
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
13	Nameplate (White)
15	Panel, Interior Door (Refrigerator)
16	WP2163629 Whirlpool Refrigerator Door Trim
19	Freezer Door Panel (Also Order Item 11)
21	Gasket, Retainer
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
25	Trim, Door (Middle)
26	Stop, Door
27	Screw
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
34	Retainer, Gasket
36	Stop, Door
37	TRIM-DOOR
40	Door Compartment
42	Butter Tray
