3XART716GG01 03 – LINER, LIT/OPTIONAL

3XART716GG01 03 – LINER, LIT/OPTIONAL

Written by

in

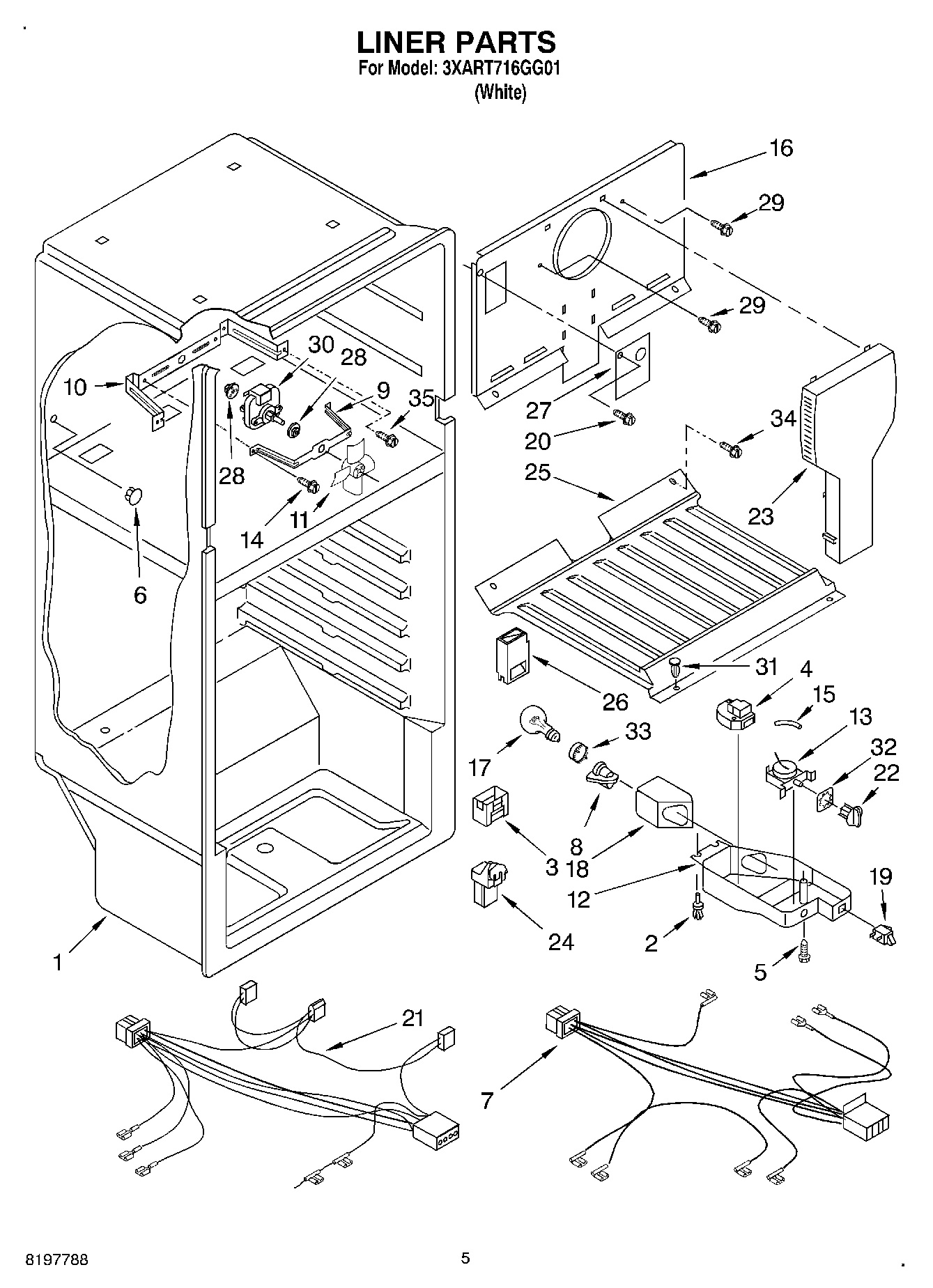

3XART716GG01 03 – LINER, LIT/OPTIONAL

Products

PositionProduct
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
3Cover, Air Diffuser
4WP2188379 Whirlpool Refrigerator Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
6WP941839 Whirlpool Refrigerator Button Plug
72176927 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11Fan Blade
12Control Box
13WPW10511937 Whirlpool Thermostat Control
14WP489399 Whirlpool Refrigerator Screw
15WP2196003 Whirlpool Refrigerator Bar Riser
16Cover, Evaporator
17WP67002552 Whirlpool Refrigerator Light Bulb
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP489442 Whirlpool Refrigerator Screw
21Wiring, Freezer
22WP2202885 Whirlpool Refrigerator Thermal Knob
23Air Tower
24Hood and Foil Assembly
25Freezer Floor
26Air Diffuser
27WP2217784 Whirlpool Refrigerator Cover
28WP2264462 Whirlpool Refrigerator Grommet
29WP489478 Whirlpool Refrigerator Screw
30WP2201215 Whirlpool Refrigerator Evaporator Motor
31WP489115 Whirlpool Refrigerator Rivet
32Retainer
33WP2175210 Whirlpool Refrigerator Shroud
34WP489474 Whirlpool Refrigerator Screw
35TAPE, VINYL (3/4 X 108“)
35Enamel, Black (1 Qt. Uncut)
35WPW10190943 Whirlpool Refrigerator Icemaker
35Almond (Uncut)
35350930 Whirlpool White Spray Paint
35WP72107 Whirlpool Touchup
35WPL 799832
35799344 Whirlpool Refrigerator Paint
3572017 Whirlpool Appliance Touch-Up Paint White
35350956 Whirlpool Spray Assembly
35WPL 799833
35212643 Whirlpool Refrigerator Permagum Sealer
35350942 Whirlpool Spray Paint
35511873 Whirlpool Refrigerator Paint
35Torx Key
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35WP542638 Whirlpool Refrigerator Grease
35WP505587 Whirlpool Refrigerator Sealer
3572032 Whirlpool Touch Up Paint Black
35WP503695 Whirlpool Refrigerator Sealer
35876370 Whirlpool Refrigerator Insulation
35833938 Whirlpool Refrigerator Terminal
35285006 Whirlpool Spray
35606755 Whirlpool Refrigerator Bag
35WPL 876029
