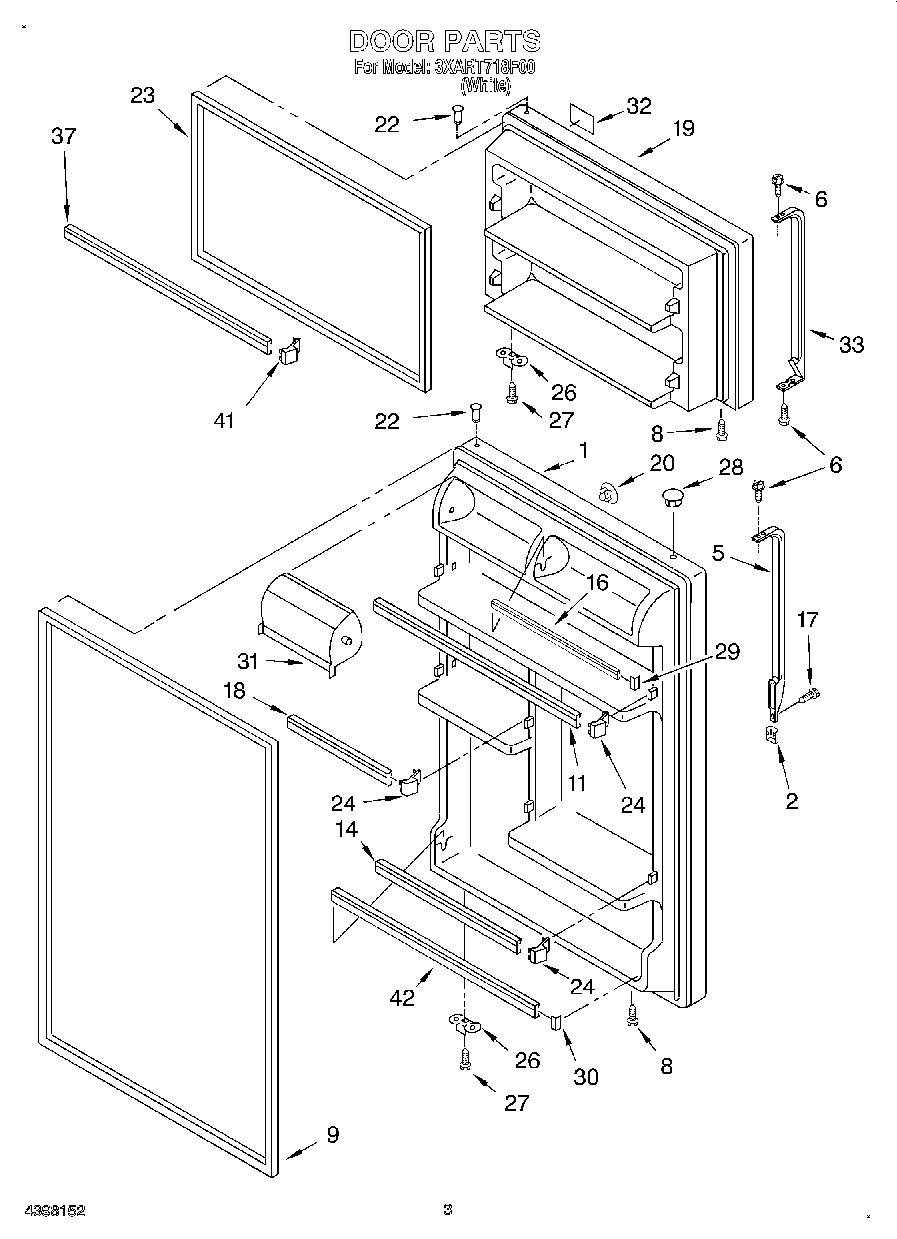

3XART718F00 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (White)
2	WP2193353W Whirlpool Refrigerator Trim Handle
6	WP489357 Whirlpool Recessed Screw
8	WP8281206 Whirlpool Refrigerator Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	Trim, Door Shelf
14	WP2195943 Whirlpool Shelf Retainer Bar
16	TRIM-DOOR
17	WP488729 Whirlpool Refrigerator Door Screw
18	Trim, Door
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
22	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
24	WP2195915 Whirlpool Door Shelf Support
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
32	Nameplate
33	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
37	Trim-Door (2)
41	ENDCAP
42	WPW10421484 Whirlpool Refrigerator Door Trim
100	FeaturePak (Includes 12,20) Also See Ref. & Frz. Dr. Pgs.
