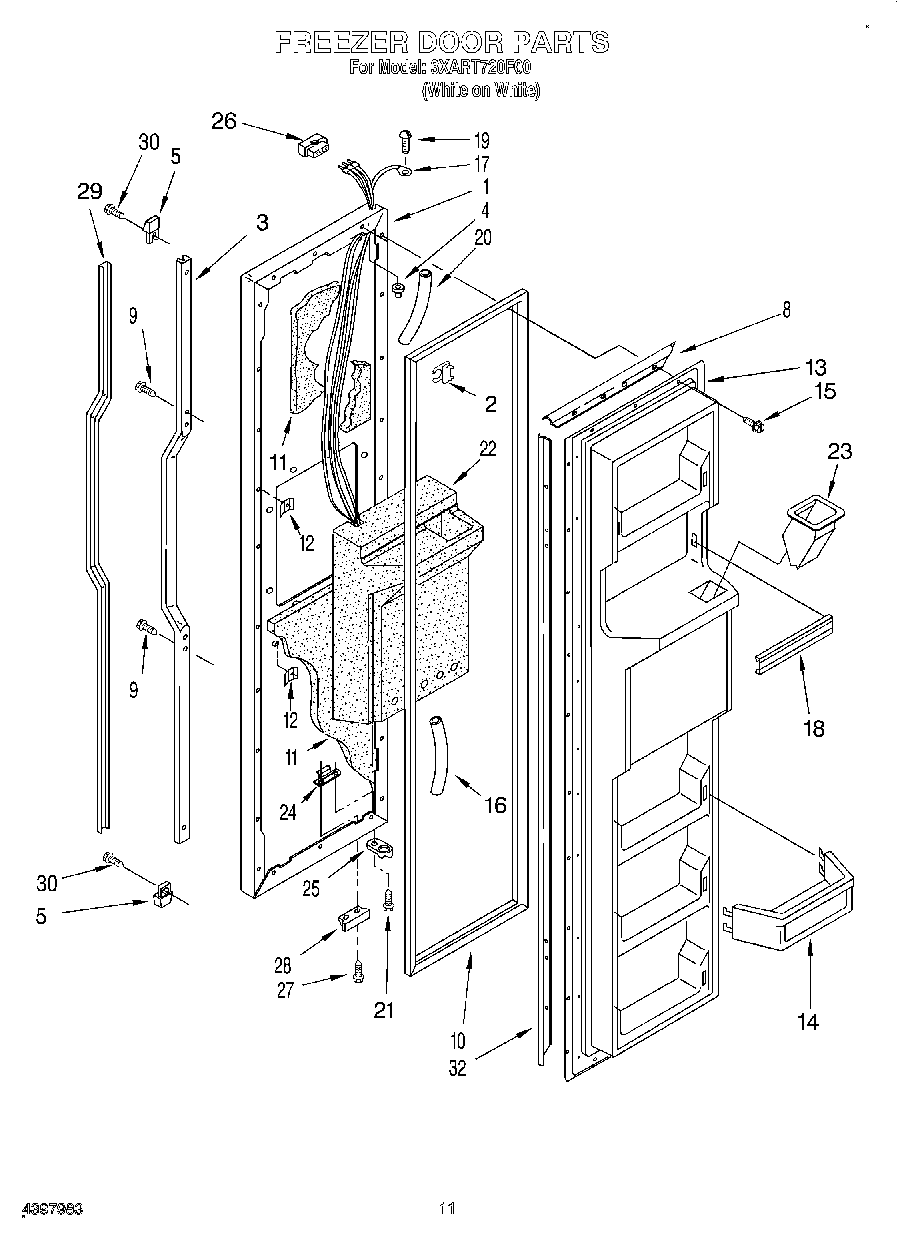

3XART720F00 06 – FREEZER DOORadmin2025-04-26T12:25:29+00:003XART720F00 06 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (White) |
| 2 | Clip |
| 3 | Retainer, Insert |
| 4 | Seal, Hinge Pin |
| 5 | End Cap, Handle |
| 8 | Retainer, Gasket |
| 9 | WP489463 Whirlpool Refrigerator Screw |
| 10 | 2188405A Whirlpool Refrigerator Door Gasket |
| 11 | WPL 876029 |
| 12 | WP939101 Whirlpool Refrigerator Plate |
| 13 | Panel, Interior Door |
| 14 | Trim, Door Shelf (4) |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | Tube, Door Wiring |
| 17 | Wire Harness |
| 18 | TRIM-DOOR |
| 19 | WP489128 Whirlpool Refrigerator Screw |
| 20 | Tube, Door Wiring |
| 21 | WP3400012 Whirlpool Refrigerator Screw |
| 22 | Insulation, Dispenser |
| 23 | Chute, Ice |
| 24 | Tap, Plate |
| 25 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 26 | WP2154473 Whirlpool Refrigerator Connector |
| 27 | WP489483 Whirlpool Screw |
| 28 | Bracket, Door Stop (Chrome) |
| 29 | Insert, Handle |
| 30 | WP3400852 Whirlpool Refrigerator Screw |
| 32 | Retainer, Gasket |
