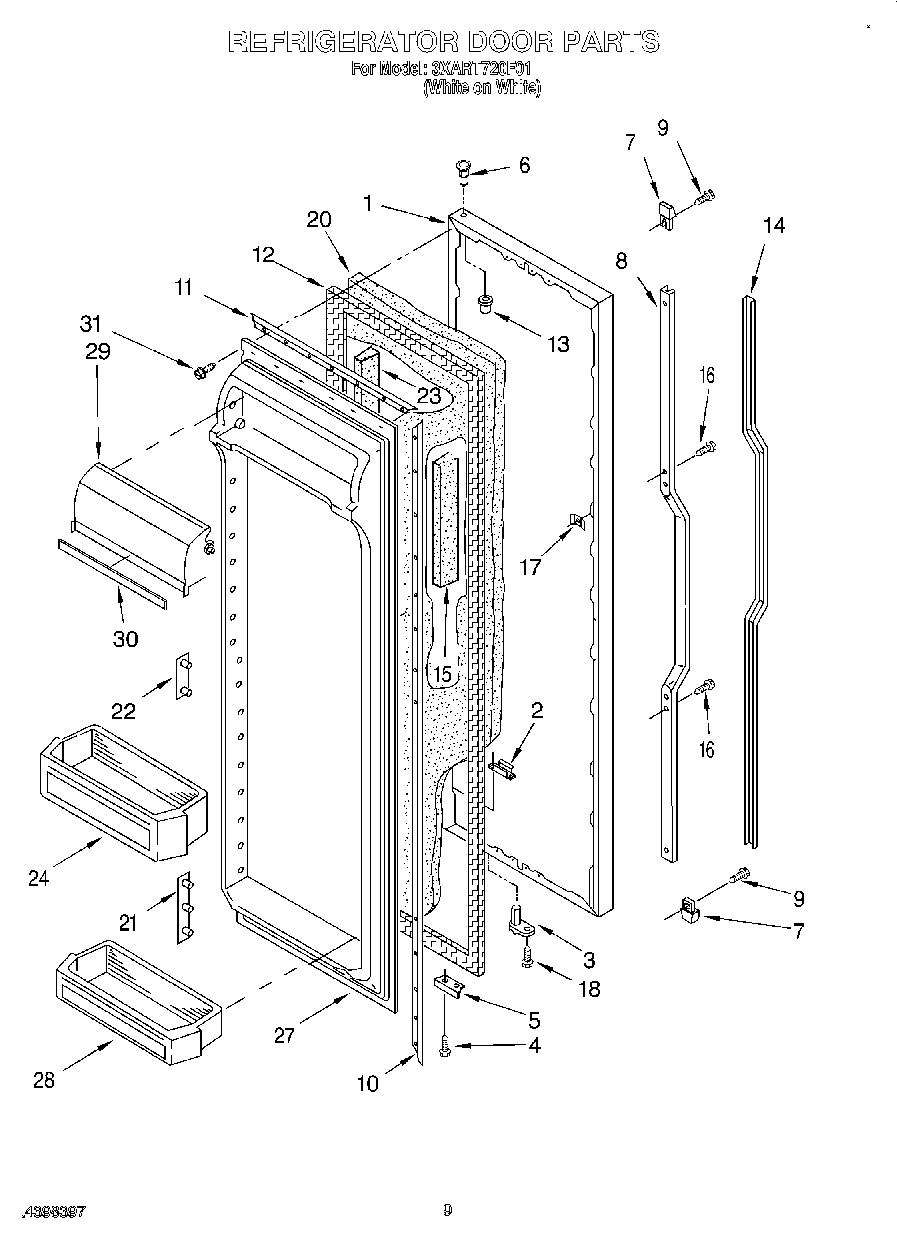

3XART720F01 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel
2	SCREW PLATE
3	WP2182179 Whirlpool Cam Closer
4	WP489483 Whirlpool Screw
5	Bracket, Door Stop (Chrome)
6	WP2182181 Whirlpool Refrigerator Thimble
7	End Cap, Handle
8	Retainer, Insert
9	WP3400852 Whirlpool Refrigerator Screw
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Insert, Handle
15	Door Dike, Handle Side
16	WP489463 Whirlpool Refrigerator Screw
17	Screw Anchor (2)
18	WP3400012 Whirlpool Refrigerator Screw
20	WPL 876029
21	Pin Plate
22	Pin Plate
23	Door Dike, Hinge Side
24	Shelf Bin (2)
27	Interior Door Panel (Also Order Item No.15)
28	Shelf Bin
29	Door, Compartment
30	Trim, Door Compartment
31	WP489069 Whirlpool Compactor Screw
