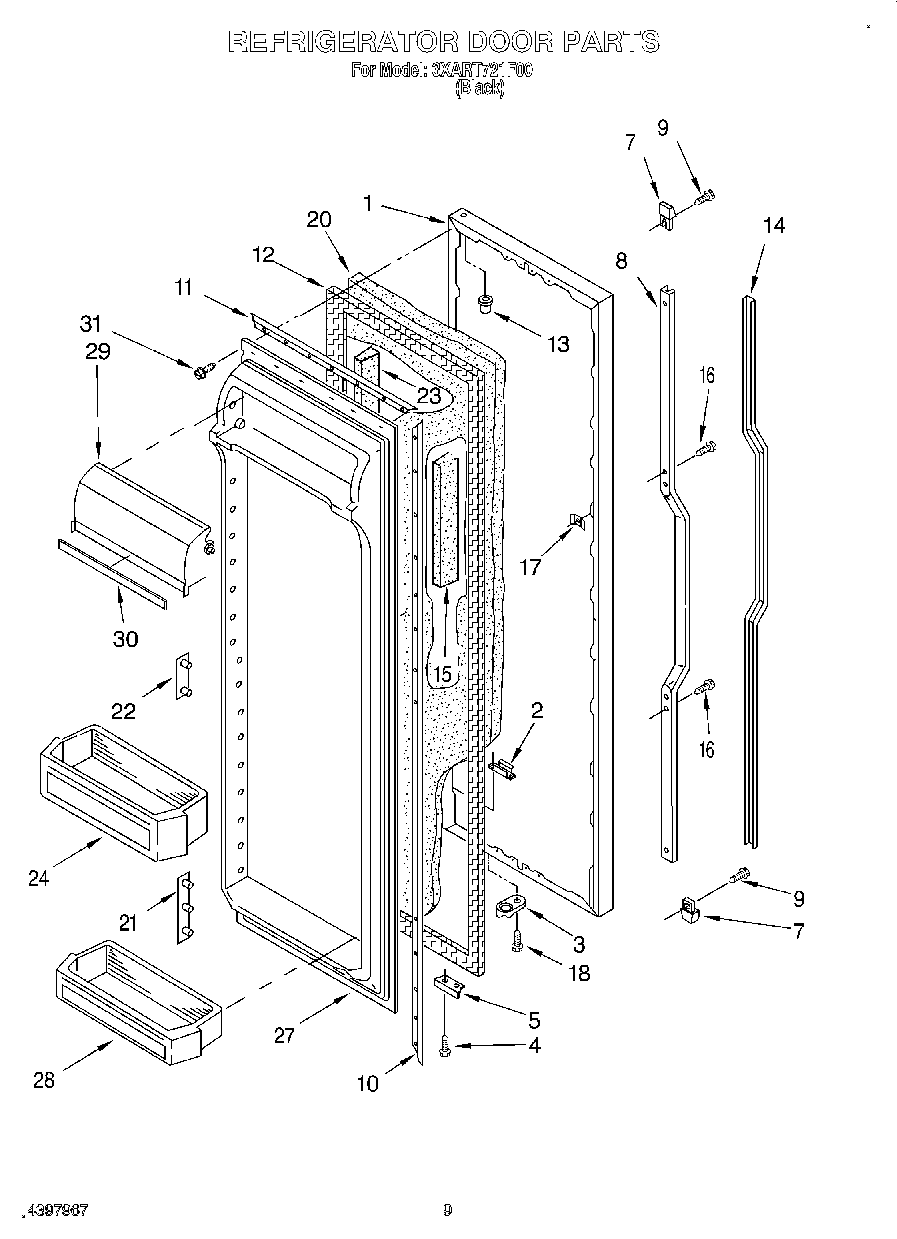

3XART721F00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 20)
2	Tap, Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489483 Whirlpool Screw
5	Bracket, Door Stop (Black)
7	End Cap (Black)
8	Retainer, Insert (Black)
9	WP3400852 Whirlpool Refrigerator Screw
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	Door Gasket, Magnetic
13	Cap, Hinge Sleeve (2)
14	Insert, Handle (Black)
15	Door Dike, Handle Side
16	WP489463 Whirlpool Refrigerator Screw
17	Screw Anchor (2)
18	WP3400012 Whirlpool Refrigerator Screw
20	WPL 876029
21	Pin Plate (8)
22	Pin Plate (6)
23	Door Dike, Hinge Side
24	Shelf Bin (2)
27	Panel, Interior Door
28	Shelf Bin
29	Door, Compartment
30	Trim, Door Compartment
31	WP489069 Whirlpool Compactor Screw
